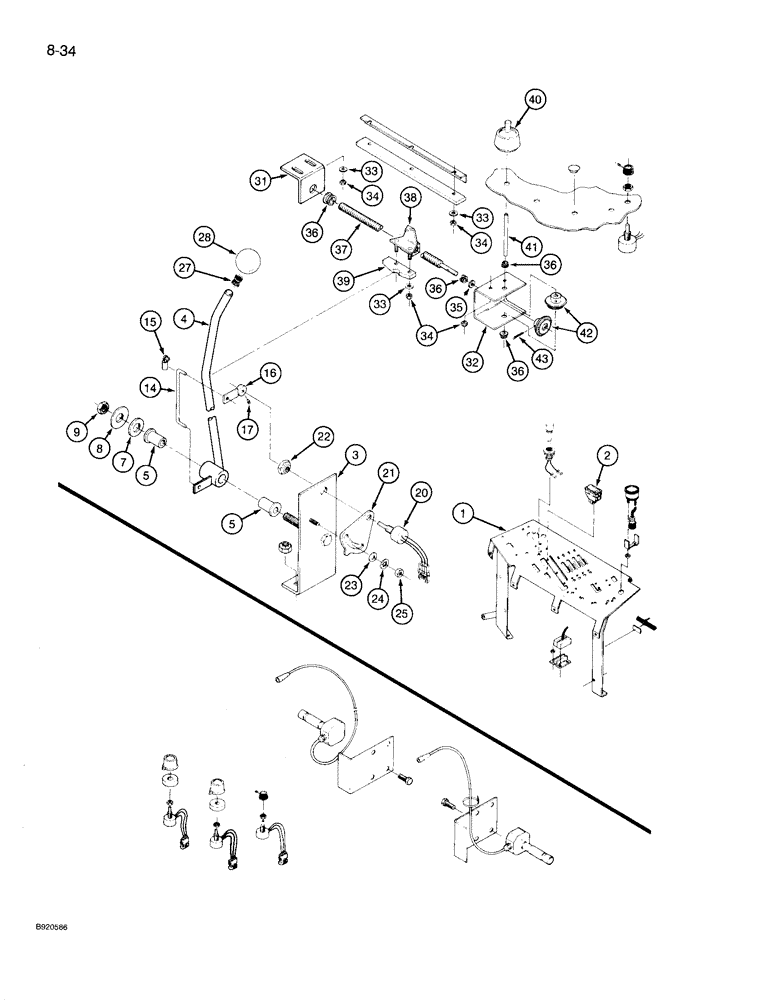

Запчасти Case IH 9230 (8-034) - 3-POINT HITCH CONTROLS, ELECTRONIC CONTROLLED, CONTROL LEVER MOUNTED TO LEVER BRACKET, REF. 3 (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
60-6412T3
BRACKET
PANEL - control console, See Figure 9-078
1шт.
2
1964753C1
SWITCH
- rocker, hitch actuating
1шт.
3
60-6152T1
SUPPORT
BRACKET - mounting, lever
1шт.
4
60-6794T1
LEVER
- control rod, actuating
1шт.
5
90-4367T1
BRONZE BUSHING
BUSHING - pivot
2шт.
7
495-21056
WASHER,1/2"
- flat, 9/16 x 1-3/8 x 3/32 inch
1шт.
8
19-5648
SPRING WASHER
- conical spring, 1/2 inch
1шт.
9
231-1448
NUT,1/2"-13, GB
- hex lock, 1/2 inch NC
1шт.
14
60-2802T1
STEM
Rod, Linkage, Potentiometer Actuating
1шт.
15
60-2404T1
RETAINER
- linkage rod
2шт.
16
60-6172T2
LEVER
ARM ASSEMBLY - actuating, potentiometer, Includes: Ref. 17
1шт.
17
178-801
SET SCREW,Hex Soc, #10-24 x 1/4"
SCREW - set, No. 10 NC x 1/4 inch
1шт.
20
60-6117T1
POTENTIOMETER
Raise and Lower
1шт.
21
60-6118T1
BRACKET
Potentiometer Adjusting
1шт.
22
60-6155T1
NUT
Potentiometer Mounting
1шт.
23
495-11028
WASHER,1/4", SAE
(flat, 9/32 x 5/8 x 1/16") 1/4", SAE
1шт.
24
493-21026
LOCK WASHER,Int Tooth, 1/4"
WASHER - lock, 1/4 inch
1шт.
25
425-104
NUT,1/4"-20, Cl 5
- hex, 1/4 inch NC
1шт.
27
D38662
RING
- retainer, knob
1шт.
28
60-4273T1
BALL KNOB
KNOB - lever
1шт.
31
60-6796T1
SUPPORT
BRACKET - mounting, rod
1шт.
32
60-4757T1
SUPPORT
BRACKET - mounting gear and rod
1шт.
33
495-31022
WASHER,#10
7шт.
34
86632551
NUT,#10-24, GB
NUT, LOCK, #10-24, GB
6шт.
35
19-5924
SPRING WASHER
- spring, 1/4 inch
1шт.
36
19-6129
NYLON BEARING
BEARING - split flanged
4шт.
37
60-6797T1
THREADED ROD
ROD - threaded, depth actuating
1шт.
38
60-3950T1
INDICATOR
- depth
1шт.
39
60-3953T1
LARGE PLATE
TAB - lever retainer
1шт.
40
60-3957T1
BUTTON
KNOB - depth actuating
1шт.
41
60-3949T1
ROD
- gear actuating
1шт.
42
60-4275T1
GEAR, BEVEL
GEAR - matched set, depth actuating
1шт.
43
32-616
COTTER PIN,3/32" x 1"
Pin, Split (Cotter), 3/32" x 1"
2шт.
Выбрано товаров: 33
