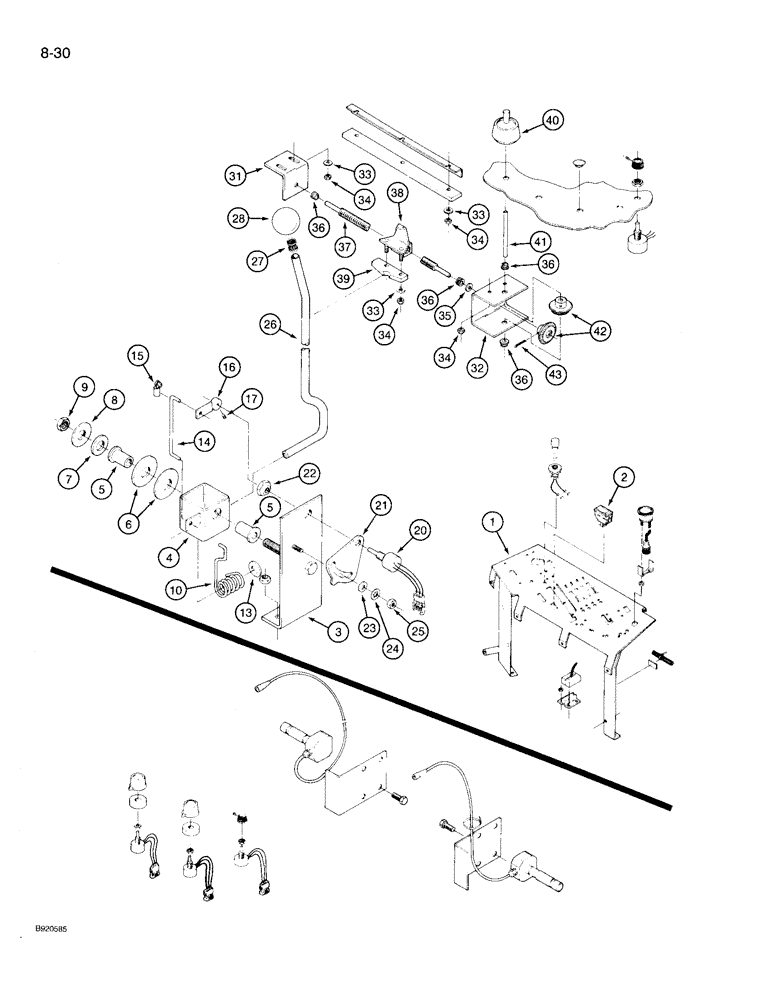

Запчасти Case IH 9230 (8-030) - 3-POINT HITCH CONTROLS, ELECTRONIC CONTROLLED, CONTROL LEVER MOUNTED TO LINKAGE LEVER, REF. 4 (08) - HYDRAULICS

1

60-6412T3

BRACKET

PANEL - control console, See Figure 9-078

1шт.

2

1964753C1

SWITCH

- rocker, hitch actuating

1шт.

3

60-6152T1

SUPPORT

BRACKET - mounting, lever

1шт.

4

60-3941T1

LEVER

Actuating, Linkage

1шт.

5

90-4367T1

BRONZE BUSHING

BUSHING - pivot

2шт.

6

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

7

495-21056

WASHER,1/2"

- flat, 9/16 x 1-3/8 x 3/32 inch

1шт.

8

19-5648

SPRING WASHER

- conical spring, 1/2 inch

1шт.

9

19-653

LOCK NUT

- hex lock, 1/2 inch NC

1шт.

10

60-4294T1

SPRING

- return, lever

1шт.

13

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32") 1/2", SAE

1шт.

14

60-2802T1

STEM

Rod, Linkage, Potentiometer Actuating

1шт.

15

60-2404T1

RETAINER

- linkage rod

2шт.

16

60-6172T2

LEVER

ARM ASSEMBLY - actuating, potentiometer, Includes: Ref. 17

1шт.

17

178-801

SET SCREW,Hex Soc, #10-24 x 1/4"

SCREW - set, No. 10 NC x 1/4 inch

1шт.

20

60-6117T1

POTENTIOMETER

Raise and Lower

1шт.

21

60-6118T1

BRACKET

Potentiometer Adjusting

1шт.

22

60-6155T1

NUT

Potentiometer Mounting

1шт.

23

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

24

493-21026

LOCK WASHER,Int Tooth, 1/4"

WASHER - lock, 1/4 inch

1шт.

25

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.

26

60-3943T1

THREADED ROD

LEVER - control

1шт.

27

D38662

RING

- retainer, knob

1шт.

28

60-4273T1

BALL KNOB

KNOB - lever

1шт.

31

60-4758T1

SUPPORT

BRACKET - mounting, rod

1шт.

32

60-4757T1

SUPPORT

BRACKET - mounting gear and rod

1шт.

33

495-31022

WASHER,#10

7шт.

34

86632551

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

9шт.

35

19-5924

SPRING WASHER

- spring, 1/4 inch

1шт.

36

19-6129

NYLON BEARING

BEARING - flanged, split

4шт.

37

60-3955T1

STEM

ROD - thread, depth actuating

1шт.

38

60-3950T1

INDICATOR

- depth

1шт.

39

60-3953T1

LARGE PLATE

TAB - lever retainer

1шт.

40

60-3957T1

BUTTON

KNOB - depth actuating

1шт.

41

60-3949T1

ROD

- gear actuating

1шт.

42

60-4275T1

GEAR, BEVEL

GEAR - matched set, depth actuating

1шт.

43

32-616

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

2шт.
