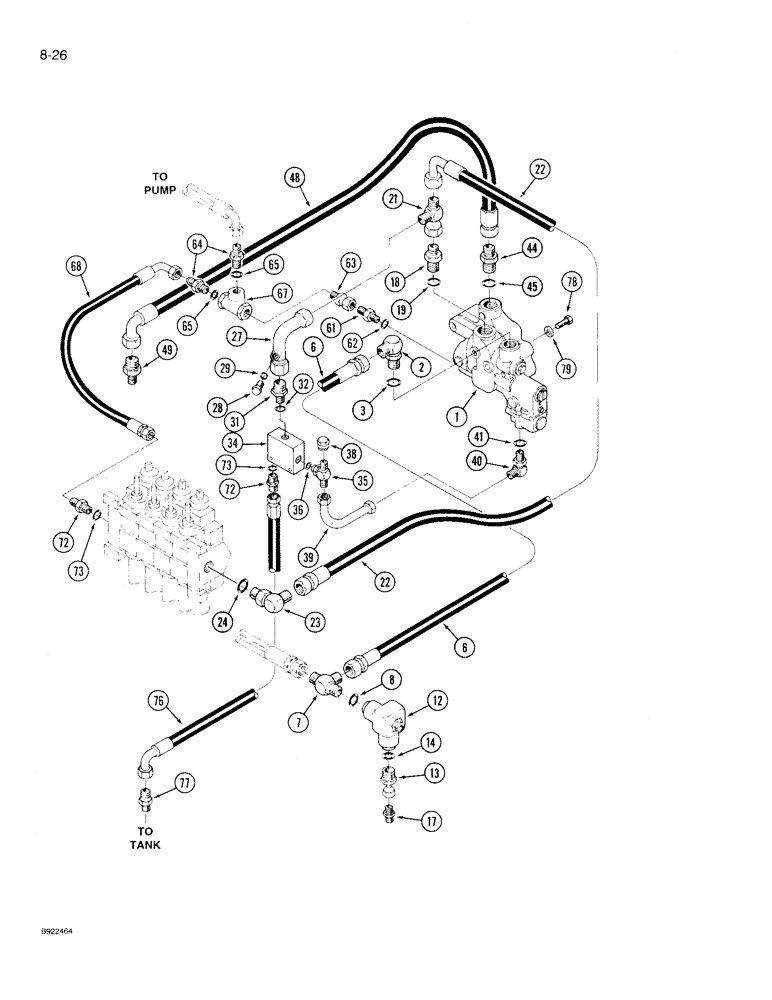

Запчасти Case IH 9230 (8-026) - 3-POINT HITCH HYDRAULICS, ELECTRONIC CONTROLLED (08) - HYDRAULICS

1

50-3321T91

VALVE

ASSEMBLY - three point hitch control, See Figure 8-042

1шт.

2

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- 90 degree adjustable, 7/8-14 inch thread, Incl. Ref. 3

1шт.

3

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

6

31-2841

HOSE

- valve to relief valve, 20 inch long

1шт.

7

218-5241

TEE,7/8" - 14 Male JIC x 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

- adjustable, 7/8-14 inch thread, Includes: Ref. 8

1шт.

8

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

12

50-2291T91

VALVE

ASSEMBLY - relief, See Figure 8-044

1шт.

13

31-117

ADAPTER

- straight, 1/2 PT x 7/8 inch thread, Includes: Ref. 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

17

217-196

FITTING,1/2" - 14 Male NPTF x 1/2" - 14 Male NPTF

CONNECTOR - straight, 1/2 inch PT

1шт.

18

218-5063

HYD CONNECTOR,7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 7/8-14 x 1-1/16-12 inch thread, Includes: Ref. 19

1шт.

62

31-1098

O-RING,5-1, 90 Duro, .414" ID x .072" Thk

1шт.

19

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

21

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- adjustable, 7/8-14 inch thread

1шт.

22

31-2839

HOSE ASSY.

HOSE - valve to control valve

1шт.

23

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

90º, adjustable, 1-1/16-12 inch thread, Incl. Ref. 24

1шт.

24

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

27

50-3186T1

HYD TUBE

TUBE - elbow, valve to pressure reducing valve

1шт.

28

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 29 Hex Hd, 9/16"-18 ORB

1шт.

29

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

31

218-5360

HYD CONNECTOR,7/8"-14, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 7/8-14 x 9/16-18 inch thread, Includes: Ref. 32

1шт.

32

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

34

50-3293T91

VALVE

ASSEMBLY - pressure reducing, See Figure 8-044

1шт.

35

218-5182

TEE,9/16" - 18 Male JIC x 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- adjustable, 9/16-18 inch thread, Includes: Ref. 36

1шт.

36

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

38

218-754

CAP,37 Degree, 9/16"-18

- hex, 9/16-18 inch thread

1шт.

39

50-3111T1

HYD TUBE

TUBE - elbow, pressure reducing, Serial Range: valve-valve

1шт.

40

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree adjustable, 9/16-18 inch thread, Includes: Ref. 41

1шт.

41

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

44

218-5077

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-1/16-12 x 1-5/16-12 inch thread, Incl. Ref. 45

1шт.

45

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 1/8 inch

1шт.

48

31-2713

HOSE

- valve to hydraulic tank, 20 inch long

1шт.

49

218-458

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 1-1/16-12 thread x 1/2 inch PT, Includes: Ref. 62

1шт.

61

31-2205

ADAPTER

- straight, 1/4 x 1/2 inch thread, Includes: Ref. 62

1шт.

63

218-5268

HYD CONNECTOR,7/16" - 20 ORB x 1/4" - 18 NPT

ADAPTER - adjustable, 1/4 PT x 7/16 inch thread, Includes: Ref. 65

1шт.

64

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - straight, 7/16-20 inch thread, Incl. Ref. 65

2шт.

65

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

67

31-1778

VALVE

- shuttle

1шт.

68

31-3035

HOSE ASSY.

HOSE - 20 inch, shuttle valve to control valve

1шт.

72

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

ADAPTER - straight, 9/16-18 inch thread, Incl. Ref. 73

2шт.

73

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

76

31-2459

HOSE

- hydraulic, reducing valve to hydraulic tank

1шт.

77

218-454

HYD CONNECTOR,9/16" - 18 Male JIC x 1/2" - 14 Male NPTF

ADAPTER - straight, 9/16-18 thread x 1/2 inch PT

1шт.

78

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

79

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

35-1898T91

KIT - hitch, electronic controlled three point, for tractors equipped with a PTO system (Machinery item)

1шт.

35-1899T91

KIT - hitch, electronic controlled three point, for tractors not equipped with a PTO system (Machinery item)

1шт.
