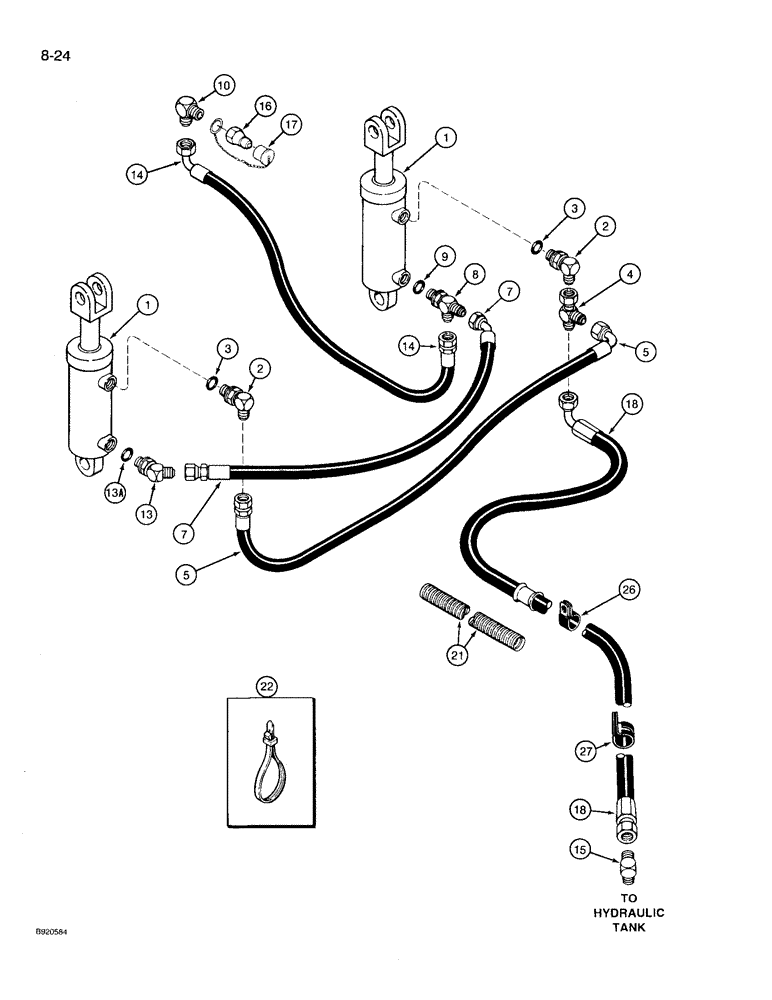

Запчасти Case IH 9230 (8-024) - 3-POINT HITCH HYDRAULICS, MANUAL CONTROLLED HITCH SYSTEM, IF EQUIPPED, P.I.N. JCB0028400 AND AFTER (08) - HYDRAULICS

1

50-3499T91

CYLINDER ASSY.

CYLINDER ASSEMBLY - three point hitch, See Figure 8-040

2шт.

2

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree adjustable, 3/4-16 inch thread, Includes: Ref. 3

2шт.

3

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

4

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- adjustable, 3/4-16 inch thread

1шт.

5

31-3036

HOSE ASSY.

HOSE - 50 inch long, hydraulic, upper cross over

1шт.

7

31-3044

HOSE ASSY.

HOSE - 45 inch long, hydraulic, lower cross over

1шт.

8

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- adjustable, 3/4-16 inch thread, Includes: Ref. 9

1шт.

9

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

10

218-493

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 3/4-16 thread x 1/2 inch PT, Includes: Ref. 13A

1шт.

13

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree adjustable, 3/4-16 inch thread, Incl. Ref 13A

1шт.

13a

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

31-1288

HOSE

- hydraulic, coupler to cylinder (Replaces 124948C1)

1шт.

15

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 7/8-14 thread x 1/2 inch PT

1шт.

16

1-7141

FITTING

CARTRIDGE - coupler, remote

1шт.

17

1-7142

CAP

- coupler dust, rubber

1шт.

18

31-2941

HOSE ASSY.

HOSE - hydraulic, Serial Range: tee-drain

1шт.

21

50-3087T1

CONDUIT

GUARD - hose, flex (Order S119717, and, Serial Range: cut-length)

3шт.

22

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch long

9шт.

26

308576R1

CLAMP

- retaining

1шт.

27

31-1776

MOUNTING CLIP

CLAMP - retaining

1шт.

35-1895T91

KIT - hitch, manual three point, for tractors equipped with a PTO system, (Machinery item)

1шт.

35-1896T91

KIT - hitch, manual three point, for tractors not equipped with a PTO system, (Machinery item)

1шт.
