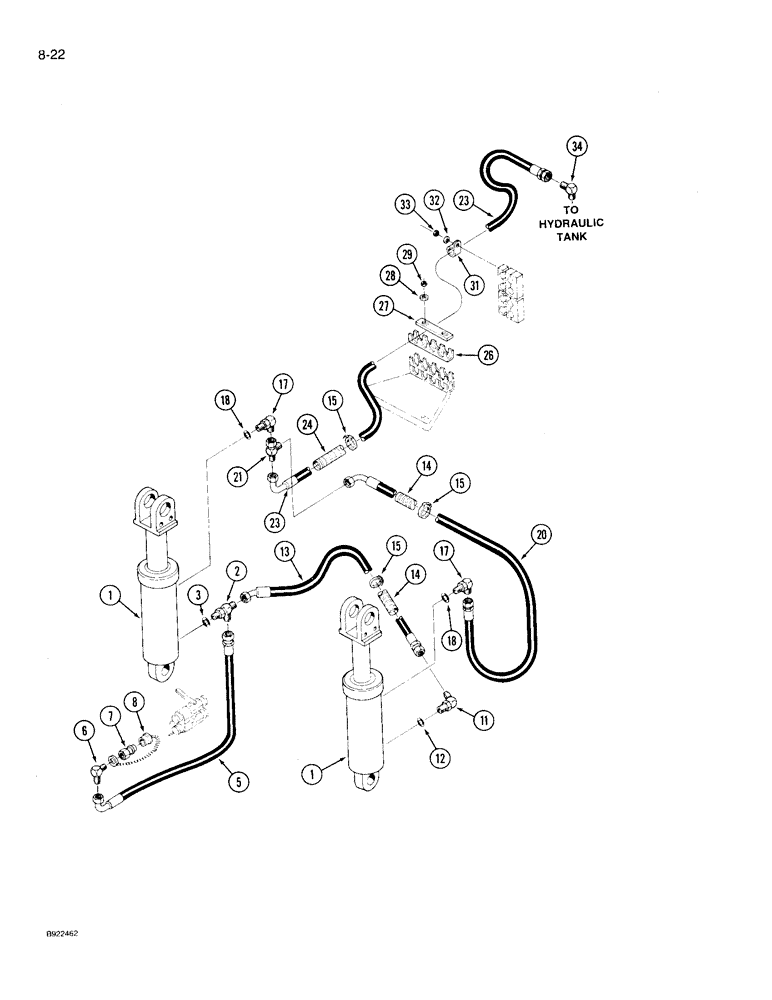

Запчасти Case IH 9230 (8-022) - 3-POINT HITCH HYDRAULICS, MANUAL CONTROLLED HITCH SYSTEM, IF EQUIPPED, PRIOR TO P.I.N. JCB0028400 (08) - HYDRAULICS

1

50-2441T91

CYLINDER

ASSEMBLY - three point hitch, See Figure 8-038

2шт.

2

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- adjustable, 3/4 inch thread, Includes: Ref. 3

1шт.

3

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

1шт.

5

124948C1

HYDRAULIC HOSE

HOSE - cylinder to coupler, 40 inch long

1шт.

6

31-321

ELBOW,90 Degree, 3/4"-16, 37 Degree x 1/2"-14, NPTF

- 90 degree, 1/2 inch PT x 3/4 inch thread

1шт.

7

1-7141

FITTING

CARTRIDGE - coupler, remote

1шт.

8

1-7142

CAP

- dust, coupler, rubber

1шт.

11

218-5136

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 45 degree adjustable, 3/4-16 inch thread, Incl. Ref 12

1шт.

12

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

1шт.

13

31-3044

HOSE ASSY.

HOSE - 45 inch long, Serial Range: cylinder-cylinder

1шт.

14

50-2905T1

CONDUIT

GUARD - hose, protective, 45 inch (Order S119717 and, Serial Range: cut-length)

2шт.

15

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - ny1on

9шт.

17

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree adjustable, 3/4-16 inch thread, Includes: Ref. 18

2шт.

18

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

2шт.

20

31-3036

HOSE ASSY.

HOSE - 50 inch long, Serial Range: cylinder-cylinder

1шт.

21

218-845

TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run

- adjustable, 3/4-16 inch thread

1шт.

23

31-2941

HOSE ASSY.

HOSE -, Serial Range: cylinder-tank

1шт.

24

50-3087T1

CONDUIT

GUARD - hose, protective, 59 inch (Order S119717 and, Serial Range: cut-length)

1шт.

26

50-3339T1

SHIN

CLAMP - hose

1шт.

27

50-3340T1

LARGE PLATE

PLATE - clamp

1шт.

28

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

29

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

31

31-1776

MOUNTING CLIP

CLAMP - hose

1шт.

32

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

1шт.

33

425-106

NUT,3/8"-16, Cl 5

1шт.

34

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 7/8-14 thread x 1/2 inch PT

1шт.
