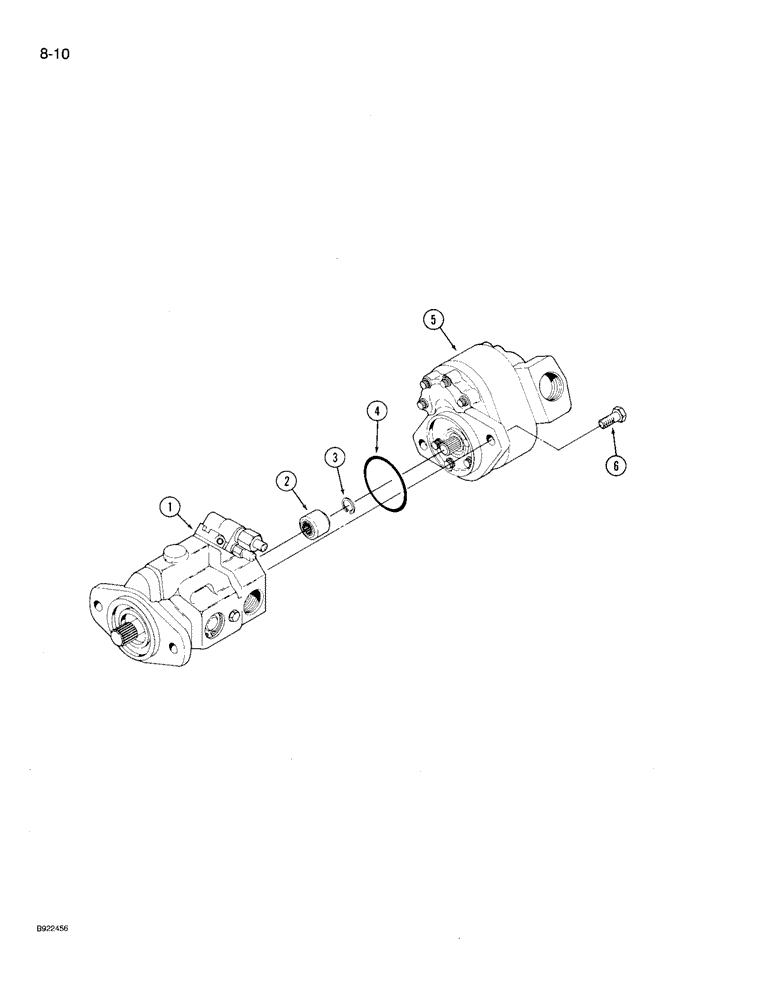

Запчасти Case IH 9230 (8-010) - HYDRAULIC TANDEM PUMP ASSEMBLY (08) - HYDRAULICS

50-3223T91

PUMP, HYDRAULIC

PUMP ASSEMBLY - tandem, piston and gear, not available (Order components), Includes: Ref. 1 - 6

1шт.

1

50-3274T91

PUMP, HYDRAULIC

PUMP ASSEMBLY - piston, See Figures 8-012 and 8-014

1шт.

2

50-2663T1

COUPLING

- drive, pump

1шт.

3

D66349

RING, SNAP

RING - snap, retaining

1шт.

4

D41420

O-RING,0.07" Thk x 3.989" ID, -45, Cl 5, 75 Duro

RING - seal

1шт.

5

50-2662T91

PUMP, HYDRAULIC

PUMP ASSEMBLY - gear, See Figure 8-016

1шт.

6

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.
