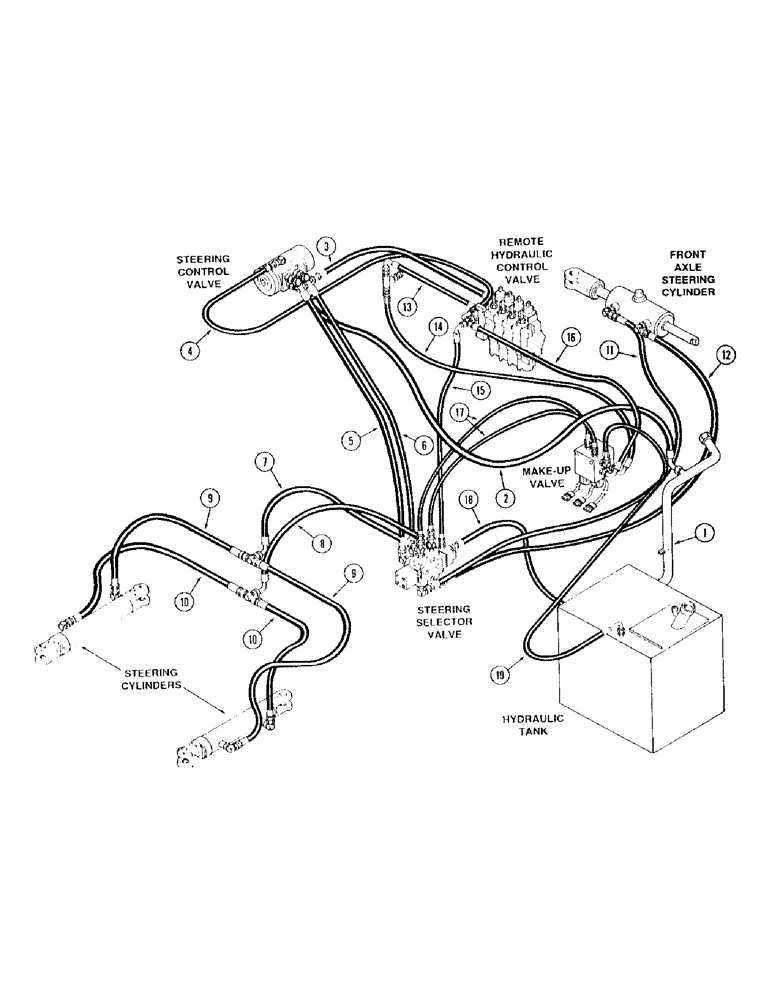

Запчасти Case IH 9230 (1-020) - PICTORIAL INDEX, STEERING SYSTEM HYDRAULICS, WITH STEERABLE AXLE (00) - PICTORIAL INDEX

1

Hydraulic Return Tube, Page 8-3

1шт.

2

Steering Drain Hose, Page 5-11

1шт.

3

Steering Supply Hose, Page 5-11

1шт.

4

Steering Pressure Sensing Hose, Page 5-11

1шт.

5

Left Turn Steering Hose, Page 5-23

1шт.

6

Right Turn Steering Hose, Page 5-23

1шт.

7

Left Turn Steering Hose, Page 5-23

1шт.

8

Right Turn Steering Hose, Page 5-23

1шт.

9

Left Turn Steering Hose, Page 5-13

1шт.

10

Right Turn Steering Hose, Page 5-13

1шт.

11

Left Turn Steering Hose, Page 5-23

1шт.

12

Right Turn Steering Hose, Page 5-23

1шт.

13

Make Up Valve Sensing Hose, Page 5-25

1шт.

14

Make Up Valve Sensing Hose, Page 5-25

1шт.

15

Selector Valve Sensing Hose, Page 5-23

1шт.

16

Make Up Valve Pressure Hose, Page 5-25

1шт.

17

Make Up Valve to Selector Valve Hose, Page 5-23

1шт.

18

Selector Valve Drain Hose, Page 5-23

1шт.

19

Make Up Valve Drain Hose, Page 5-25

1шт.
