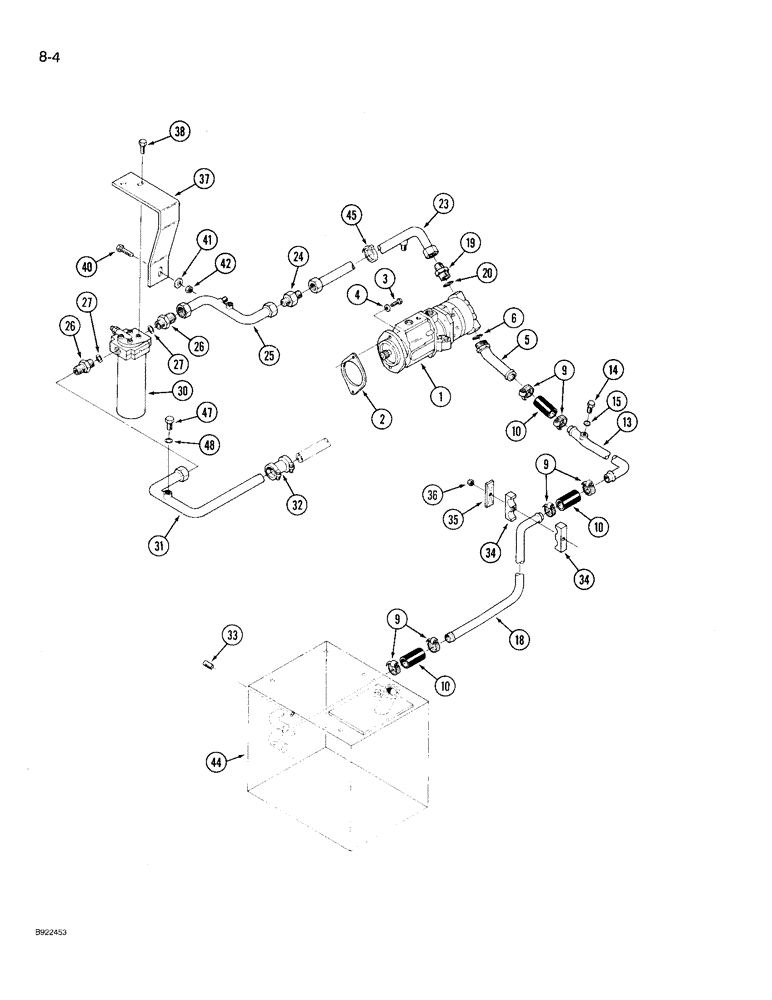

Запчасти Case IH 9230 (8-004) - HYDRAULIC SYSTEM, PUMP TO FILTER (08) - HYDRAULICS

1

50-3223T91

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic tandem, order components, See Figure 8-010

1шт.

2

18-1176

GASKET

- mounting, pump

1шт.

3

326-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

2шт.

4

496-11053

WASHER,17/32" x 1 1/16" x .095", HDN

2шт.

5

31-2529

TUBE

ELBOW - 45 degree adjustable, 1-5/8 x 1-1/2 inch thread, Includes: Ref. 6

1шт.

6

31-1101

O-RING,20-1, 90 Duro, 1.475" ID x .116" Thk

- 1-1/2 x 1/8 inch

1шт.

9

31-1283

MOUNTING CLIP

CLAMP - hose, 1-1/4 to 2-5/8 inch

6шт.

10

1-4571

HOSE

- suction, 1-1/2 x 4 inch (Order 1-4482T1 and, Serial Range: cut-length)

3шт.

13

90-6667T1

TUBE,1.5" OD x 13.06", 4.84" L

- pump to tube

1шт.

14

9672438

PLUG,7/16" - 20 ORB

Incl. Ref. 15 Hex Hd, 7/16"-20 ORB

1шт.

15

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

18

90-6666T2

HYD TUBE,1.5" OD x 27.29" L

TUBE ASSEMBLY - hydraulic, tank (Replaces 90-6666T1)

1шт.

19

218-5038

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-1/16" - 12 Male ORB

ADAPTER - straight, 1-5/8-12 x 1-1/16-12 inch thread, Includes: Ref. 20

1шт.

20

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

- 59/64 ID x 7/8 inch

1шт.

23

50-2877T1

TUBE

- pump to check valve

1шт.

24

50-2565T1

VALVE

- check

1шт.

25

50-3250T1

HYD TUBE

TUBE - check, Serial Range: valve-filter

1шт.

26

218-5039

HYD CONNECTOR,1-5/8" - 12 Male JIC x 1-5/16" - 12 Male ORB

ADAPTER - straight, 1-5/8-12 x 1-5/16-12 inch thread, Includes: Ref. 27

2шт.

27

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 1/8 inch

2шт.

30

D131293

FILTER

ASSEMBLY - hydraulic oil, See Figure 8-020

1шт.

31

50-3251T1

HYD TUBE

TUBE - filter to tube joint

1шт.

32

50-2782T91

TUBE

JOINT ASSEMBLY - tube, See Figure 8-046

1шт.

33

31-35

PLUG

- square head pipe, 1/2 inch PT

1шт.

34

50-2965T1

HOSE CLAMP

CLAMP - tube, split, halves

2шт.

35

50-2668T1

PLATE

COVER - clamp

1шт.

36

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

1шт.

37

50-3119T1

BRACKET

MOUNT - filter

1шт.

38

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

2шт.

40

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

1шт.

41

495-21069

WASHER,5/8"

- flat, 11/16 x 1-3/4 x 9/64 inch

1шт.

42

425-1010

NUT,5/8"-11, G5

1шт.

44

50-3054T2

TANK, HYDRAULIC OIL

TANK - hydraulic oil, See Figure 8-018

1шт.

45

50-2037T1

STRAP

- nylon

1шт.

47

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 48 Hex Hd, 9/16"-18 ORB

1шт.

48

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
