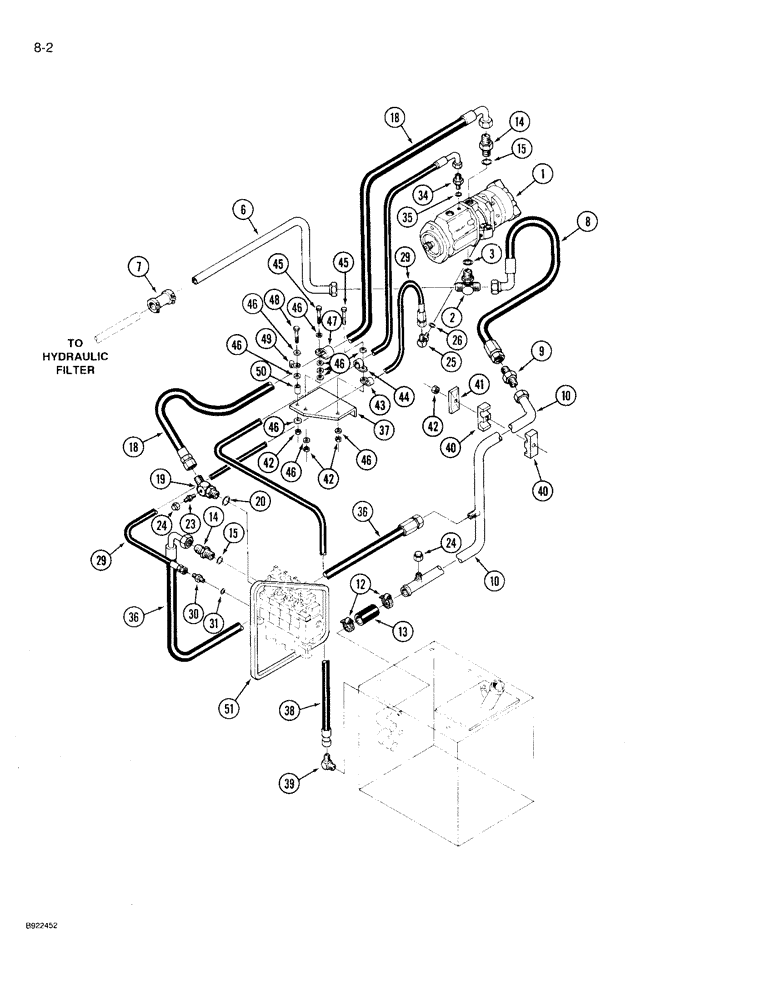

Запчасти Case IH 9230 (8-002) - HYDRAULIC SYSTEM, PUMP TO CONTROL VALVE (08) - HYDRAULICS

1

50-3223T91

PUMP, HYDRAULIC

PUMP ASSEMBLY - hydraulic tandem, order components, See Figure 8-010

1шт.

2

9411123

TEE,1 7/8"-12, 37 Degree x 1 7/8"-12, O-Ring Br

- adjustable, 1-1/4 inch OD tube, Includes: Ref. 3

1шт.

3

31-1101

O-RING,20-1, 90 Duro, 1.475" ID x .116" Thk

- 1-1/2 x 1/8 inch

1шт.

6

50-2969T1

TUBE

- pump to tube joint

1шт.

7

50-2782T91

TUBE

JOINT ASSEMBLY - tube, See Figure 8-046

1шт.

8

31-2968

HOSE ASSY.

HOSE - pump to check valve, 28 inch long

1шт.

9

50-2565T1

VALVE

- check

1шт.

10

50-3252T1

HYD TUBE

TUBE - check valve to hydraulic tank

1шт.

12

31-1283

MOUNTING CLIP

CLAMP - hose, 1-1/4 to 2-5/8 inch

2шт.

13

1-4571

HOSE

- suction, 1-1/2 x 4 inch long (Order hose 1-4482T1 and, Serial Range: cut-length)

1шт.

14

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

Adapter - straight, 1-5/16-12 inch thread, Incl. Ref. 15

2шт.

15

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 1/8 inch

2шт.

18

31-2699

HOSE,25.4mm ID x 1321mm L

- pump to control valve, 52 inch long

1шт.

19

31-2695

ELBOW

- 45 degree adjustable, Include: ReEf. 20

1шт.

20

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 1/8 inch

1шт.

23

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 7/16-20 thread x 1/8 inch PT

1шт.

24

218-752

CAP,37 Degree, 7/16"-20

Hex 37º, 7/16"-20

2шт.

25

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree adjustable, 7/16-20 inch thread, Includes: Ref. 26

1шт.

26

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

29

31-3029

HOSE ASSY.

HOSE - 63 inch long, pump to control valve

1шт.

30

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

CONNECTOR - straight, 3/8 to 1/4 inch long, Incl. Ref. 31

1шт.

31

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

34

218-5360

HYD CONNECTOR,7/8"-14, 37 Degree x 9/16"-18, O-Ring

ADAPTER - straight, 7/8-14 x 9/16-18 inch thread, Includes: Ref. 35

1шт.

35

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

36

31-1875

HOSE ASSY.

HOSE - control valve to tube, 36 inch long

1шт.

37

50-2953T1

BRACKET

- mounting, clamp

1шт.

38

31-2698

HOSE ASSY.

HOSE - pump to hydraulic tank, 64 inch long

1шт.

39

218-485

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1/2" - 14 Male NPTF

- 90 degree, 7/8-14 thread x 1/2 inch PT

1шт.

40

50-2965T1

HOSE CLAMP

CLAMP - tube, split, halves

2шт.

41

50-2668T1

PLATE

COVER - clamp

1шт.

42

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

4шт.

43

31-1776

MOUNTING CLIP

CLAMP - hose

1шт.

44

T50104

CLAMP

- hose

1шт.

45

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

46

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

10шт.

47

31-1349

MOUNTING CLIP

CLAMP - hose

1шт.

48

413-528

BOLT,Hex, 5/16" - 18 x 1-3/4", Gr 5

- hex, 5/16 NC x 1-3/4 inch

1шт.

49

31-1862

CLAMP

- tube

1шт.

50

50-2955T1

SPACER

- standoff

1шт.

51

50-3373T1

GROMMET

- edge protector, 41 inch long (Order 31-2404 and, Serial Range: cut-length)

1шт.
