(7-022) - MASTER CYLINDER ASSEMBLY, SPECIAL - IF EQUIPPED

Запчасти Case IH 9230 (7-022) - MASTER CYLINDER ASSEMBLY, SPECIAL - IF EQUIPPED (07) - BRAKES

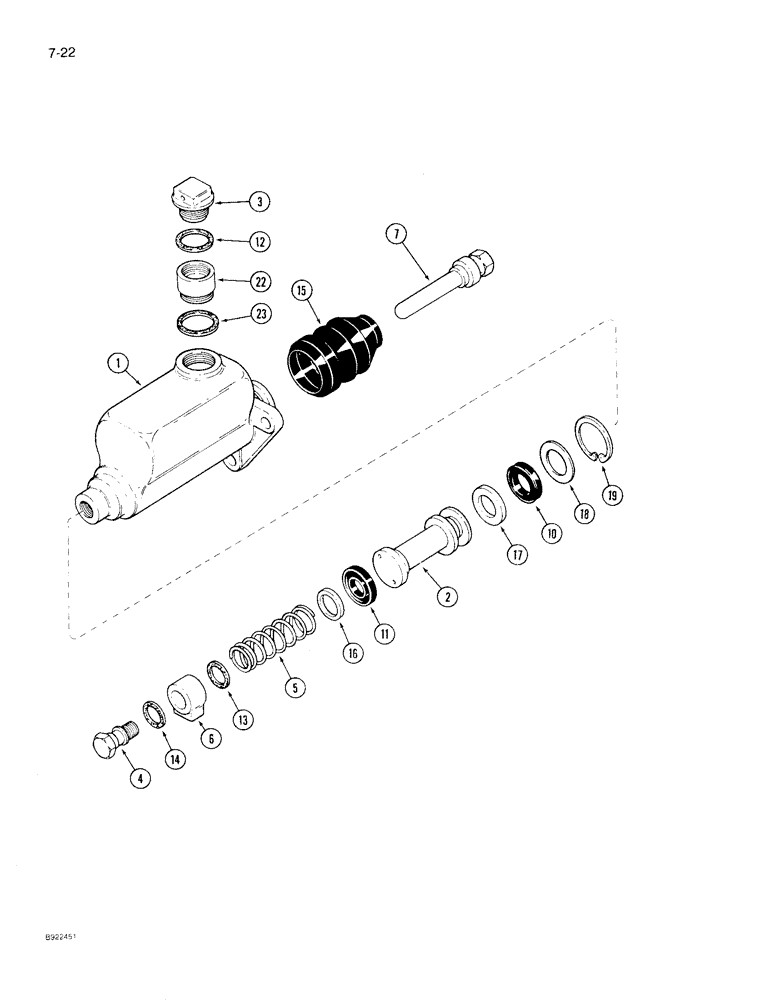

Схема запчастей Case IH 9230 - (7-022) - MASTER CYLINDER ASSEMBLY, SPECIAL - IF EQUIPPED (07) - BRAKES
18
13
5
17
3
2
10
4
6
7
11
1
12
19
23
16
22
15
14
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

90-7554T91

MASTER CYLINDER

CYLINDER ASSEMBLY - master, brake (With 7/8 inch diameter push rod), Includes: Ref. 1 - 19

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING - cylinder, brake

1шт.

2

NSS

NOT SOLD SEPARAT

PISTON - brake

1шт.

3

1-9956

PLUG

CAP - filler, cylinder

1шт.

4

31-663

BANJO BOLT

BOLT - hex, outlet port

1шт.

5

NSS

NOT SOLD SEPARAT

SPRING - return

1шт.

6

31-664

FITTING

- bolt, swivel

1шт.

7

1-2960

STEM

ROD - push, cylinder

1шт.

35-1894T91

PACKAGE, REPAIR

KIT - repair, cylinder, Includes: Ref. 10 - 15

1шт.

10

NSS

NOT SOLD SEPARAT

CUP - sealing

1шт.

11

NSS

NOT SOLD SEPARAT

CUP - sealing, small

1шт.

12

NSS

NOT SOLD SEPARAT

GASKET - filler cap

1шт.

13

1-1800

GASKET

- fitting

1шт.

14

1-1799

GASKET

- fitting, outer

1шт.

15

NSS

NOT SOLD SEPARAT

BOOT - dust

1шт.

16

NSS

NOT SOLD SEPARAT

WASHER - retainer

1шт.

17

NSS

NOT SOLD SEPARAT

WASHER - backup

1шт.

18

NSS

NOT SOLD SEPARAT

WASHER - stop

1шт.

19

NSS

NOT SOLD SEPARAT

RING - snap

1шт.

22

60-4546T1

INSERT

EXTENSION - stand off, master cylinder

1шт.

23

60-4581T1

GASKET

- stand pipe, filler

1шт.
