(1-018) - PICTORIAL INDEX, STEERING HYDRAULICS, WITHOUT FRONT STEERABLE AXLE

Запчасти Case IH 9230 (1-018) - PICTORIAL INDEX, STEERING HYDRAULICS, WITHOUT FRONT STEERABLE AXLE (00) - PICTORIAL INDEX

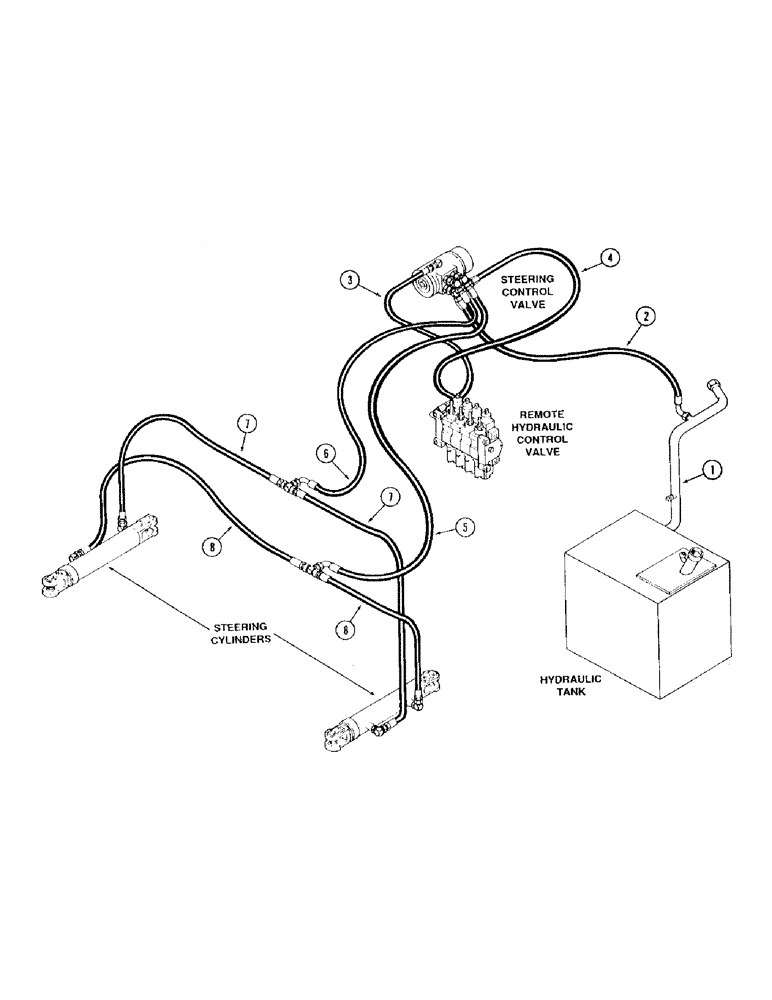

Схема запчастей Case IH 9230 - (1-018) - PICTORIAL INDEX, STEERING HYDRAULICS, WITHOUT FRONT STEERABLE AXLE (00) - PICTORIAL INDEX
7
4
8
8
7
2
6
1
5
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

Hydraulic Return Tube, Page 8-3

1шт.

2

Steering Drain Hose, Page 5-11

1шт.

3

Steering Pressure Sensing Hose, Page 5-11

1шт.

4

Steering Supply Hose, Page 5-11

1шт.

5

Right Hand Steering Hose, Page 5-13

1шт.

6

Left Hand Steering Hose, Page 5-13

1шт.

7

Left Hand Steering Hose, Page 5-13

1шт.

8

Right Hand Steering Hose, Page 5-13

1шт.
