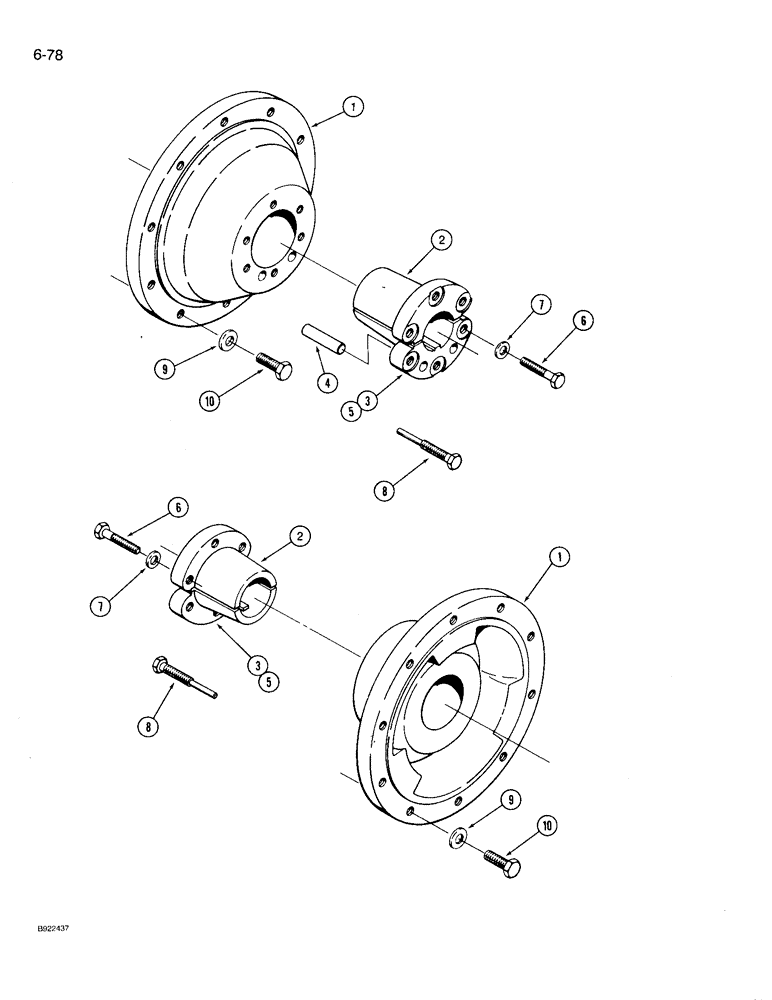

Запчасти Case IH 9230 (6-078) - WHEEL HUBS, K593 BAR AXLES (06) - POWER TRAIN

1

30-1326T2

HUB

- wheel

4шт.

2

30-1327T1

HALF-BUSHING

BUSHING - half, axle

4шт.

3

30-1328T91

BUSHING

ASSEMBLY - half, axle (Prior to P.I.N. JCB0027848), not available, order 30-1402T1, Ref. 5, Includes: Ref. 4

4шт.

4

19-6254

PIN

- dowel, 15/16 x 2 inch

2шт.

5

30-1402T1

BUSHING

- half, axle (P.I.N. JCB0027848 and after)

4шт.

6

19-6172

BOLT,Hex, 3/4" - 10 x 3 3/4", Gr 8

- hex, 3/4 NC x 3-3/4 inch, grade 8

24шт.

7

19-5723

WASHER

- flat, 3/4 x 1-1/2 x 5/32 inch

24шт.

8

30-1331T2

BOLT,Hex, 7/8" - 12 x 6-3/8", Gr 8

BOLT - hex, special

8шт.

9

70-5535T1

WASHER,23.01mm ID x 45.21mm OD x 6.35mm Thk

- flat

40шт.

10

26053R1

BOLT,Hex, 7/8" - 9 x 2 1/2", Gr 8

- hex, 7/8 NC x 2-1/2 inch, grade 8

40шт.
