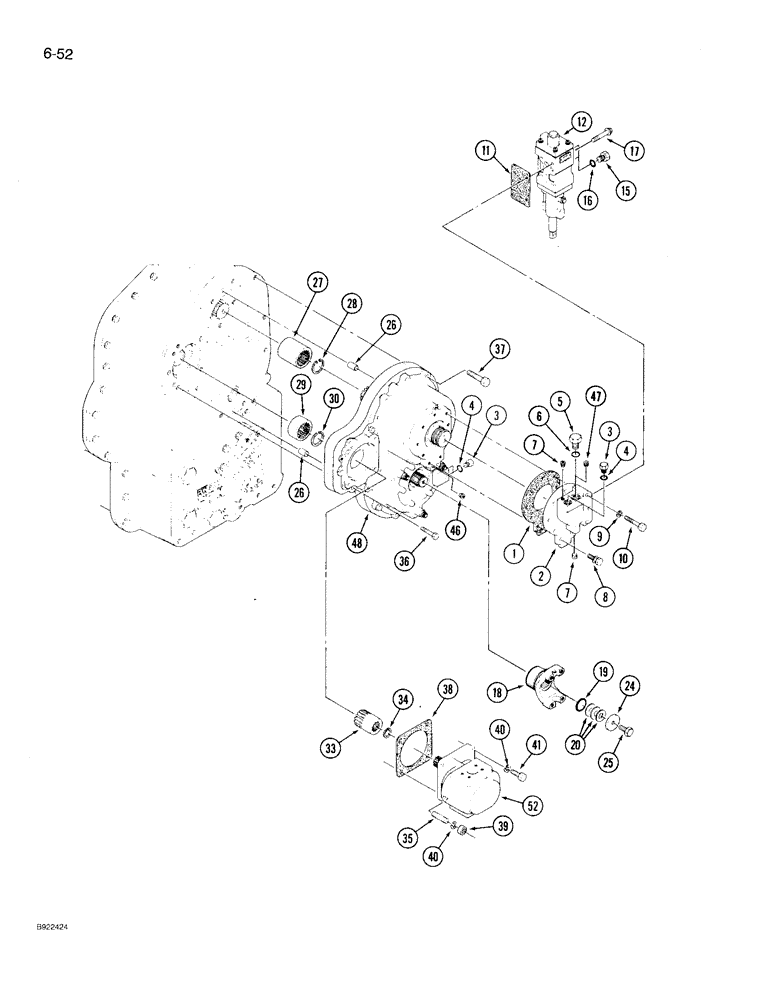

Запчасти Case IH 9230 (6-052) - PTO ASSEMBLY (06) - POWER TRAIN

90-7046T93

CLUTCH

PTO ASSEMBLY - hydraulic, Includes: Ref. 1 - 48 and 1 - 52 on Figure 6-054

1шт.

1

S8540S00F

GASKET

- servo case

1шт.

Part of PTO overhaul kit P/N S9870S00F.

1шт.

2

S8530S00F

CASE

- PTO servo

1шт.

3

S1030S00F

PLUG

- oil ports, Includes: Ref. 4

3шт.

4

S1040S00F

O-RING

- plug

3шт.

Part of PTO overhaul kit P/N S9870S00F.

1шт.

5

S8550S00F

PLUG

- O-ring boss

1шт.

6

S8560S00F

GASKET

O-RING - plug

1шт.

Part of PTO overhaul kit P/N S9870S00F.

1шт.

7

STX99700F

PLUG

- hex socket

2шт.

8

SM8124030

BOLT

BOLT - hex, 10 - 1.25 x 30 mm

6шт.

9

892-11010

LOCK WASHER,M10

3шт.

10

SM8124080

BOLT

BOLT - hex, 10 - 1.25 x 80 mm

3шт.

11

S9510S00F

GASKET

- control valve

1шт.

Part of PTO overhaul kit P/N S9870S00F.

1шт.

12

S9500S00F

VALVE

ASSEMBLY - PTO control, See Figure 6-058

1шт.

15

S1390S00F

PLUG

- oil port, Includes: Ref. 16

2шт.

16

S1320S00F

O-RING

- plug

2шт.

17

SM8120880

BOLT

BOLT - hex, 8 - 1.25 x 80 mm

4шт.

18

90-7004T1

FORK

YOKE - PTO output

1шт.

19

S8950S00F

GASKET

O-RING - yoke seal

1шт.

Part of PTO overhaul kit P/N S9870S00F.

1шт.

20

S9950S00F

SHIM,0.1mm Thk

(0.10 mm), Yoke .004" Thk

1шт.

20

S9960S00F

SHIM,0.31mm Thk

(0.30 mm), Yoke .012" Thk

1шт.

20

S9970S00F

SHIM,0.51mm Thk

(0.50 mm), Yoke .020" Thk

1шт.

20

S9980S00F

SHIM,0.71mm Thk

(0.7 mm), Yoke .028" Thk

1шт.

24

S8860S00H

WASHER

- retainer

1шт.

25

SM8134635

BOLT

BOLT - hex, 16 - 1.50 x 35 mm, class 10.9

1шт.

26

33-1467T1

DOWEL

PIN - dowel

2шт.

27

S8600S00F

SLEEVE

- drive coupling

1шт.

28

SM922247

RING, SNAP

RING - snap

1шт.

29

33-1452T1

COUPLING

- pump drive

1шт.

30

33-1445T1

RING, SNAP

RING - snap

1шт.

33

33-1528T1

COUPLING

ADAPTER - pump drive

1шт.

34

33-1446T1

RING, SNAP

RING - snap

1шт.

35

SM8267455

STUD

- 14 - 1.5 x 55 mm

2шт.

36

SM8124280

BOLT

BOLT - hex, 12 - 1.25 x 80 mm

4шт.

37

SM8124290

BOLT

BOLT - hex, 12 - 1.25 x 90 mm

7шт.

38

50-1388T1

GASKET

- pump

1шт.

Part of PTO overhaul kit P/N S9870S00F.

1шт.

39

SM8911244

NUT

- hex, 14 - 1.5 mm

2шт.

40

SM8915144

PLATE, LOCKING

WASHER - lock, 14 mm

4шт.

41

SM8124460

BOLT

BOLT - hex, 8 - 1.50 x 60 mm

2шт.

46

S8930S00F

PLUG

- orifice

1шт.

47

S8920S00F

PLUG

- orifice

1шт.

48

S8590S00F

CLUTCH PLATE

CLUTCH ASSEMBLY - PTO, See Figure 6-056

1шт.

52

33-1524T91

PUMP, HYDRAULIC

PUMP - lubrication, See Figure 6-030

1шт.

33-1524T91R

REMAN-HYD PUMP

9210, 9230 BOTH (9/90-5/95)

1шт.

33-1524T91C

CORE-HYDRAULIC PUMP

RETURN NUMBER

1шт.

S9870S00F

KIT

overhaul, PTO, Includes: Ref. 1, 4, 6, 11, 19 and 38

1шт.
