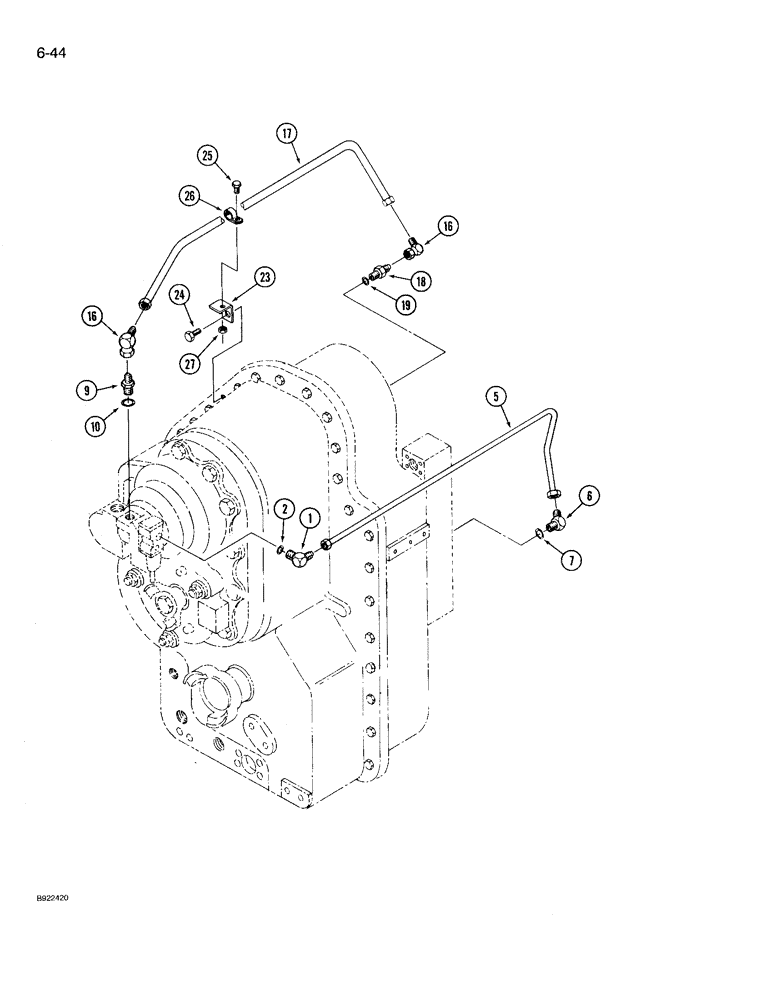

Запчасти Case IH 9230 (6-044) - TRANSMISSION LUBRICATION, TRANSMISSION WITH PTO SYSTEM, IF EQUIPPED (06) - POWER TRAIN

1

31-367

ELBOW,90 Degree, 3/4"-16, 37 Degree x 7/8"-14, O-Ring

- 90 degree adjustable, 7/8 x 3/4 inch thread, Includes: Ref. 2

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

5

90-6691T1

TUBE,.5" OD

- range selector valve to PTO control valve (With PTO system only)

1шт.

6

218-5280

ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18, O-Ring

- 90 degree adjustable, 3/4-16 x 9/16-18 inch thread, Includes: Ref. 7

1шт.

7

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

9

218-5060

HYD CONNECTOR,3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Adapter, straight, Incl. Ref 10 3/4"-16, 37º x 7/8"-14, O-Ring

1шт.

10

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

1шт.

16

218-5230

ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw

- 90 degree swivel, 3/4-16 inch thread

2шт.

17

90-6889T1

TUBE,.5" OD

- regulator valve to PTO control valve (With PTO system only)

1шт.

18

218-5090

ADAPTER

- straight, 9/16-18 thread x 1/4 inch female PT, Includes: Ref. 19

1шт.

19

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

1шт.

23

90-6894T1

SUPPORT

BRACKET - support, clamp

1шт.

24

SM8121240

BOLT

BOLT - hex, 12 - 1.75 x 40 mm

1шт.

25

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

26

31-1775

CLAMP

- tube

1шт.

27

425-106

NUT,3/8"-16, Cl 5

1шт.
