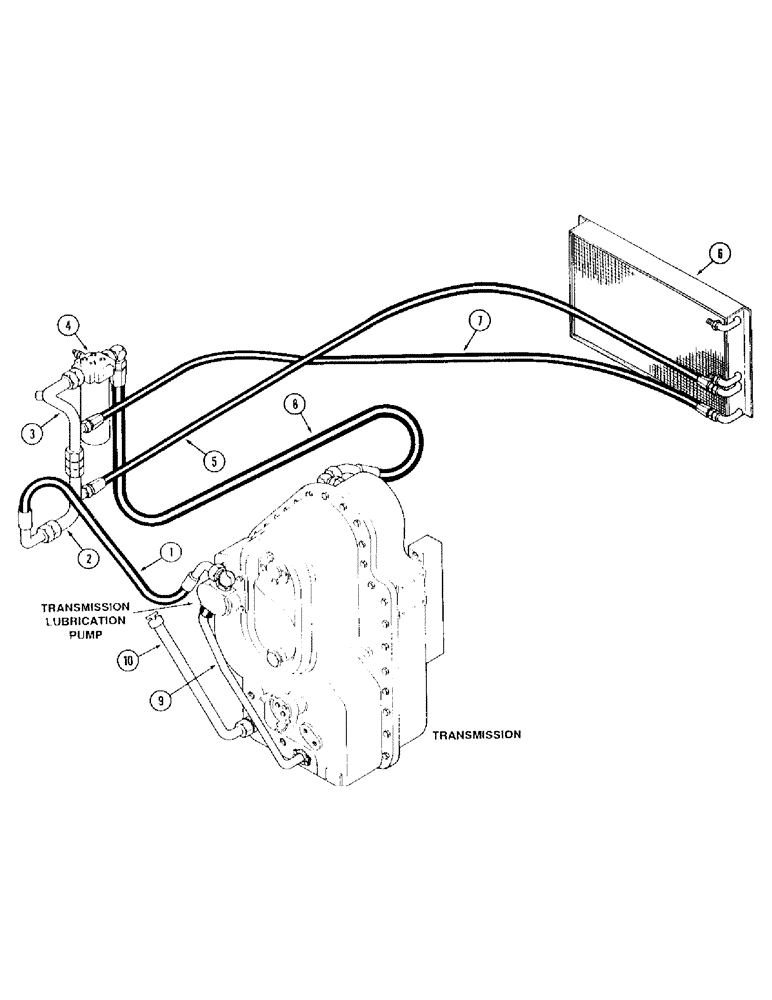

Запчасти Case IH 9230 (1-012) - PICTORIAL INDEX, LUBRICATION HYDRAULICS, WITHOUT PTO (00) - PICTORIAL INDEX

1

Transmission Lubrication Supply Hose, Page 6-43

1шт.

2

Transmission Lubrication Supply Tube, Page 6-43

1шт.

3

Transmission Lubrication Supply Tube, Page 6-43

1шт.

4

Oil Filter, Hydrualic, Page 6-43

1шт.

5

Oil Cooler Supply Hose, Page 6-43

1шт.

6

Oil cooler, Hydraulic, Page 8-7

1шт.

7

Oil Cooler Return Hose, Page 6-43

1шт.

8

Transmission Lubrication Supply Hose, Page 6-43

1шт.

9

Transmission to Pump Supply Tube, Page 6-43

1шт.

10

Dipstick Tube, Page 6-43

1шт.
