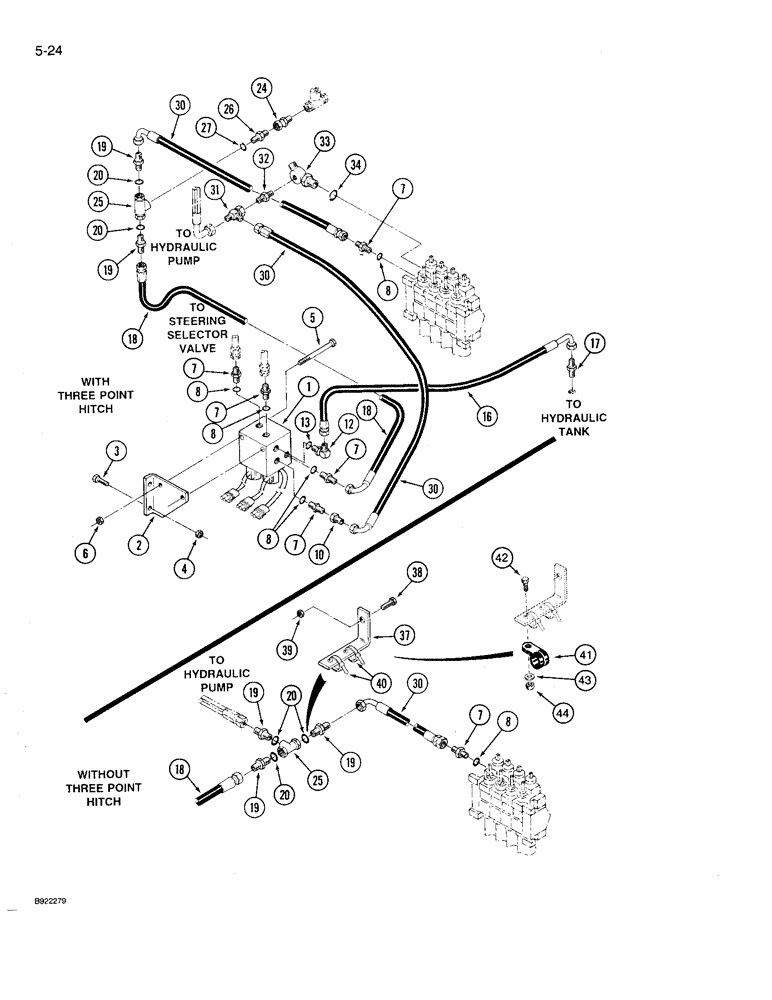

Запчасти Case IH 9230 (5-024) - STEERABLE AXLE HYDRAULIC SYSTEM, WITH OR WITHOUT THREE POINT HITCH (05) - STEERING

1

50-3081T92

VALVE

ASSEMBLY - make up, See Figure 5-032

1шт.

2

50-3082T1

WASHER

BRACKET - mounting, make up valve

1шт.

3

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 NC x 3 inch

2шт.

4

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

5

413-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

- hex, 5/16 NC x 3-3/4 inch

2шт.

6

27254R1

NUT

- hex lock, 5/16 inch NC

2шт.

7

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

ADAPTER - straight, 7/16-20 flare x 9/16-18 inch O-ring boss, Incl. Ref. 8

4шт.

8

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

31-2543

ADAPTER

- orificed

1шт.

12

156264C91

ELBOW,90º, 7/16"-20, 37º x 9/16"-18, O-Ring

- 90 degree adjustable, 3/8 x 1/4 inch thread, Includes: Ref. 13

1шт.

13

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

16

18-1576

HOSE

- make up valve to hydraulic tank, 30 inch long

1шт.

17

218-1088

HYD CONNECTOR,7/16"-20, 37 Degree x 1/2"-14, NPTF

ADAPTER - straight, 7/16 thread x 1/2 inch PT

1шт.

18

31-3040

HOSE ASSY.

HOSE - 26 inch long, make up valve to shuttle valve

1шт.

19

218-5053

HYD CONNECTOR,7/16" - 20 JIC x 7/16" - 20 ORB

ADAPTER - straight, 7/16-20 inch thread, Incl. Ref. 20

2шт.

20

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

24

218-5268

HYD CONNECTOR,7/16" - 20 ORB x 1/4" - 18 NPT

ADAPTER - adjustable, 1/4 PT x 7/16 inch thread

1шт.

25

31-1778

VALVE

ASSEMBLY - shuttle, Includes: Ref. 26

1шт.

26

218-1022

HYD CONNECTOR,7/16"-20, 37 Degree x 1/4"-18, NPTF

ADAPTER - straight, 7/16-20 flare x 1/4 inch PT

1шт.

27

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

30

31-3035

HOSE ASSY.

HOSE - 20 inch long, Serial Range: valve-valve

2шт.

31

218-5478

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

- adjustable, 7/16-20 inch thread

1шт.

32

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 7/16-20 thread x 1/8 inch PT

1шт.

33

31-2695

ELBOW

- 45 degree, adjustable, Includes: Ref. 34

1шт.

34

31-587

O-RING,16-1, 90 Duro, 1.171" ID x .116" Thk

- 1-11/64 ID x 1/8 inch width

1шт.

37

60-4775T1

SUPPORT

BRACKET - mounting, clamp

1шт.

38

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

39

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex lock, 3/8 inch NC

1шт.

40

50-2037T1

STRAP

- retainer, nylon, no longer used, See Ref. 41 - 44

1шт.

41

31-1776

MOUNTING CLIP

CLAMP - hose and shuttle valve

1шт.

42

426-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

- hex, 1/4 NC x 3/4 inch, grade 8

1шт.

43

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

44

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

1шт.
