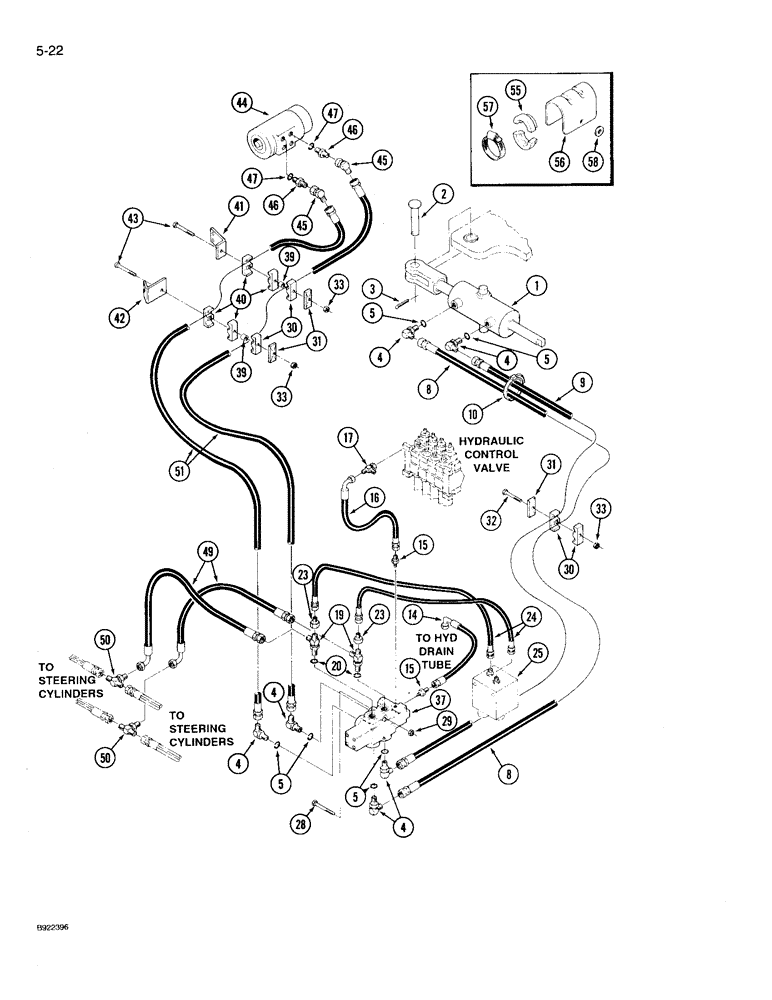

Запчасти Case IH 9230 (5-022) - STEERABLE AXLE HYDRAULIC SYSTEM, CONTROL VALVE TO FRONT STEERING CYLINDER (05) - STEERING

1

50-3046T91

CYLINDER

ASSEMBLY - steerable front axle, See Figure 5-028

1шт.

2

N14001

CLEVIS PIN

PIN - clevis, cylinder retaining

1шт.

3

432-1232

COTTER PIN,3/16" OD x 2" L

3/16" x 2"

1шт.

4

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree adjustable, 3/4-16 inch thread, Includes: Ref. 5

6шт.

5

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

6шт.

8

R28970

HOSE,12.70 mm ID x 1473.00 mm, SAE 100R2

- Selector valve to steering cylinder 12.70 mm ID x 1473.00 mm, SAE 100R2

1шт.

9

31-3032

HOSE ASSY.,12.7mm ID x 1257.3mm L

HOSE - 49-1/2 inch long, selector valve to steering cylinder

1шт.

10

D147773

CLAMP

STRAP - tie, hose

1шт.

14

31-2693

HOSE

- steering selector valve to drain tube, 19 inch long

1шт.

15

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 7/16-20 thread x 1/8 inch PT

2шт.

16

31-3043

HOSE ASSY.

HOSE - 15 inch long, steering selector valve to control valve

1шт.

17

218-5478

TEE,7/16" - 20 JIC x 7/16" - 20 JIC x 7/16" - 20 JIC

- adjustable, 7/16-20 inch thread, Includes: Ref. 20

1шт.

19

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- adjustable, 3/4-16 inch thread, Includes: Ref. 20

2шт.

20

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

2шт.

23

218-764

REDUCER,37 Degree, 3/4"-16, Fem x 7/16"-20 Male

ADAPTER - straight, 3/4 x 7/16 inch thread

2шт.

24

31-3031

HOSE ASSY.

HOSE - 32 inch long, steering selector valve to make up valve

1шт.

25

50-3081T92

VALVE

ASSEMBLY - make up, See Figure 5-032

1шт.

28

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

- hex, 5/16 NC x 3 inch

2шт.

29

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

30

50-2534T1

CLAMP

- split, halves

4шт.

31

50-2533T1

PLATE

COVER - clamp

3шт.

32

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

- hex, 5/16 NC x 2-1/2 inch

1шт.

33

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

3шт.

37

50-3234T92

VALVE

ASSEMBLY - double selector, steering, See Figure 5-030

1шт.

39

50-2955T1

SPACER

- clamp

2шт.

40

50-2554T1

CLAMP

- split, halves

4шт.

41

50-2954T1

BRACKET

- mounting, clamp

1шт.

42

50-2982T1

BRACKET

- mounting, clamp

1шт.

43

413-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

- hex, 5/16 NC x 3-3/4 inch

2шт.

44

50-2600T91

UNIT

VALVE ASSEMBLY - control, steering, See Figure 5-014

1шт.

45

218-5173

ELBOW,45 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Female JIC

- 45 deg, 3/4-16 inch flare x swivel straight thread, if used

2шт.

46

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch thread, Incl. Ref 47

2шт.

47

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

2шт.

49

31-2957

HOSE ASSY.

HOSE - selector valve to rear steer cylinders, 18 inch long

2шт.

50

218-805

TEE,3/4"-16, 37 Degree, Blkhd

- bulkhead, 3/4-16 inch thread

2шт.

51

31-3030

HOSE ASSY.

HOSE - 71 inch long, steering control valve to selector valve

2шт.

35-1915T91

PACKAGE

KIT - stop, articulation, not available, order kit components, Includes: Ref. 55 - 58

1шт.

55

50-2976T1

HALF-BUSHING

STOP - articulation

8шт.

56

70-6279T1

JOINT

LOCK - articulation (6-1/4 inch)

2шт.

56

70-6281T1

JOINT

LOCK - articulation (7 inch)

2шт.

57

214-1464

HOSE CLAMP,#64, 3.56" - 4.5", Type F Worm

CLAMP, HOSE, , Adj. #64, 3.56/4.50 Type F Worm

4шт.

58

495-11081

WASHER,3/4", SAE

20шт.
