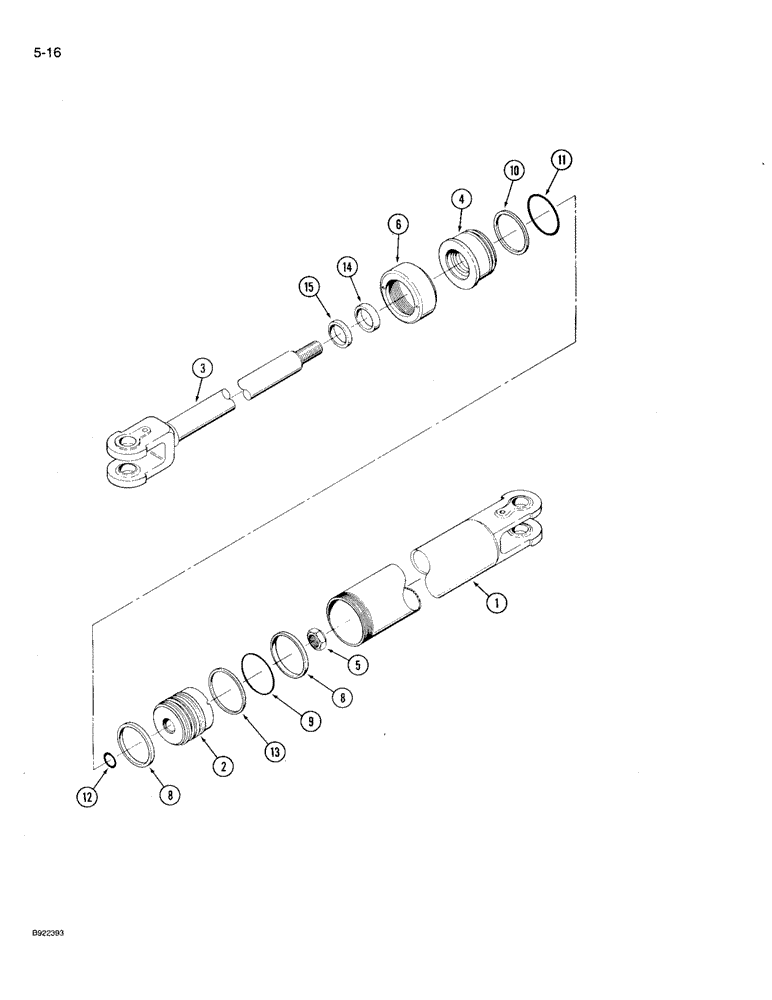

Запчасти Case IH 9230 (5-016) - STEERING CYLINDER ASSEMBLY, WITHOUT STEERABLE FRONT AXLE (05) - STEERING

50-2753T92

CYLINDER

ASSEMBLY - steering, Includes: Ref. 1 - 13

1шт.

1

50-2754T2

TUBE ASSY.

BARREL - cylinder body

1шт.

2

50-2758T1

PISTON

- cylinder

1шт.

3

50-2997T2

ROD

- cylinder

1шт.

4

50-2759T1

GUIDE

- rod

1шт.

5

19-5578

LOCK NUT

- hex, lock

1шт.

6

50-2765T1

COLLAR

- locking, rod guide

1шт.

35-1631T91

SEAL KIT

KIT - seal, cylinder (Order components), Includes: Ref. 8 - 13

1шт.

8

50-2760T1

RING

- wear, cylinder

1шт.

9

50-2761T1

SEALING RING,64.62mm ID x 70.46mm OD x 2.92mm Thk

- piston

1шт.

10

50-2762T1

WASHER,63.5mm ID x 69.85mm OD x 1.09mm Thk

- backup

1шт.

11

50-2763T1

O-RING,2.484" ID x 2.762" OD x 0.139"

WASHER - backup

1шт.

12

18-1164

O-RING,1" ID x 40544" OD x 1"

O-RING - seal, piston

1шт.

13

50-2764T1

O-RING,0.103" Thk x 2.3" ID, -141, Cl 5, 75 Duro

- seal, rod guide

1шт.
