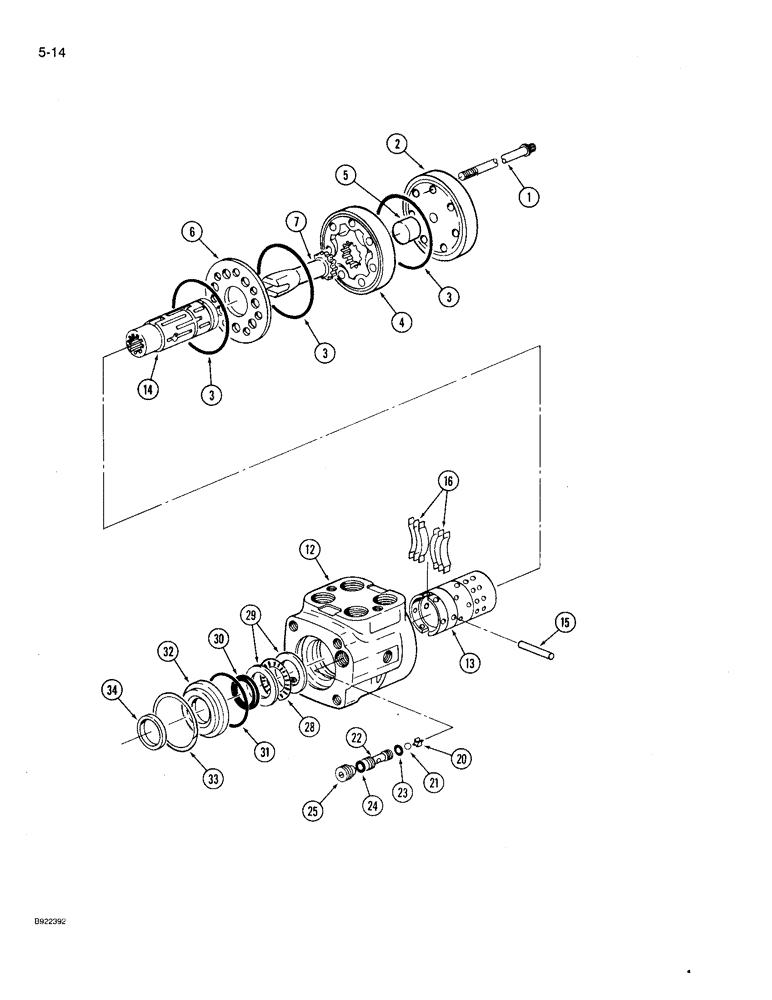

Запчасти Case IH 9230 (5-014) - STEERING CONTROL VALVE (05) - STEERING

50-2600T91

UNIT

VALVE ASSEMBLY - steering control, Includes: Ref. 1 - 34

1шт.

1

18-1734

BOLT,Hex, 5/8" - 11 x 2", Gr 5

- 12 point head

7шт.

2

2-2422

KIT

CAP - end, steering valve

1шт.

3

N6392

O-RING,0.07" Thk x 2.864" ID, -40, Cl 5, 75 Duro

- seal

3шт.

4

2-2055

GEAR-SET

GEROTOR - valve (matched set)

1шт.

5

2-2057

SPACER

- drive

1шт.

6

18-1686

PLATE

- wear

1шт.

7

18-128

DRIVE

SHAFT- drive

1шт.

33-1040T91

CONTROL

ASSEMBLY - steering valve, Includes: Ref. 12 - 16

1шт.

12

NSS

NOT SOLD SEPARAT

HOUSING - control valve

1шт.

13

NSS

NOT SOLD SEPARAT

SLEEVE - control

1шт.

14

NSS

NOT SOLD SEPARAT

SPOOL - control

1шт.

15

18-157

PIN

- dowel

1шт.

16

N14250

KIT

- spring, centering (set of 6)

1шт.

20

2-2059

RETAINER

- check ball

1шт.

21

2-2060

BALL

- check

1шт.

22

2-2061

SEAT

- check ball

1шт.

23

L30893

O-RING,1/16" Thk x 5/16" ID

7/16 x 5/16 x 1/16 in

1шт.

24

2-2062

SEAL

- O-ring

1шт.

25

2-2063

SET SCREW

- set, adjuster

1шт.

28

F13609

SHAFT

BEARING - thrust, needle

1шт.

29

D82804

RACE

WASHER - thrust, bearing

2шт.

30

18-144

SEAL

- quad

1шт.

31

18-1694

O-RING,0.139" Thk x 1.859" ID, -225, Cl 5, 75 Duro

- seal

1шт.

32

S110170

BUSHING

SEAL - spool

1шт.

33

S110169

WASHER

RING - retaining

1шт.

34

18-137

OIL SEAL

- input

1шт.
