(5-010) - STEERING SYSTEM HYDRAULICS, VALVE TO STEERING CONTROL VALVE, WITHOUT STEERABLE AXLE

Запчасти Case IH 9230 (5-010) - STEERING SYSTEM HYDRAULICS, VALVE TO STEERING CONTROL VALVE, WITHOUT STEERABLE AXLE (05) - STEERING

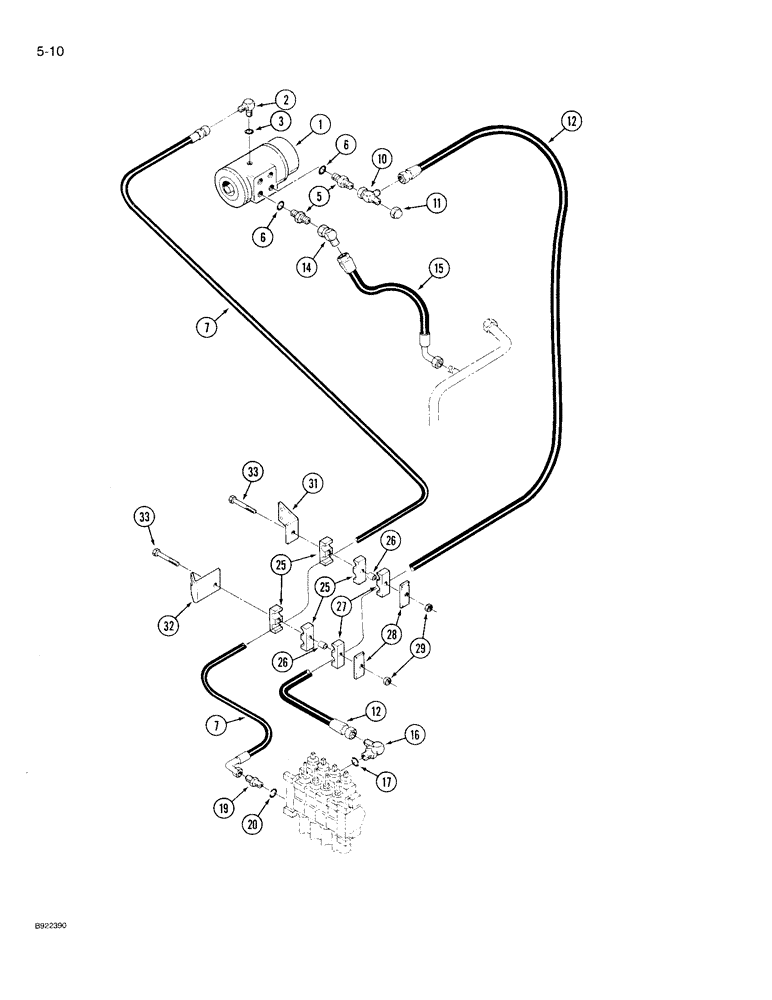

Схема запчастей Case IH 9230 - (5-010) - STEERING SYSTEM HYDRAULICS, VALVE TO STEERING CONTROL VALVE, WITHOUT STEERABLE AXLE (05) - STEERING
25
11
6
20
19
3
15
12
26
27
26
32
12
33
5
28
1
16
17
2
29
10
33
31
7
25
14
6
7
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

50-2600T91

UNIT

VALVE ASSEMBLY - control, steering, See Figure 5-014

1шт.

2

218-5103

90 ELBOW,90 Degree Elbow, 7/16" - 20 Male JIC x 7/16" - 20 Male ORB

- 90 degree adjustable, 7/16-20 inch thread

1шт.

3

31-1019

O-RING,4-1, 90 Duro, .351" ID x .072" Thk

1шт.

5

218-5066

HYD CONNECTOR,7/8" - 14 Male JIC x 3/4" - 16 Male ORB

CONNECTOR, HYD., straight, 7/8-14 x 3/4-16 inch thread

2шт.

6

31-1335

O-RING,8-1, 90 Duro, .644" ID x .087" Thk

- 41/64 x 3/32 inch

2шт.

7

31-3038

HOSE ASSY.

HOSE - 64 inch long, steering control valve to control valve

1шт.

10

218-5220

TEE,37 Degree, 7/8"-14 x 7/8"-14, Fem Sw Run

- adjustable, 7/8-14 inch thread

1шт.

11

218-756

CAP,37 Degree, 7/8"-14

1шт.

12

31-2772

HOSE ASSY.

HOSE - steering valve to control valve

1шт.

14

218-5174

ELBOW,45 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Female JIC

- 45 degree swivel, 7/8-14 inch thread, if used

1шт.

15

31-3045

HOSE ASSY.

HOSE - 30 inch long, steering control valve to drain tube (Replaces 31-2729)

1шт.

16

218-5119

ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 1-1/16" - 12 Male ORB

- 90 degree adjustable, 7/8-14 x 1-1/16-12 inch thread

1шт.

Ref #16 - Replaced by 218-5063 connector & 218-5232 Elbow

1шт.

17

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

12-1, 90 Duro, .924 ID x .116" Thk

1шт.

19

218-5089

HYD CONNECTOR,7/16" - 20 Male JIC x 9/16" - 18 Male ORB

ADAPTER - straight, 7/16-20 flare x 9/16-18 inch O-ring boss

1шт.

20

31-1099

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

50-2554T1

CLAMP

- split, halves

4шт.

26

50-2955T1

SPACER

- clamp

2шт.

27

50-2534T1

CLAMP

- hose, half

2шт.

28

50-2533T1

PLATE

COVER - clamp

2шт.

29

231-1445

NUT,5/16"-18, GB

NUT - hex lock, 5/16 inch NC

2шт.

31

50-2954T1

BRACKET

- mounting, clamp

1шт.

32

50-2982T1

BRACKET

- mounting, clamp

1шт.

33

413-560

BOLT,Hex, 5/16" - 18 x 3-3/4", Gr 5

- hex, 5/16 NC x 3-3/4 inch

2шт.
