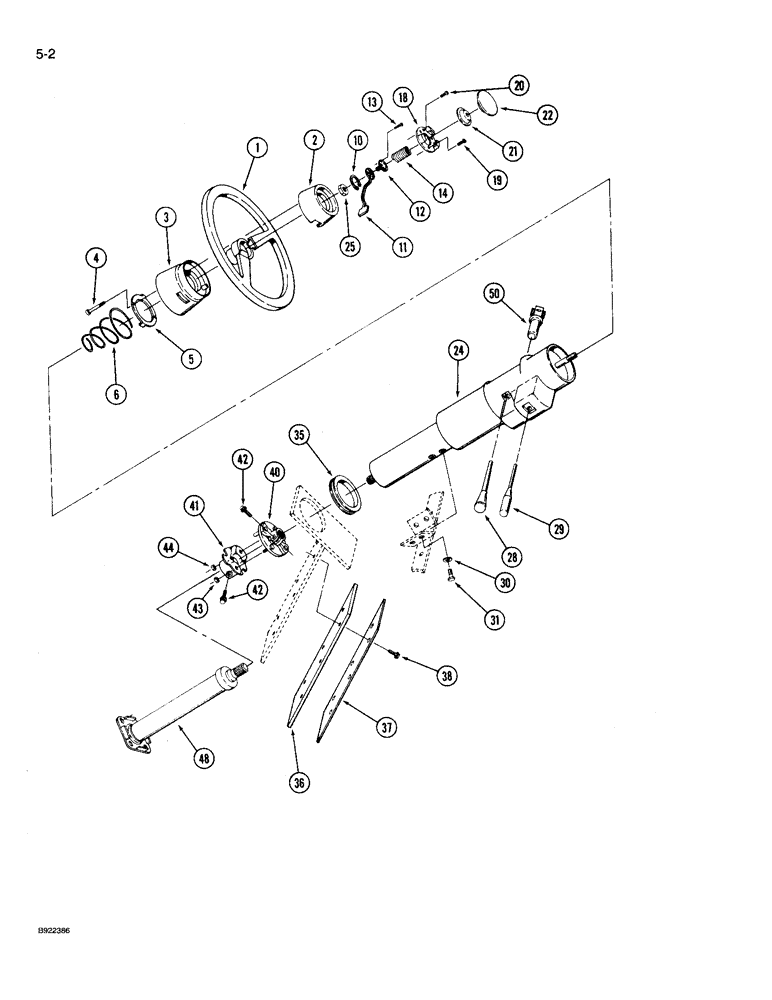

Запчасти Case IH 9210 (5-002) - STEERING WHEEL AND COLUMN (05) - STEERING

2-3755T92

STEERING WHEEL

WHEEL ASSEMBLY - steering, Includes: Ref. 1 - 6

1шт.

1

60-1827T2

WHEEL (STEERING)

WHEEL - steering (Order 2-3755T92)

1шт.

2

60-1828T1

CAP

COVER - hub, upper

1шт.

3

60-1829T1

COVER

- hub, lower

1шт.

4

19-5791

SELF-TAP SCREW,Cross Pan Hd, #6 x 1 1/4"

SCREW - pan head tap, No. 6 NS x 1-1/4 inch

2шт.

5

60-1830T1

RETAINER

- spring

1шт.

6

60-1831T1

SPRING

- compression, telescoping

1шт.

10

18-1570

RING, SNAP

RING - snap, locking

1шт.

11

60-1951T1

CONTROL LEVER

LEVER - release, telescoping

1шт.

12

18-1565

LOCK SCREW,5/16" - 18 x 0.95"

SCREW - release, telescoping

1шт.

13

60-6469T1

SCREW

- flat head machine, No. 10 NF x 1/4 inch

2шт.

14

60-1820T1

SPRING

- horn button

1шт.

18

60-1819T1

PLATE

- base

1шт.

19

260-14510

SELF-TAP SCREW,Hex Wash Hd, #10 x 5/8"

SCREW - Phillips head tap, No. 10-16 x 5/8 inch

3шт.

20

260-14436

SELF-TAP SCREW,Cross Pan Hd, #8 x 2 1/4"

SCREW - pan head, No. 8-18 x 2-1/4 inch

1шт.

21

60-1821T1

CUPEL

CONTACT - horn

1шт.

22

60-1822T1

BUTTON

- horn

1шт.

Ref #22 - A180055 Old Abe Medallion

1шт.

24

1-7630

STEERING COLUMN

COLUMN ASSEMBLY - steering, See Figures 5-006 and 5-008

1шт.

25

425-159

JAM NUT,Jam, 9/16"-18, G5

- hex, 9/16 inch NF

1шт.

28

18-1567T1

CONTROL LEVER

LEVER - tilt actuating

1шт.

29

1-4188T1

CONTROL LEVER

LEVER - turn signal, wiper, washer and hi-low beam

1шт.

30

446363

WASHER,5/16"

- flat, 3/8 x 7/8 x 1/16 inch

4шт.

31

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, 8 - 1.25 x 18 mm

4шт.

35

32-327

GROMMET

- column

1шт.

36

60-4751T1

SEAL

- steering column access

1шт.

37

60-4459T1

COVER

PLATE - cover, access

1шт.

38

281-13712

SELF-TAP SCREW,Hex Wash Hd, 1/4" x 3/4"

SCREW - flange head tap, 1/4 NC x 3/4 inch

6шт.

60-4390T91

COUPLING

COUPLER ASSEMBLY - steering (Order Components), Includes: Ref. 40 - 44

1шт.

40

60-4436T1

FLANGE

- coupling, column

1шт.

41

60-4437T1

FLANGE

- coupling, steering shaft

1шт.

42

CAS7807271

SCREW

- 12 point lock

2шт.

43

451399

NUT,5/16"-18, G5, Hvy

- hex, 5/16 inch NF

1шт.

44

9420821

NUT

- hex, 3/8 inch NF

1шт.

48

REF

INSTRUCTION

SHAFT ASSEMBLY - steering lower, See Figure 5-004 for correct shaft

1шт.

50

22-752T1

IGNITION SWITCH

LOCK ASSEMBLY - ignition, Includes: keys

1шт.

A77313

SET OF 2 KEYS

KEY - ignition switch

2шт.
