Запчасти Case IH 9210 (2-066) - PISTONS, 6T-830 ENGINE, 9210 TRACTOR ONLY (02) - ENGINE

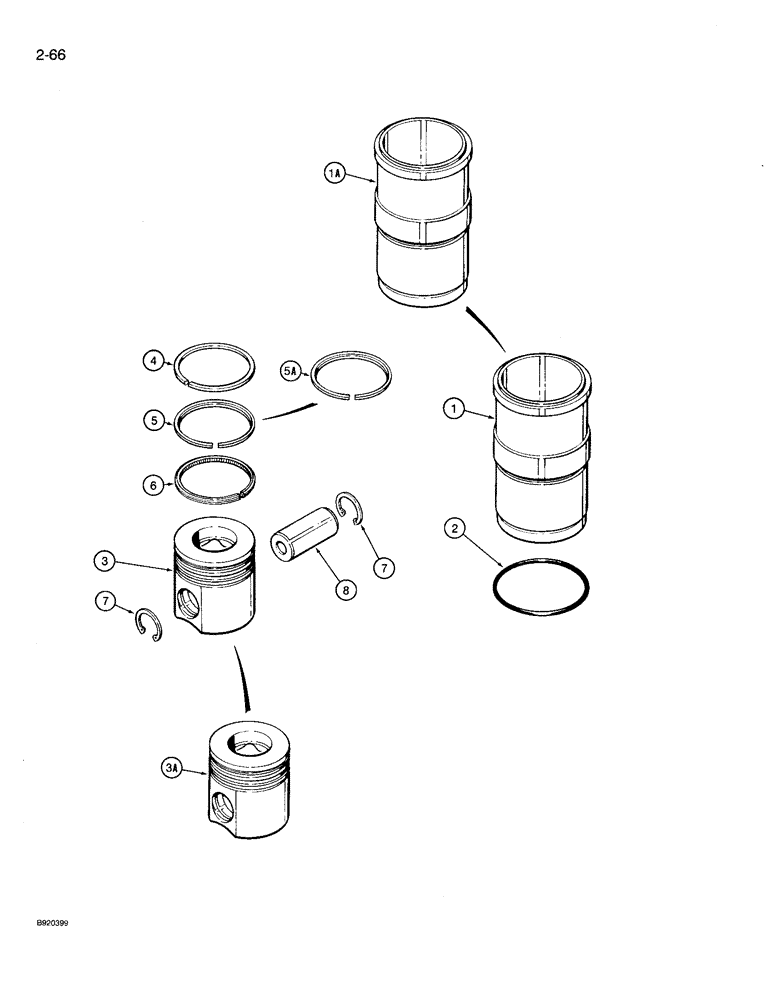

Схема запчастей Case IH 9210 - (2-066) - PISTONS, 6T-830 ENGINE, 9210 TRACTOR ONLY (02) - ENGINE
8
2
6
5a
5
7
3
1
7
1a
4
3a

Артикул

Название

Примечание

Количество

A77598

CYLINDER

KIT - piston and sleeve, Includes: piston stamped 8749, no longer available, order A77747 kit, Includes: Ref. 1 - 8

6шт.

1

J907792

SLEEVE CYLINDER

SLEEVE - piston

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve

1шт.

A77599

KIT

- piston, standard, Includes: piston stamped 8749, no longer available, order A77745 piston kit, shown below, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 8749

1шт.

A77562

PISTON RING SET

KIT - piston ring, used with piston stamped 8749, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

5

NSS

NOT SOLD SEPARAT

RING - rectangular, compression, middle

1шт.

6

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

7

G109044

SNAP RING,1.75", Int, #175

Ring, Snap, , replaces J901996 ring 1.75", Int, #175

2шт.

8

J901597

PIN

- piston

1шт.

A77747

PACKAGE

KIT - piston and sleeve, Includes: piston stamped 9928, Includes: Ref. 1 - 8, engine ser. no. 44536857 through 44706125

6шт.

A77772

PACKAGE, REPAIR

KIT - piston and sleeve, Includes: piston stamped 9564 or 3163, Includes: Ref. 1 - 8, engine ser. no. 44536857 through 44706125

6шт.

1

J907792

SLEEVE CYLINDER

SLEEVE - piston, engine ser. no. 44536857 through 44706125

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve, engine ser. no. 44536857 through 44706125

1шт.

A77745

PACKAGE

KIT - piston, standard, Includes: piston stamped 9928, Includes: Ref. 3A - 6, engine ser. no. 44536857 through 44706125

1шт.

A77771

PISTON ASSY.

KIT - piston, standard, Includes: piston stamped 9564 or 3163, Includes: Ref. 3A - 6, engine ser. no. 44536857 through 44706125

1шт.

3a

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 9928, engine ser. no. 44536857 through 44706125

1шт.

3a

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 9564 or 3163, engine ser. no. 44536857 through 44706125

1шт.

A77744

PACKAGE

KIT - piston ring, used with pistons stamped 9928, 9564, or 3163, Includes: Ref. 4 - 6, engine ser. no. 44536857 through 44706125

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, top, pistons engine ser. no. 44536857 through 44706125

1шт.

5a

NSS

NOT SOLD SEPARAT

RING - keystone with reverse twist, compression, middle, engine ser. no. 44536857 through 44706125

1шт.

6

NSS

NOT SOLD SEPARAT

RING - oil, bottom, engine ser. no. 44536857 through 44706125

1шт.

7

G109044

SNAP RING,1.75", Int, #175

Ring, Snap, , replaces J901996 ring, engine s/n 44536857 through 44706125 1.75", Int, #175

2шт.

8

J901597

PIN

- piston engine ser. no. 44536857 through 44706125

1шт.

A77798

PACKAGE, REPAIR

KIT - piston and sleeve, Includes: piston stamped 9564, Includes: Ref. 1A - 8, engine ser. no. 44706126 and after

6шт.

1a

J919937

SLEEVE CYLINDER,114.02mm ID x 130.66mm OD x 237.12mm L

SLEEVE - piston engine ser. no. 44706126 and after

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve, engine ser. no. 44706126 and after

1шт.

A77771

PISTON ASSY.

KIT - piston, standard, Includes: piston stamped 9564 or 3163, Includes: Ref. 3A - 6, engine ser. no. 44706126 and after

1шт.

3a

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 9564 or 3163, engine ser. no. 44706126 and after

1шт.

A77744

PACKAGE

KIT - piston ring, used with piston stamped 9564 or 3163, Includes: Ref. 4 - 6, engine ser. no. 44706126 and after

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, top, engine ser. no. 44706126 and after

1шт.

5a

NSS

NOT SOLD SEPARAT

RING - keystone with reverse twist, compression, middle, engine ser. no. 44706126 and after

1шт.

6

NSS

NOT SOLD SEPARAT

RING - oil, bottom, engine ser. no. 44706126 and after

1шт.

7

G109044

SNAP RING,1.75", Int, #175

Ring, Snap, , replaces J901996 ring, engine s/n 44706126 and after 1.75", Int, #175

2шт.

8

J901597

PIN

- piston, engine ser. no. 44706126 and after

1шт.

Выбрано товаров: 36
