Запчасти Case IH 9210 (2-064) - PISTONS, 6TA-830 ENGINE, 9230 TRACTOR ONLY (02) - ENGINE

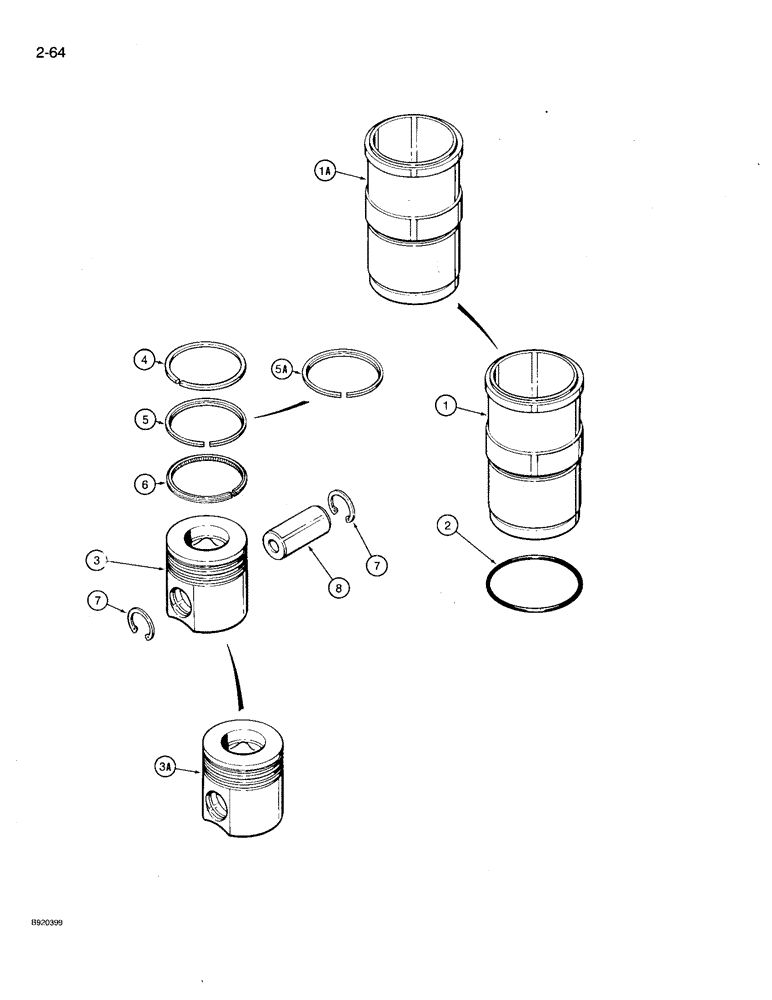

Схема запчастей Case IH 9210 - (2-064) - PISTONS, 6TA-830 ENGINE, 9230 TRACTOR ONLY (02) - ENGINE
1
7
8
2
3
5
1a
6
4
5a
3
7

Артикул

Название

Примечание

Количество

A77626

CYLINDER

KIT - piston and sleeve, Includes: piston stamped 8750, no longer available, order A77748 kit, below, Includes: Ref. 1 - 8

6шт.

1

J907792

SLEEVE CYLINDER

SLEEVE - piston

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve, replaces J917737 O-ring

1шт.

A77664

KIT

- piston, standard, Includes: piston stamped 8750, Includes: Ref. 3 - 6

1шт.

3

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 8750

1шт.

A77562

PISTON RING SET

KIT - piston ring, used with piston stamped 8750, Includes: Ref. 4 - 6

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, top

1шт.

5

NSS

NOT SOLD SEPARAT

RING - rectangular, compression, middle

1шт.

6

NSS

NOT SOLD SEPARAT

RING - oil, bottom

1шт.

7

G109044

SNAP RING,1.75", Int, #175

Ring, Snap, , replaces J901996 ring 1.75", Int, #175

2шт.

8

J901597

PIN

- piston

1шт.

A77748

PACKAGE

KIT - piston and sleeve, Includes: piston stamped 9930, Includes: Ref. 1 - 7, engine ser. no. 44536857 through 44706125

6шт.

A77774

PACKAGE, REPAIR

KIT - piston and sleeve, Includes: piston stamped 9565, Includes: Ref. 1 - 7, engine ser. no. 44536857 through 44706125

6шт.

1

J907792

SLEEVE CYLINDER

SLEEVE - piston, engine ser. no. 44536857 through 44706125

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve, piston engine ser. no. 44536857 through 44706125

1шт.

A77746

PACKAGE

KIT - piston, standard, Includes: piston stamped 9930, Includes: Ref. 3A - 6, engine ser. no. 44536857 through 44706125

1шт.

A77773

PISTON ASSY.

KIT - piston, standard, Includes: piston stamped 9565 or 3164, Includes: Ref. 3A - 6, engine ser. no. 44536857 through 44706125

1шт.

3a

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 9930, engine ser. no. 44536857 through 44706125

1шт.

3a

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 9565 or 3164, engine ser. no. 44536857 through 44706125

1шт.

A77744

PACKAGE

KIT - piston ring, used with pistons stamped 9930, 9565 or 3164, Includes: Ref. 4 - 6, engine ser. no. 44536857 through 44706125

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, top, engine ser. no. 44536857 through 44706125

1шт.

5a

NSS

NOT SOLD SEPARAT

RING - keystone with reverse twist, compression, middle, engine ser. no. 44536857 through 44706125

1шт.

6

NSS

NOT SOLD SEPARAT

RING - oil, bottom, engine ser. no. 44536857 through 44706125

1шт.

7

G109044

SNAP RING,1.75", Int, #175

Ring, Snap, , replaces J901996 ring, engine s/n 44536857 through 44706125 1.75", Int, #175

2шт.

8

J901597

PIN

- piston, engine ser. no. 44536857 through 44706125

1шт.

A77799

PACKAGE, REPAIR

KIT - piston and sleeve, Includes: piston stamped 9565, Includes: Ref. 1A - 7, engine ser. no. 44706126 and after

6шт.

1a

J919937

SLEEVE CYLINDER,114.02mm ID x 130.66mm OD x 237.12mm L

SLEEVE - pistons, engine ser. no. 44706126 and after

1шт.

2

J907177

SEAL,118mm ID x 122.32mm OD x 4mm Thk

O-RING - sleeve, pistons engine ser. no. 44706126 and after

1шт.

A77773

PISTON ASSY.

KIT - piston, standard, Includes: piston stamped 9565 or 3164, Includes: Ref. 3A - 6, engine ser. no. 44706126 and after

1шт.

3a

NSS

NOT SOLD SEPARAT

PISTON - cylinder, stamped 9565 or 3164, engine ser. no. 44706126 and after

1шт.

A77744

PACKAGE

KIT - piston ring, used with piston stamped 9565 or 3164, Includes: Ref. 4 - 6, engine ser. no. 44706126 and after

1шт.

4

NSS

NOT SOLD SEPARAT

RING - compression, top, engine ser. no. 44706126 and after

1шт.

5a

NSS

NOT SOLD SEPARAT

RING - keystone with reverse twist, compression, middle, engine ser. no. 44706126 and after

1шт.

6

NSS

NOT SOLD SEPARAT

RING - oil, bottom, engine ser. no. 44706126 and after

1шт.

7

G109044

SNAP RING,1.75", Int, #175

Ring, Snap, , replaces J901996 ring, engine s/n 44706126 and after 1.75", Int, #175

2шт.

8

J901597

PIN

- piston, engine ser. no. 44706126 and after

1шт.

J914653

SHIM,.010" Thk

1шт.

Use to adjust protrussion when cylinder block has been remachined for service.

1шт.

J914654

SHIM,.015" Thk

1шт.

Use to adjust protrussion when cylinder block has been remachined for service.

1шт.

J914655

SHIM,.020" Thk

1шт.

Use to adjust protrussion when cylinder block has been remachined for service.

1шт.

Выбрано товаров: 42
