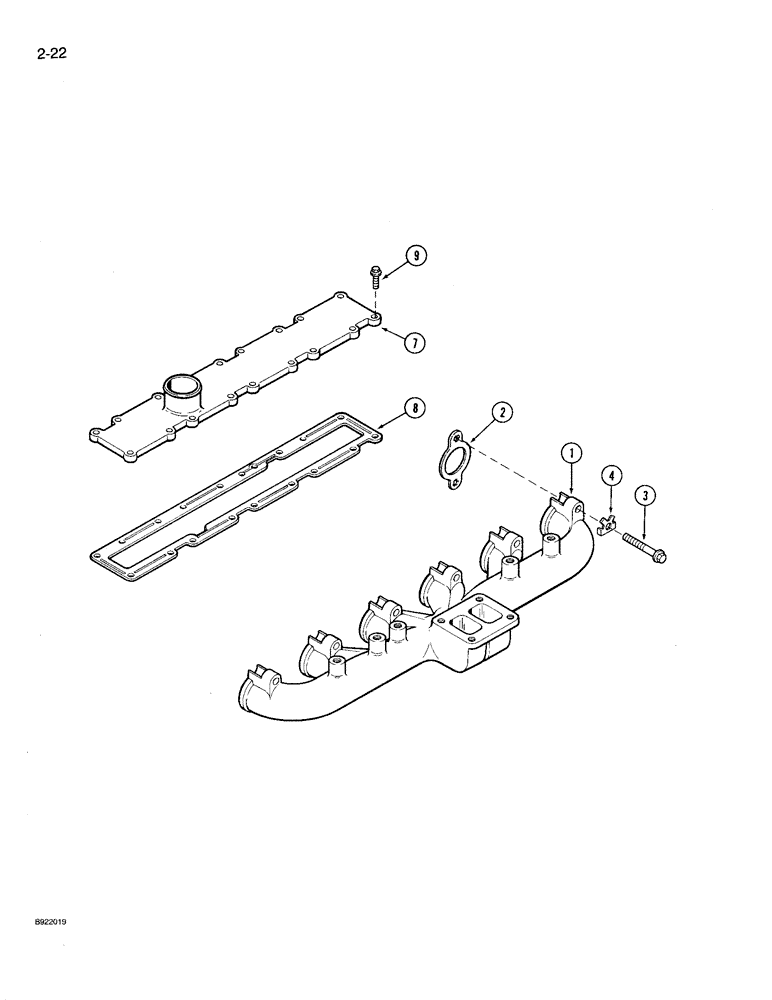

Запчасти Case IH 9210 (2-022) - MANIFOLDS, 6T-830 ENGINE, 9210 TRACTOR ONLY, EXHAUST (02) - ENGINE

1

J906720

MANIFOLD

- exhaust

1шт.

2

J911942

GASKET

- manifold, exhaust

1шт.

3

814-10070

BOLT,Hex, M10 x 1.5 x 70mm, Cl 8.8

- hex, 10 - 1.5 x 70 mm

12шт.

4

J914708

LOCKING PLATE

PLATE - locking, manifold bolt

12шт.

A77611

MANIFOLD

KIT - intake manifold, no longer available, order components separately, Includes: Ref. 7 & 8

1шт.

7

J906737

COVER ASSY

COVER - manifold, intake

1шт.

8

J914311

MANIFOLD GASKET

- intake manifold cover

1шт.

9

J918109

FLANGE BOLT,Hex, M8 x 1.25 x 25mm

SCREW, , Intake manifold cover to cylinder head Hex Flg Hd, M8 x 1.25 x 25

18шт.
