Запчасти Case IH 9210 (2-016) - WATER PUMP AND BELT TENSIONER, 6T-830 ENGINE, 6TA-830 ENGINE (02) - ENGINE

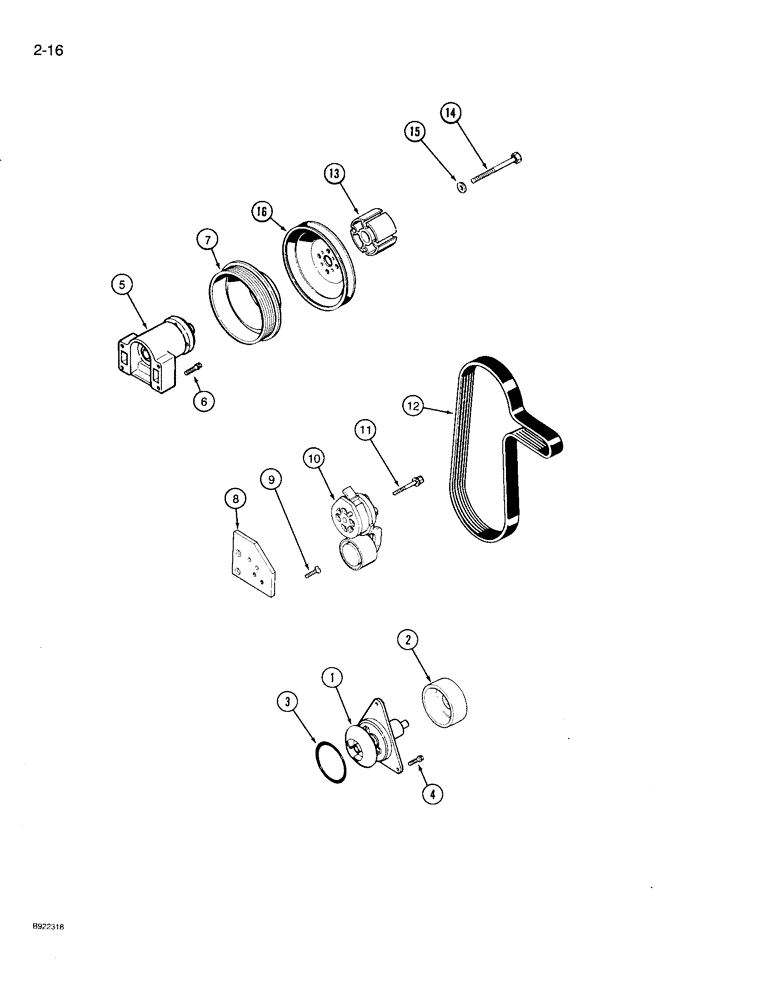

Схема запчастей Case IH 9210 - (2-016) - WATER PUMP AND BELT TENSIONER, 6T-830 ENGINE, 6TA-830 ENGINE (02) - ENGINE
15
2
1
3
10
8
7
12
13
14
4
5
9
6
16
11

Артикул

Название

Примечание

Количество

AR77704

PUMP, WATER

PUMP - water, remanufactured, North America only, component parts shown on this Figure do not apply to the remanufactured assembly

1шт.

Water pump remanufacture program is not available at this time, order A77704 water pump kit.

1шт.

J800976R

REMAN-WATER PUMP

9210, 9230, Both 6T-830 ENGINE, 6TA-830 ENGINE (9/90-5/95), Reman for New P/N AR77704

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

AC77704

CORE-HYDRAULIC PUMP

RETURN NUMBER - use this part number to return pump core for credit when using a remanufactured assembly

1шт.

Water pump remanufacture program is not available at this time, order A77704 water pump kit.

1шт.

A77704

PUMP, WATER

KIT - water pump, Includes: Ref. 1 - 3

1шт.

J800976R

REMAN-WATER PUMP

9210, 9230, Both 6T-830 ENGINE, 6TA-830 ENGINE (9/90-5/95), Reman for New P/N A77704

1шт.

J800976C

CORE-WATER PUMP

Return Number

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP - water

1шт.

2

NSS

NOT SOLD SEPARAT

PULLEY - water pump

1шт.

3

J902089

SEAL,0.139" Thk x 3.859" ID, -241

O-RING - sealing, water pump

1шт.

4

J900227

BOLT,Hex, M8 x 1.25 x 22mm, Cl 10.9

3шт.

5

J910738

SUPPORT ASSY.

SUPPORT - fan

1шт.

6

845-8050

BOLT,Hvy Hex, M8 x 50mm, Cl 8.8

- heavy hex flange, 8 - 1.25 x 50 mm

4шт.

7

J914462

PULLEY,163mm OD

- fan, 165 mm diameter, 1.1:1 ratio

1шт.

8

J919932

SUPPORT

BRACKET - mounting, tensioner

1шт.

9

J925186

SCREW,Torx, M8 x 1.25 x 25mm, Cl 10.9

Flat head cap, Special Torx Soc, M8 x 1.25 x 25

2шт.

10

J918944

BELT TENSIONER

TENSIONER - belt

1шт.

Ref 10, Pulley Kit A77817 includes this belt tensioner.

1шт.

11

854-10075

BOLT,Hvy Hex, M10 x 75mm, Cl 10.9

- heavy hex flange, 10 - 1.50 x 70 mm, class 10.9 (Replaces 854-10070)

1шт.

12

J911572

V-BELT,27.92mm W x 1549.4mm L, 8 Ribs

Fan 3.56 mm W x 1549.90 mm L, 8 Ribs

1шт.

13

A184523

SPACER

- fan

1шт.

14

814-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

- hex, 10 - 1.5 x 80 mm

4шт.

15

896-12010

WASHER,11mm ID x 21mm OD x 2.5mm Thk

- flat, 11 x 21 x 2.5 mm, hardened

4шт.

16

J919624

PULLEY

- accesory drive, replaces J908819 pulley

1шт.
