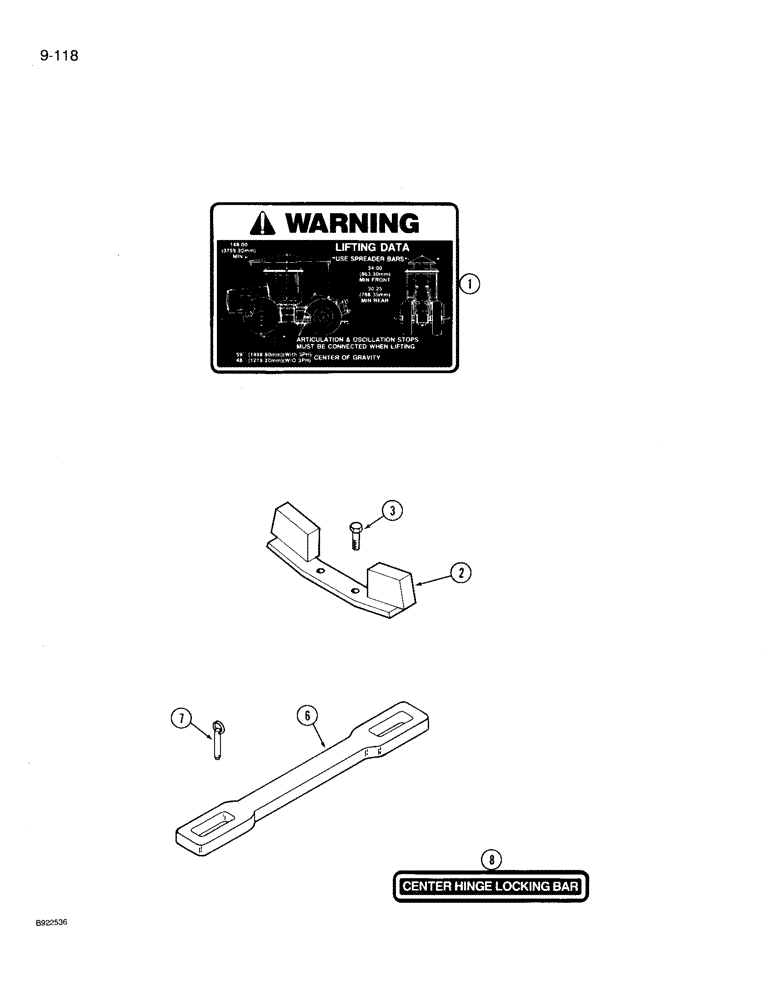

Запчасти Case IH 9210 (9-118) - SHIPPING AND LIFTING ACCESSORIES (09) - CHASSIS/ATTACHMENTS

1

2-7346T1

DECAL

- Warning, lifting data

2шт.

2

70-6386T1

SUPPORT

STOP - oscillation (Replaces 70-6094T1)

1шт.

Ref #2 - (5.19" between Bars.)

1шт.

The 70-6094T1, the Ref#2 replaced had 5.69" between bars.

1шт.

70-6386T1 = Step, 5.19" Between Bars

1шт.

70-6094T1 = Step, 5.69" Between Bars

1шт.

3

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

2шт.

6

70-5448T1

BAR

- lock, articulation stop

1шт.

7

19-5774

PIN

- retaining, 3/8 x 2-1/2 inch

2шт.

8

2-6874T1

DECAL

- Center Hinge Locking Bar

1шт.
