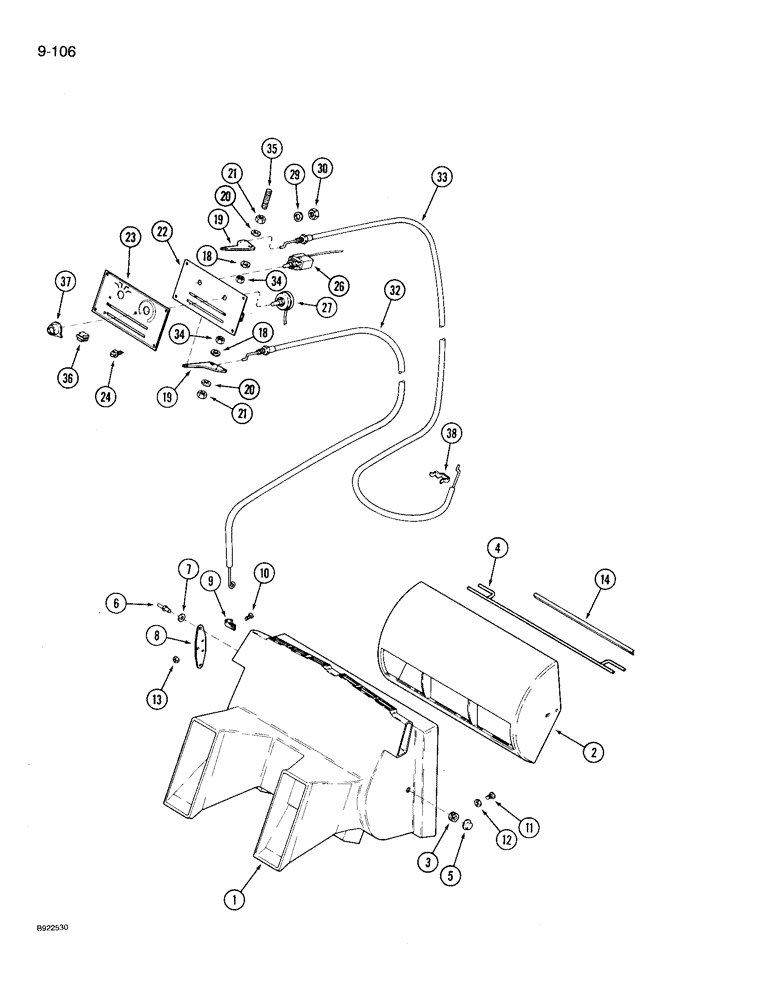

Запчасти Case IH 9210 (9-106) - CAB AIR CONDITIONER AND HEATER, CONTROLS AND AIR PLENUM, P.I.N. JCB0028400 AND AFTER (09) - CHASSIS/ATTACHMENTS

1

60-4917T2

DEFLECTOR

PLENUM - air conditioner and heater

1шт.

2

60-4698T1

FLAP

DOOR - heat/defrost director

1шт.

3

19-6129

NYLON BEARING

BEARING - snap in, door pivot

2шт.

4

60-4680T1

PIVOT

- door, plenum

1шт.

5

19-5758

PUSH-ON NUT

- push on

2шт.

6

19-157

RIVET

- pop, 1/8 x 3/8 inch

5шт.

7

19-6100

WASHER

- flat, No. 4

5шт.

8

60-4976T1

FIXING BRACKET

MOUNT - clamp, cable

1шт.

9

31-2511

CLAMP

- retaining, cable

1шт.

10

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

- pan head, No. 10 NC x 5/8 inch

2шт.

11

163-46

SCREW,Hex, #10 - 24 x 1", Gr 5

- hex head machine, No. 10 NC x 1 inch

8шт.

12

495-31022

WASHER,#10

16шт.

13

86632551

NUT,#10-24, GB

NUT, LOCK, #10-24, GB

10шт.

14

60-4681T1

SEAL

- plenum door (Order 2-7261T2 and, Serial Range: cut-length)

1шт.

18

19-6046

WASHER

- flat nylon, 5/16 x 5/8 x 1/8 inch

2шт.

19

60-6715T1

LEVER

- actuating, cable

2шт.

20

19-5995

SPRING WASHER

- spring, 5/16 inch

2шт.

21

231-2445

LOCK NUT,5/16"-24, GB

NUT - hex lock, 5/16 inch NF

2шт.

22

60-6713T2

PANEL

- control, climate

1шт.

23

60-6716T1

DECAL

- control panel

1шт.

24

280-13410

SELF-TAP SCREW,Slotted Hex Wash Hd, #8 x 5/8"

SCREW - hex washer tap, No. 8-18 x 5/8 inch

4шт.

26

92101C1

SWITCH

- thermostat

1шт.

27

92100C2

SWITCH

- blower

1шт.

29

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

3шт.

30

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

3шт.

32

60-4543T1

CABLE

- heater/defroster/air conditioner

1шт.

33

60-6718T1

CABLE

- actuating, water valve

1шт.

34

425-115

NUT,5/16"-24, G5

- hex, 5/16 inch NF

2шт.

35

19-6229

ROD,THREADED

ROD - lever, threaded

1шт.

36

60-6717T1

BUTTON

KNOB - lever, cable

2шт.

37

60-3958T1

BUTTON

Knob, Blower and Thermostat Switch

2шт.

38

1954626C1

SPRING CLIP

CLIP - heater cable

1шт.
