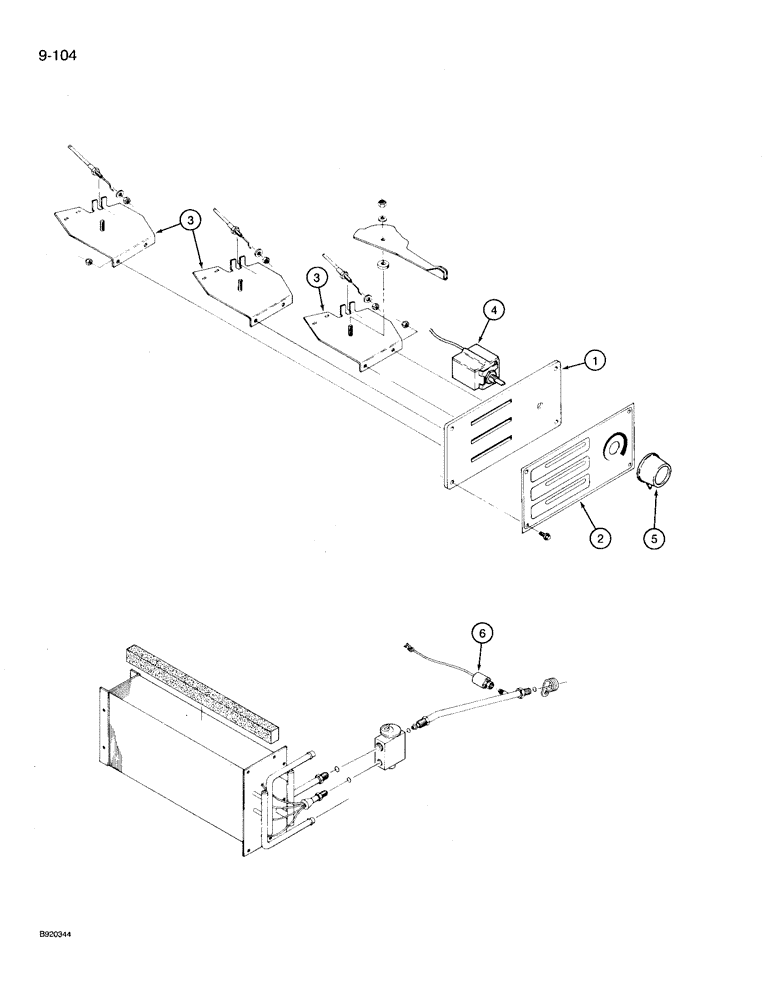

Запчасти Case IH 9210 (9-104) - AIR CONDITIONER THERMOSTAT KIT, PRIOR TO P.I.N. JCB0028400 (09) - CHASSIS/ATTACHMENTS

1

60-6849T1

PANEL

- control, thermostat

1шт.

2

60-6850T1

DECAL

- control panel

1шт.

3

60-6847T1

SUPPORT

BRACKET - mounting, control levers

3шт.

4

92101C1

SWITCH

- thermostat

1шт.

5

60-3958T1

BUTTON

Knob, Switch

1шт.

6

60-6854T1

SWITCH

- low pressure, air conditioner

1шт.

35-1927T91

KIT

- air conditioner thermostat, not available, order Ref. 1 - 6 and 8-82730 installation instructions

1шт.
