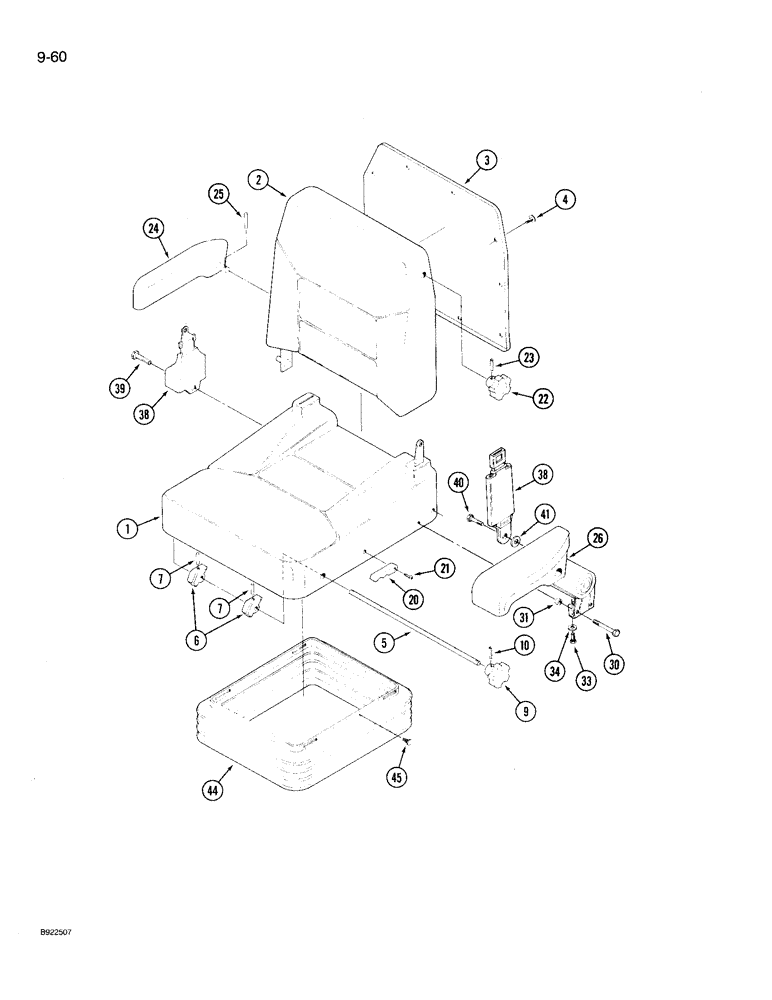

Запчасти Case IH 9210 (9-060) - CLOTH SEAT, AIR RIDE SUSPENSION, CAB UNITS (09) - CHASSIS/ATTACHMENTS

1987159C3

SEAT ASSY.

SEAT ASSEMBLY - air ride suspension, Includes: Ref. 1 - 45, 1 - 21 on Figure 9-062, 1 - 41 on Figure 9-064 and 1 - 55 on Figure 9-066

1шт.

1344004C3

SEAT ASSY.

KIT - cushion and backrest, seat, Includes: Ref. 1 - 45

1шт.

1

NSS

NOT SOLD SEPARAT

CUSHION ASSEMBLY - seat (Order 1974701C1), Includes: kit, cushion, and retainer

1шт.

1974701C1

SET OF PARTS

KIT - cushion, seat service, Includes: cushion and retainer

1шт.

NSS

NOT SOLD SEPARAT

CUSHION - seat

1шт.

NSS

NOT SOLD SEPARAT

RETAINER - cushion

48шт.

2

NSS

NOT SOLD SEPARAT

CUSHION ASSEMBLY - backrest (Order 1974702C1), Includes: kit, cushion, and retainer

1шт.

ref # 2- 1974702c2-is w/o inside frame.

1шт.

1974702C1

SET OF PARTS

KIT - cushion, backrest service, Includes: cushion and retainer

1шт.

NSS

NOT SOLD SEPARAT

CUSHION - backrest

1шт.

(if looking for back cushion w/frame use 132886a1)

1шт.

NSS

NOT SOLD SEPARAT

RETAINER - cushion

44шт.

3

1974713C1

PACKAGE

COVER ASSEMBLY - seat backrest, Includes: Ref. 4

1шт.

4

1974722C1

CLIP,ELECTRICAL

RETAINER - cover

10шт.

5

1343847C2

SHAFT ASSY.

SHAFT - seat tilt

2шт.

6

NSS

NOT SOLD SEPARAT

CAM - seat tilt

2шт.

7

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

2шт.

9

1981826C1

KNOB

- seat tilt

1шт.

10

138-85

LOCK PIN,5/32" x 2", Slotted

PIN, 5/32" x 2", Slotted

1шт.

20

1987212C1

PACKAGE

KNOB ASSEMBLY - backrest tilt, Includes: Ref. 21

1шт.

21

NSS

NOT SOLD SEPARAT

SCREW - oval head slotted machine, 6 x 12 mm

1шт.

22

1981828C1

BUTTON

KNOB - control, lumbar

1шт.

23

138-77

LOCK PIN,5/32" x 1", Slotted

PIN, 5/32" x 1", Slotted

1шт.

24

1974703C2

ARMREST ASSY.

KIT - armrest, seat, right, Includes: Ref. 25

1шт.

25

NSS

NOT SOLD SEPARAT

PIN - drive

1шт.

26

1344182C1

SET OF PARTS

KIT - armrest, left (with actuating arm and armrest pad)

1шт.

26

1974704C1

ARMREST

KIT - armrest, seat, left, armrest pad only

1шт.

30

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

- hex, 5/16 NC x 2-3/4 inch

2шт.

31

1343875C1

SPACER

- 25/64 ID x 1/2 inch

2шт.

33

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

34

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

1шт.

38

1344158C1

SET

BELT - seat

1шт.

39

328-724

BOLT,Hex, 7/16" - 20 x 1-1/2", Gr 8

1шт.

40

328-716

BOLT,Hex, 7/16" - 20 x 1", Gr 8

1шт.

41

1974732C1

WASHER

- flat, 25/64 x 1-1/8 x 1/8 inch

1шт.

44

1990647C1

PACKAGE

KIT - boot, suspension, Includes: Ref. 45

1шт.

45

700709502

FASTENER

PIN - mounting (bag of 25)

1шт.
