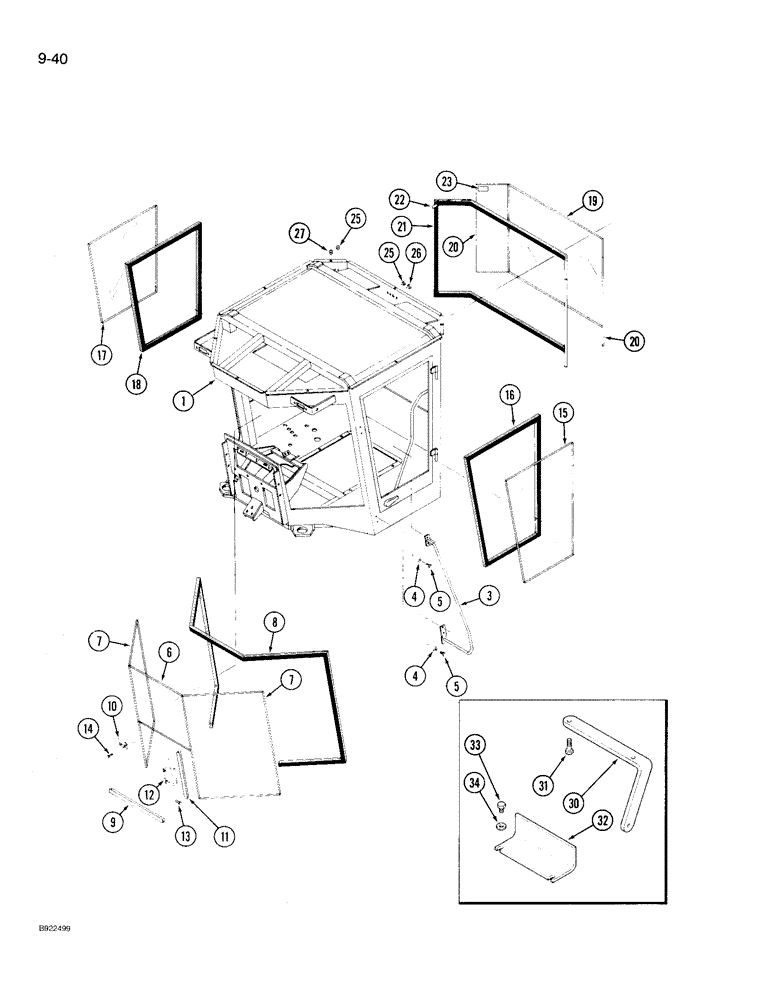

Запчасти Case IH 9210 (9-040) - CAB AND WINDOWS, WITHOUT RADIUSED CORNERS ON GLASS (09) - CHASSIS/ATTACHMENTS

REF

INSTRUCTION

CAB - tractor, machinery item, order from Machinery Price List

1шт.

1

60-6555T3

FRAME

- cab (Prior to P.I.N. JCB0028400)

1шт.

1

60-6810T1

CHASSIS

FRAME - cab (P.I.N. JCB0028400 and after)

1шт.

See Figure 9-042 for cab frame used with glass with radiused corners.

1шт.

3

60-5861T1

HANDLE

- grab, side

1шт.

4

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

4шт.

5

26-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 8

- hex, 3/8 NC x 5/8 inch, grade 8

4шт.

6

60-4315T1

WINDSHIELD

- front, center

1шт.

7

60-3540T1

CAB GLASS ASSY

- front, sides

2шт.

8

60-4682T1

MOLDING

SEAL - windshield molding (Order 60-3541T1 and, Serial Range: cut-length)

1шт.

9

60-3039T1

SEAL, GLASS

ISOLATOR - lower center windshield, 24-5/8 inch long (Order 02-6789T2 and, Serial Range: cut-length)

1шт.

10

60-2774T1

CLAMP

CLIP - retainer, lower windshield

2шт.

11

60-3040T1

SEAL, GLASS

ISOLATOR - front side windshield, 23 inch long (Order 02-6789T2 and, Serial Range: cut-length)

2шт.

12

60-4146T1

SUPPORT

BRACKET - retainer, windshield

2шт.

13

282-44712

SELF-TAP SCREW,Hex Wash Hd, 1/4"-20 x 3/4"

SCREW - hex washer, self-drilling, 1/4 NC x 3/4 inch

4шт.

14

60-6688T1

SCREW

- special, self-drilling

4шт.

15

60-4603T1

GLASS

WINDOW - door

1шт.

16

60-4602T1

SEAL, GLASS

SEAL - molding, door window

1шт.

17

60-3856T1

GLASS,CAB

WINDOW - side

1шт.

18

60-3857T1

SEAL, GLASS

SEAL - molding, side window

1шт.

19

60-3859T1

GLASS

WINDOW - back, center

1шт.

20

60-3858T1

GLASS

WINDOW - back, sides, Serial Range: -JCB0029907

2шт.

20

60-6864T1

GLASS,CAB

WINDOW back, sides, rounded radiused corners, Start Serial: JCB0029908

2шт.

21

60-3860T1

SEAL, GLASS

SEAL - rear windows

1шт.

22

20-1814T1

SEAL, GLASS

SLEEVE - heat shrink, seal retainer (Order 20-1830T2 and, Serial Range: cut-length)

1шт.

23

2-6879T1

DECAL

- Emergency Exit

1шт.

25

60-4582T1

PLUG

- hole, 5/16 inch diameter

13шт.

26

31-2175

PLUG

- hole, 3/4 inch diameter

5шт.

27

60-4401T1

PLUG

- hole, 5/8 inch diameter

2шт.

35-1924T91

SUPPORT ASSY.

KIT - mounting, monitor, not available, order components, Includes: Ref. 30 - 34

1шт.

30

60-6821T1

SUPPORT

BRACKET - mounting, monitor kit

1шт.

31

426-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 8

Monitor mounting kit Hex, 3/8"-16 x 1 1/4", G8, Full Thd

2шт.

32

60-6820T1

SUPPORT

BRACKET - mounting, phone, monitor kit

1шт.

33

426-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 8

- hex, 3/8 NC x 1/2 inch, grade 8, monitor mounting kit

2шт.

34

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch), Monitor mounting kit 3/8"

2шт.
