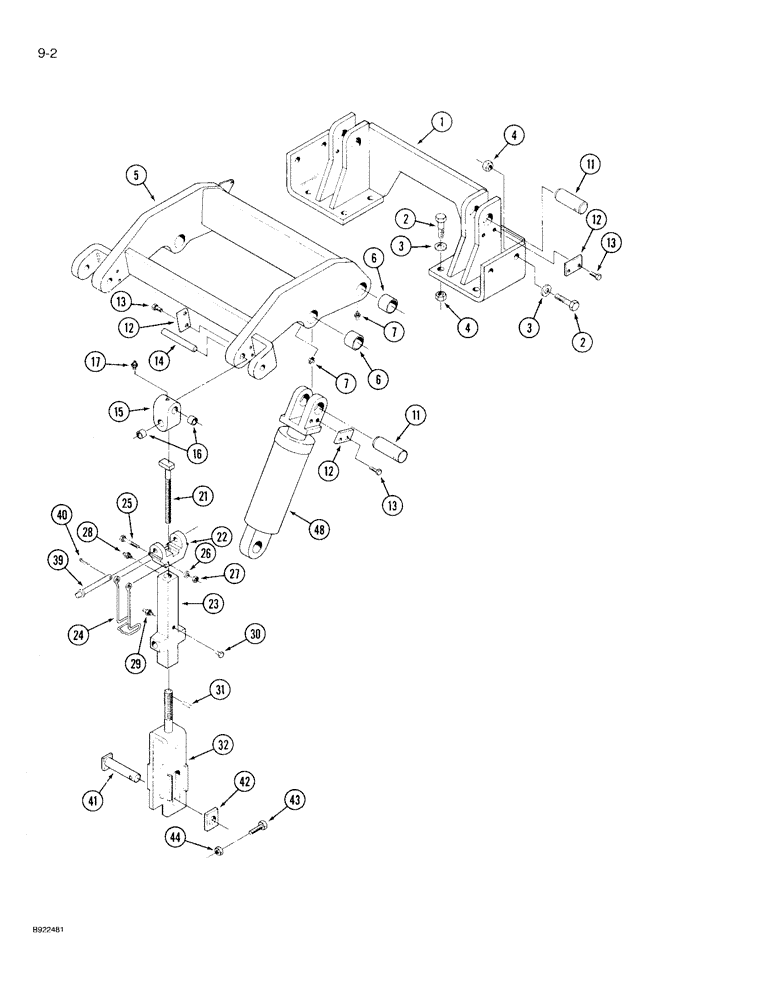

Запчасти Case IH 9210 (9-002) - HITCH ROCKERSHAFT, PRIOR TO P.I.N. JCB0028400 (09) - CHASSIS/ATTACHMENTS

35-1837T91

KIT - hitch, electronic controlled three point (When tractor has J I Case installed PTO) (Machinery item)

1шт.

35-1838T91

KIT - hitch, electronic controlled three point (When tractor does not have J I Case installed PTO) (Machinery item)

1шт.

35-1833T91

KIT - hitch, manual three point (When tractor has J I Case installed PTO) (Machinery item)

1шт.

35-1834T91

KIT - hitch, manual three point (When tractor does not have J I Case installed PTO) (Machinery item)

1шт.

1

70-5637T1

MOUNTING PARTS

MOUNT - rocker shaft

1шт.

2

326-1440

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 8

12шт.

3

496-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

- flat, 15/16 x 1-3/4 x 1/8 inch

12шт.

4

425-1014

NUT,7/8"-9, G5

NUT, 7/8"-9, G5

12шт.

5

70-5643T91

ROCKSHAFT

ROCKERSHAFT ASSEMBLY - hitch, Includes: Ref. 6 & 7

1шт.

6

70-5636T1

BUSHING

- pivot

4шт.

7

219-55

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

NIPPLE, LUBE, 90º, 1/8" NPT x .84" lg

4шт.

11

70-4601T1

PIN

- lift cylinder, top

4шт.

12

70-3082T2

LARGE PLATE

BLOCK - retaining, pin

6шт.

13

426-816

BOLT,Hex, 1/2" - 13 x 1", Gr 8

- hex, 1/2 NC x 1 inch, grade 8

12шт.

14

70-5411T1

PIN

- lift link

2шт.

15

70-5495T91

JOINT

SWIVEL ASSEMBLY - lift link, Includes: Ref. 16 & 17

2шт.

16

70-5497T1

RING

BUSHING - swivel, lift link

4шт.

17

219-1

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, straight, 1/8 PT x 21/32 inch

2шт.

70-5350T91

ARM, LIFT

LINK ASSEMBLY - lift, Includes: Ref. 21 - 32

2шт.

21

70-5410T1

STEM

ROD - leveling

1шт.

22

70-5496T1

FORK

YOKE - lift link

1шт.

23

149836C2

TURNBUCKLE

- lift link

1шт.

24

123464C2

CLAMP

- lock, turnbuckle

1шт.

25

426-664

BOLT,Hex, 3/8" - 16 x 4", Gr 8

- hex, 3/8 NC x 4 inch

1шт.

26

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

2шт.

27

232-4136

LOCK NUT,3/8"-16, GC

NUT, LOCK, 3/8"-16, GC

1шт.

28

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight 1/4 inch drive type

1шт.

29

219-23

LUBE NIPPLE,1/4" - 18 NPTF

FITTING - grease, straight 1/4 PT x 15/16 inch

1шт.

30

221-841

PLUG

- hex socket, 1/4 inch PT

1шт.

31

138-2007

PIN,1/4" x 1 1/4", Coiled

1шт.

32

70-5349T1

CLEVIS

- hitch

1шт.

39

70-5471T1

PIN

- head, lift link

2шт.

40

32-1620

COTTER PIN,1/4" x 1 1/4"

PIN, SPLIT (COTTER), 1/4" x 1 1/4"

2шт.

41

70-5025T2

PIN

- lift link, lower

2шт.

42

70-4425T1

LARGE PLATE

PLATE - retaining, pin

2шт.

43

326-632

BOLT,Hex, 3/8" - 16 x 2", Gr 8

2шт.

44

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex lock, 3/8 inch NC

2шт.

48

50-2441T91

CYLINDER

ASSEMBLY - hitch lift, See Figure 8-038

2шт.
