Запчасти Case IH 9210 (8-020) - HYDRAULIC OIL FILTER (08) - HYDRAULICS

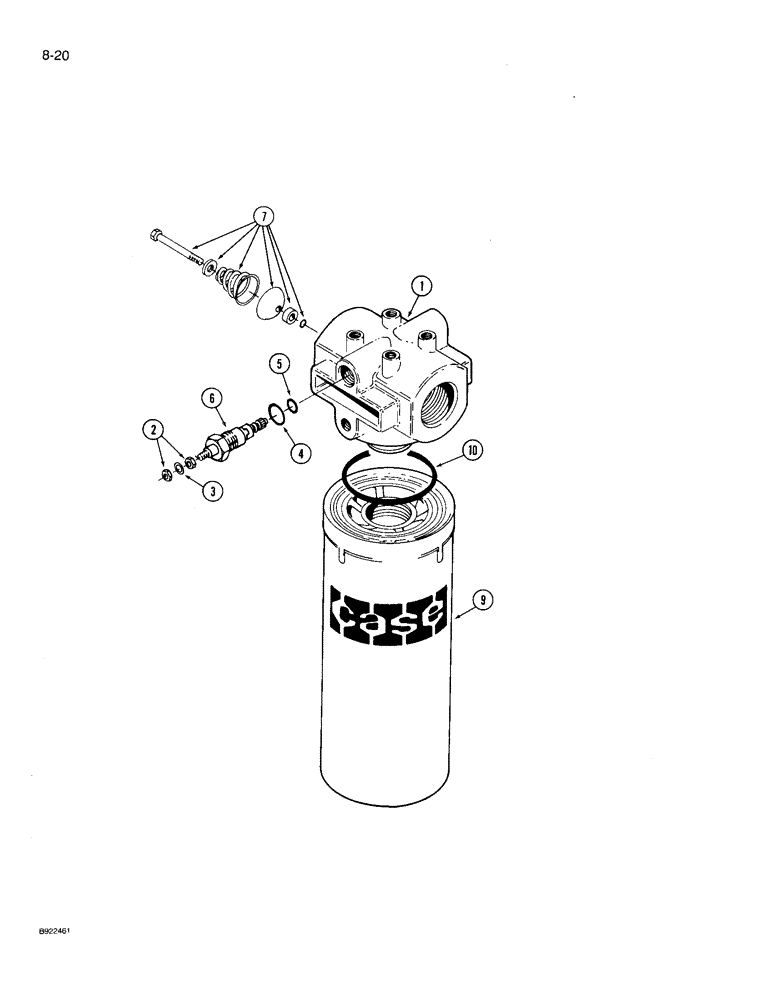

Схема запчастей Case IH 9210 - (8-020) - HYDRAULIC OIL FILTER (08) - HYDRAULICS
4
3
7
10
2
9
1
5
6

Артикул

Название

Примечание

Количество

D131293

FILTER

ASSEMBLY - hydraulic oil, Includes: Ref. 1 - 10

1шт.

1

NSS

NOT SOLD SEPARAT

HEAD ASSEMBLY - filter, Includes: Ref. 2 - 7

1шт.

N6755

PRESSURE SWITCH

ASSEMBLY - restriction KIT - seal, restriction indicator, Includes: Ref. 2 - 6

1шт.

2

129-667

NUT,#10-32, LH

2шт.

3

493-21020

LOCK WASHER,Int Tooth, #10

WASHER, LOCK, Int Tooth, #10

1шт.

5

238-5011

O-RING,0.07" Thk x 0.301" ID, -11, Cl 5, 75 Duro

-011, 70 Duro, .301" ID x .070" Thk

1шт.

6

NSS

NOT SOLD SEPARAT

INDICATOR - restriction

1шт.

7

NSS

NOT SOLD SEPARAT

VALVE - bypass

1шт.

N9025

HYDRAULIC OIL FILTER

KIT - element, filter replacement, Includes: Ref. 9 & 10

1шт.

9

NSS

NOT SOLD SEPARAT

ELEMENT - filter

1шт.

10

70923815

O-RING,-230, 70 Duro, 2.484" ID x .139" Thk

-, Serial Range: filter-head

1шт.

4

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

Выбрано товаров: 12
