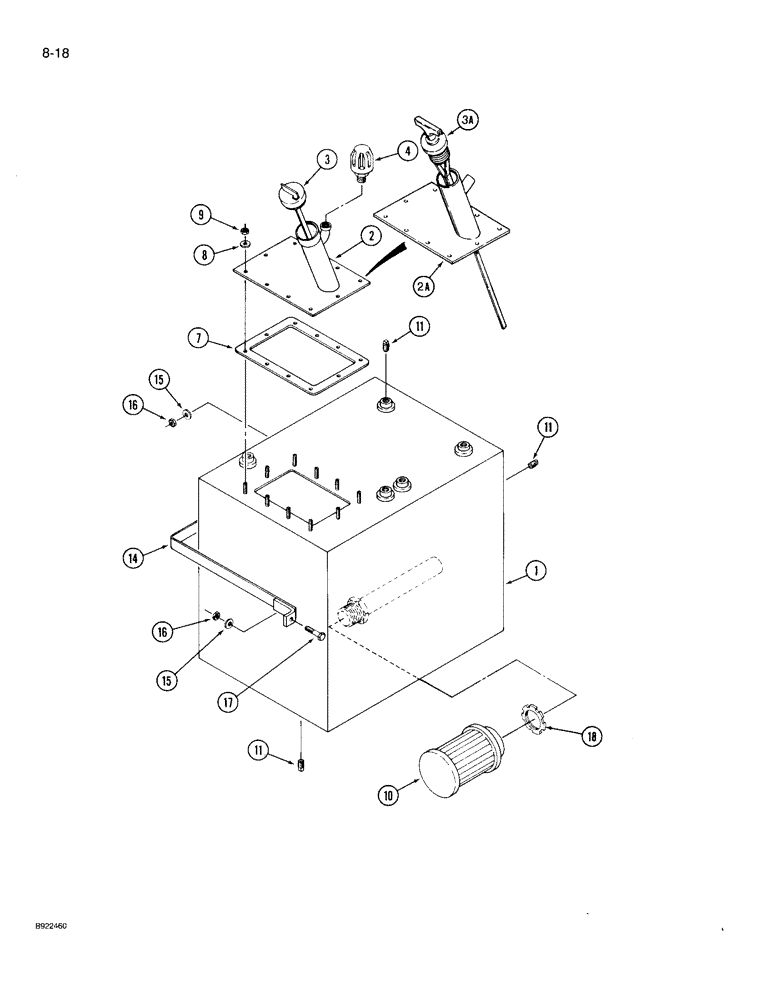

Запчасти Case IH 9210 (8-018) - HYDRAULIC OIL TANK (08) - HYDRAULICS

1

50-3054T2

TANK, HYDRAULIC OIL

TANK - hydraulic oil

1шт.

2

50-3224T1

PLATE

- cover, no longer available, replaced with 50-3523T1 plate and 50-3522T1 dipstick, Ref. 2A & 3A

1шт.

2a

50-3523T1

COVER

PLATE - cover, hydraulic oil tank

1шт.

3

50-2558T1

DIPSTICK

- oil fill, used with 50-3224T1 cover plate, Ref. 2

1шт.

3a

50-3522T1

DIPSTICK

- oil fill, used with 50-3523T1 cover plate, Ref. 2A

1шт.

4

1971726C1

BREATHER,1/4" - 18

- hydraulic tank

1шт.

Ref #4 - Later 9200 tractors used a metal breather instead of plastic. 90-7732T1

1шт.

7

50-2429T1

GASKET

- cover

1шт.

8

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE

10шт.

9

425-106

NUT,3/8"-16, Cl 5

10шт.

10

50-2029T1

FILTER SCREEN

FILTER - suction, screen

1шт.

11

31-35

PLUG

- square head pipe, 1/2 inch PT

1шт.

14

50-3058T1

BAND

- mounting, tank

1шт.

15

495-21044

WASHER,3/8"

(flat, 7/16 x 1 x 5/64 inch) 3/8"

2шт.

16

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex lock, 3/8 inch NC

2шт.

17

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

18

19-953

LOCK NUT

NUT - slotted jam, 2 inch PT

1шт.
