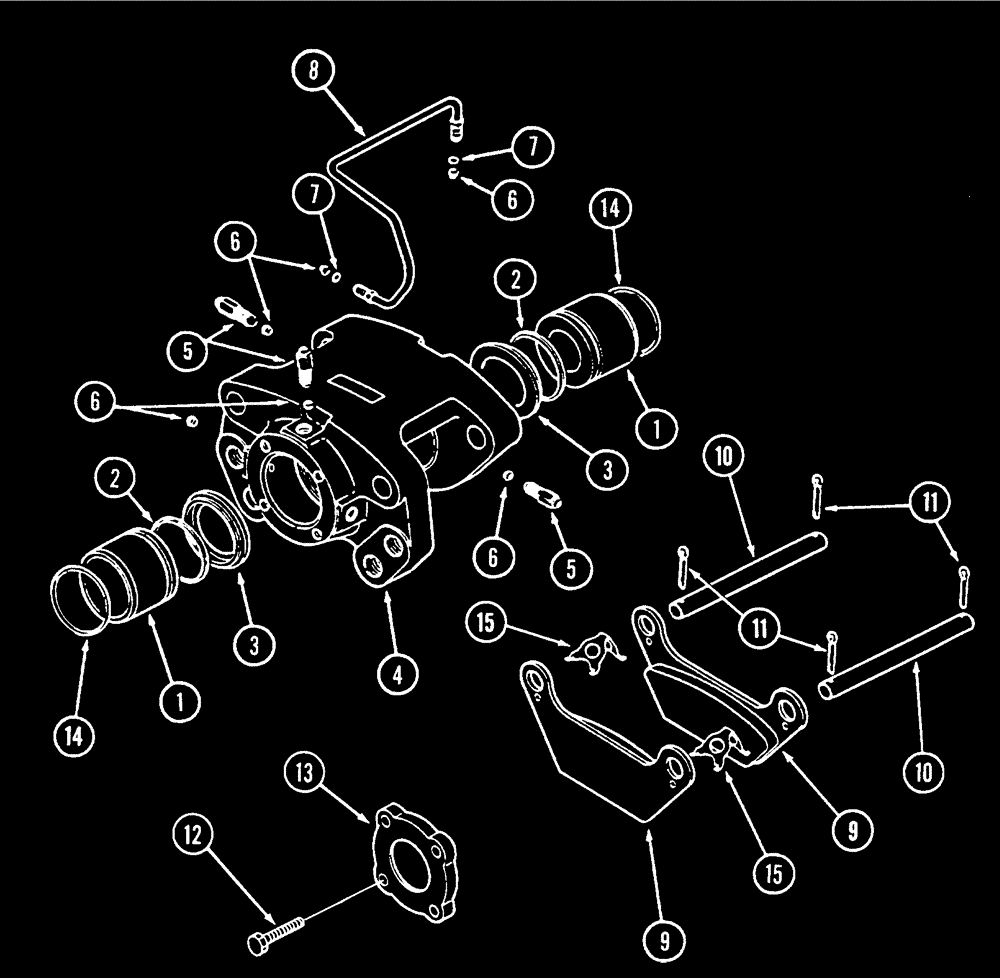

Запчасти Case IH 9210 (7-017A) - BRAKE CALIPER ASSEMBLY, WITHOUT PARKING BRAKE, P.I.N. JEE0032460 AND AFTER (07) - BRAKES

90-7649T91

CALIPER

ASSEMBLY - without parking brake, Includes: Ref. 1 - 15

1шт.

1

90-7651T1

PISTON

- caliper

2шт.

2

A46968

SEAL

- piston

2шт.

3

A46969

BELLOWS

BOOT - dust

2шт.

4

NSS

NOT SOLD SEPARAT

HOUSING - brake caliper

1шт.

5

A46962

BLEEDER,Bleeder, 7/16" - 24 x 1.469"

SCREW - bleeder

3шт.

6

A46961

INSERT

SEAT - bleeder screw insert

6шт.

7

90-7316T1

O-RING

tube

2шт.

8

90-7631T1

TUBE

- brake

1шт.

9

90-7506T1

BRAKE LINING

PAD - brake

2шт.

10

A46971

PIN

- brake pad mounting

2шт.

11

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

4шт.

12

426-616

BOLT,Hex, 3/8" - 16 x 1", Gr 8

8шт.

13

A46972

HOUSING

CAP - end

2шт.

14

238-5143

O-RING,0.103" Thk x 2.425" ID, -143, Cl 5, 75 Duro

2шт.

15

90-7507T1

SPRING

- release, brake pad

2шт.
