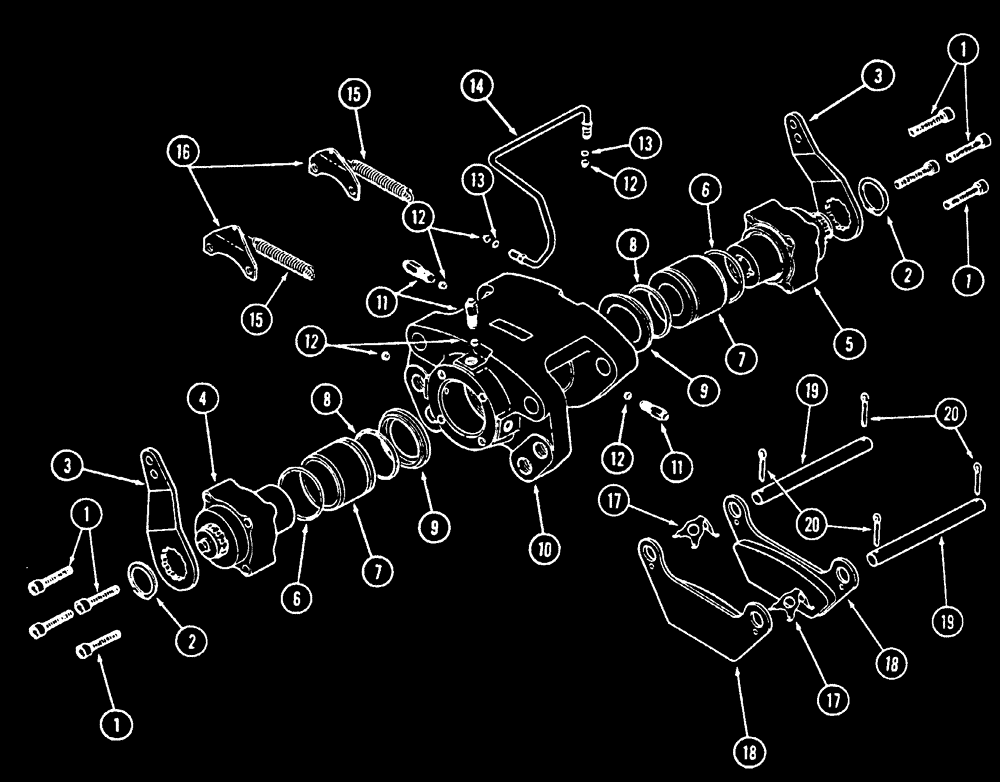

Запчасти Case IH 9210 (7-015A) - BRAKE CALIPER ASSEMBLY, WITH PARKING BRAKE, P.I.N. JEE0032460 AND AFTER (07) - BRAKES

90-7650T91

BRAKE CALIPER

CALIPER ASSEMBLY - brake, Includes: Ref. 1 - 20

1шт.

90-8368T92R

REMAN-BRAKE ASSY.

1шт.

90-8368T92C

CORE-BRAKE ASSY.

Return Number

1шт.

1

61-33832

HEX SOC SCREW,3/8 - 16 x 2"

BOLT - hex socket, 3/8 NC x 2-1/4 inch

8шт.

2

800-44035

SNAP RING,M35, Ext

RING - snap

2шт.

3

90-7656T1

LEVER

- parking brake actuating

2шт.

4

90-7655T1

ACTUATOR

- parking brake, gold colored shaft

1шт.

5

90-7654T1

ACTUATOR

- parking brake, silver colored shaft

1шт.

6

90-7652T1

SEAL

O-RING, actuator mount seal

2шт.

7

90-7651T1

PISTON

- caliper

2шт.

8

A46968

SEAL

- piston

2шт.

9

A46969

BELLOWS

BOOT - dust

2шт.

10

NSS

NOT SOLD SEPARAT

HOUSING - brake caliper

1шт.

11

A46962

BLEEDER,Bleeder, 7/16" - 24 x 1.469"

SCREW - bleeder

3шт.

12

A46961

INSERT

SEAT - bleeder screw insert

6шт.

13

90-7316T1

O-RING

tube

2шт.

14

90-7631T1

TUBE

- brake (Replaces 90-7632T1)

1шт.

15

90-2902T1

SPRING

parking brake return

2шт.

16

90-7653T1

SPRING KIT

BRACKET - spring

2шт.

17

90-7507T1

SPRING

- release, brake pad

2шт.

18

90-7506T1

BRAKE LINING

PAD - brake

2шт.

19

A46971

PIN

- brake pad mounting

2шт.

20

432-1020

COTTER PIN,5/32" x 1 1/4"

PIN, SPLIT (COTTER), 5/32" x 1 1/4"

4шт.
