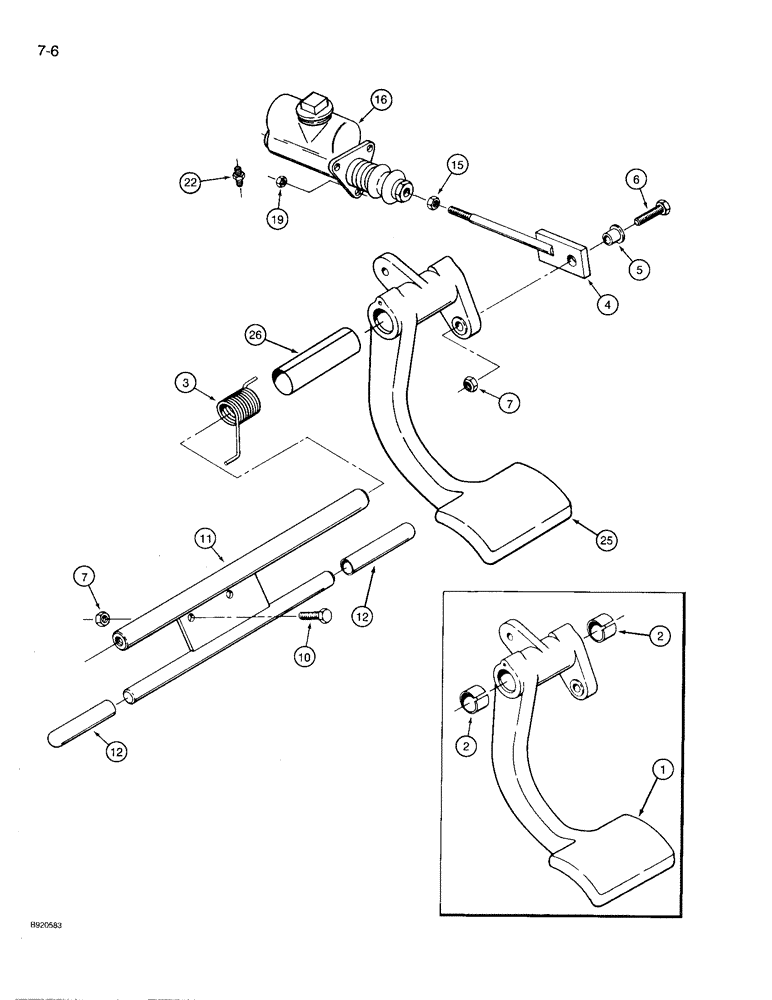

Запчасти Case IH 9210 (7-006) - BRAKE CONTROLS, P.I.N. JCB0028217 AND AFTER, IF EQUIPPED (07) - BRAKES

1

60-4251T2

PEDAL

- brake, no longer available, order 60-6835T1 and 60-6836T1, Ref. 25 and 26 below

1шт.

2

24-208

BEARING ASSY,1" ID x 1.125" OD x 0.75"

BEARING - pivot, split (Used with Ref. 1 only)

2шт.

3

11-19

SPRING

- return, pedal

1шт.

4

60-4306T1

THREADED ROD

ROD - push, master cylinder

1шт.

5

60-4337T1

FLANGED BEARING

BEARING - flanged

1шт.

6

413-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1шт.

7

19-653

LOCK NUT

- hex lock, 1/2 inch NC

3шт.

10

426-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 8

2шт.

11

60-5074T1

PEDAL

MOUNT - pedal, brake and clutch

1шт.

12

1-3520

BUMPER

- pedal stop, brake and clutch

2шт.

15

19-92

NUT,7/16"-20, G2

- hex, 7/16 inch NF

1шт.

16

90-7554T91

MASTER CYLINDER

CYLINDER ASSEMBLY - master, brake, See Figure 7-022

1шт.

Ref #16 - 7/8" Single Stage Master Cylinder

1шт.

19

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex lock, 3/8 inch NC

3шт.

22

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 7/16-20 thread x 1/8 inch PT

1шт.

25

60-6835T1

PEDAL

- brake (If equipped)

1шт.

26

60-6836T1

RING RACE

BEARING - pivot (Used with Ref. 25 only)

1шт.
