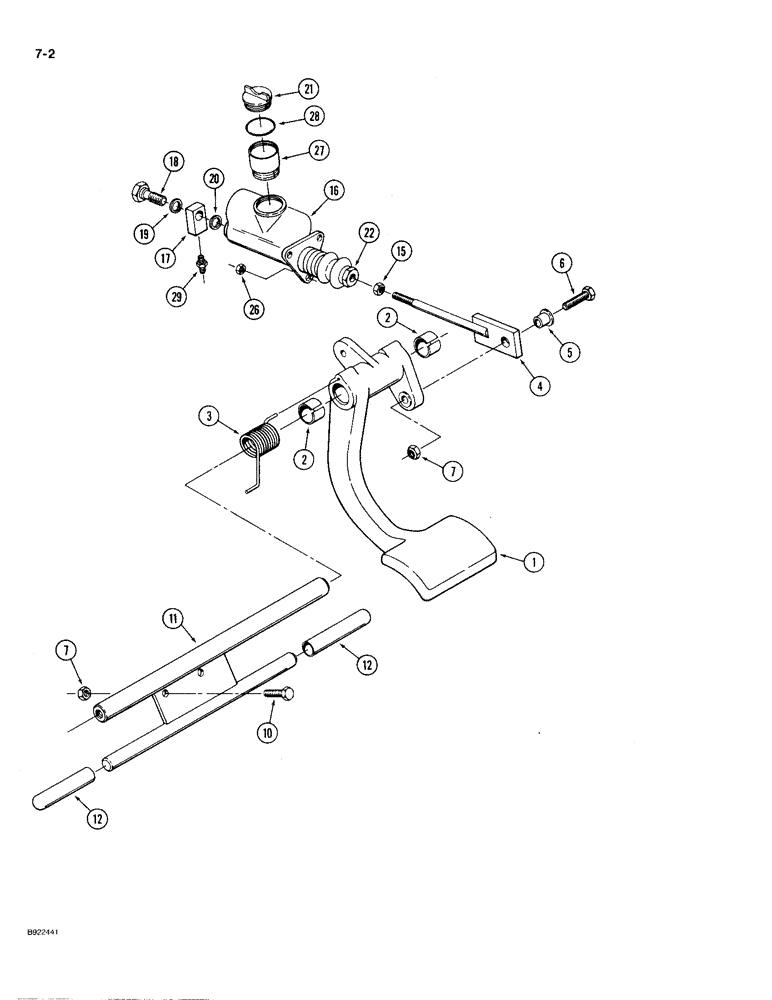

Запчасти Case IH 9210 (7-002) - BRAKE CONTROLS (07) - BRAKES

1

60-4251T2

PEDAL

- brake, no longer available, order 60-6835T1 and 60-6836T1, Ref. 25 & 26 on Figure 7-004

1шт.

2

24-208

BEARING ASSY,1" ID x 1.125" OD x 0.75"

BEARING - pivot, split

2шт.

3

11-19

SPRING

- return, pedal

1шт.

4

60-4306T1

THREADED ROD

ROD - push, master cylinder

1шт.

5

60-4337T1

FLANGED BEARING

BEARING - flanged

1шт.

6

326-832

BOLT,Hex, 1/2" - 13 x 2", Gr 8

1шт.

7

19-653

LOCK NUT

- hex lock, 1/2 inch NC

3шт.

10

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

11

60-5074T1

PEDAL

MOUNT - pedal, brake and clutch

1шт.

12

1-3520

BUMPER

- pedal stop, brake and clutch

2шт.

15

19-92

NUT,7/16"-20, G2

- hex, 7/16 inch NF

1шт.

16

1-2961T91

KIT

CYLINDER - master, brake

1шт.

35-1079

SEAL KIT

- rebuild, master cylinder, Includes: Ref. 17 - 22

1шт.

35-1079 THIS IS SEAL KIT FOR 1-2961T91 CYLINDER WHICH HAS A 1.000" BORE. 35-1894T91 IS SEAL KIT FOR 90-7554T91 WHICH HAS A .88" BORE.

1шт.

17

31-664

FITTING

- swivel

1шт.

18

31-663

BANJO BOLT

BOLT - hex, outlet pod

1шт.

19

1-1799

GASKET

- fitting

1шт.

20

1-1800

GASKET

- fitting, copper

1шт.

21

1-9956

PLUG

CAP - master cylinder

1шт.

22

1-2960

STEM

ROD - push, master cylinder with boot

1шт.

26

231-1446

NUT,3/8" - 16, Gr 5

NUT - hex lock, 3/8 inch NC

3шт.

27

60-4546T1

INSERT

EXTENSION - stand off, master cylinder

1шт.

28

60-4581T1

GASKET

- cap, master cylinder

1шт.

29

218-441

HYD CONNECTOR,7/16" - 20 Male JIC x 1/8" - 27 Male NPTF

ADAPTER - straight, 7/16-20 flare x 1/8 inch PT

1шт.
