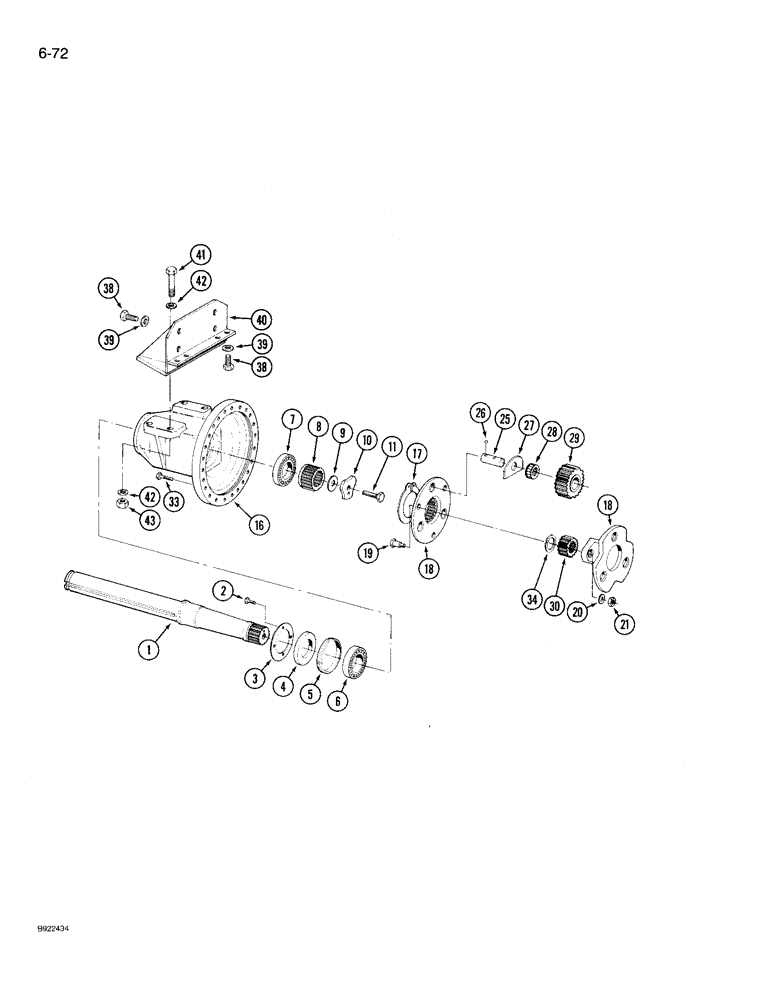

Запчасти Case IH 9210 (6-072) - AXLE ASSEMBLY, AXLE SHAFT AND HOUSING, K593 BAR AXLE (CONTD) (06) - POWER TRAIN

90-6994T91

AXLE, FRONT

AXLE ASSEMBLY - front (Without differential lock), Includes: Ref. 1 - 34, 1 - 20 on Figure 6-068, 22 - 49 on Figure 6-070 and 1 - 34 on Figure 6-074

1шт.

90-6995T91

REAR AXLE

AXLE ASSEMBLY - rear (Without differential lock), Includes: Ref. 1 - 34, 1 - 20 on Figure 6-068, 22 - 49 on Figure 6-070 and 1 - 34 on Figure 6-074

1шт.

90-6996T91

AXLE, FRONT

AXLE ASSEMBLY - front (With difterential lock), Includes: Ref. 1 - 34, 1 - 20 on Figure 6-068, 22 - 49 on Figure 6-070 and 1 - 34 on Figure 6-074

1шт.

90-6997T91

REAR AXLE

AXLE ASSEMBLY - rear (With differential lock), Includes: Ref. 1 - 34, 1 - 20 on Figure 6-068, 22 - 49 on Figure 6-070 and 1 - 34 on Figure 6-074

1шт.

1

33-1500T1

AXLE SHAFT

SHAFT - axle

2шт.

2

30191R1

BOLT,Hex, M6 x 1 x 12mm, Cl 10.9, Full Thd

- hex, 6 - 1 x 12 mm, class 10.9

8шт.

3

33-1244T1

WEAR PLATE

PLATE - end cover

2шт.

4

33-1245T1

RING

- shoulder

2шт.

5

33-1246T1

OIL SEAL

- oil, axle shaft

2шт.

6

33-1247T1

TAPERED BEARING,105mm ID x 160mm OD x 43mm W

BEARING - tapered roller

2шт.

7

33-1248T1

TAPERED BEARING,90mm ID x 160mm OD x 32.5mm W

BEARING - tapered roller

2шт.

8

33-1249T1

PINION

GEAR - pinion drive

2шт.

9

33-1250T1

SHIM

- bearing, 0.10 mm thick

1шт.

9

33-1251T1

SHIM

- bearing, 0.15 mm thick

1шт.

9

33-1252T1

SHIM

- bearing, 0.25 mm thick

1шт.

9

33-1253T1

SHIM

- bearing, 0.70 mm thick

1шт.

10

33-1254T1

WASHER

- retainer, axle

2шт.

11

90-4480T1

SCREW,Hex, M22 x 1.5 x 65mm, Gr 10.9

BOLT - hex, 22 - 2.5 x 64 mm

2шт.

16

33-1501T1

HOUSING

- axle

2шт.

17

90-2562T1

RING, SNAP

RING - snap

2шт.

33-1502T91

CARRIER

ASSEMBLY - planetary, Includes: Ref. 18 - 21

2шт.

18

NSS

NOT SOLD SEPARAT

CARRIER - pinion

2шт.

19

16-1608

SCREW,Hex Shldr

BOLT - hex shouldered

6шт.

20

16-1599

WASHER

- flat

6шт.

21

16-1598

NUT

- hex, 16 mm - 1.5

6шт.

25

90-4536T1

LARGE PIN

SHAFT - pinion gear

6шт.

Ref #25 - 3.937" long, 1.970 diameter, Center Hole .625" Dia. 2 1/2" Deep.

1шт.

26

16-1607

BALL

- steel

6шт.

27

90-2564T1

LARGE PLATE

PLATE - thrust

12шт.

28

1-8340

BEARING, NEEDLE

BEARING - needle roller, 2 used with each pinion gear, Ref. 29

12шт.

29

33-1503T1

PINION

GEAR - pinion, 37 tooth

6шт.

30

33-1504T2

GEAR

- sun, 20 tooth

2шт.

33

33-1505T1

CAPSCREW,M14 x 1.5 x 120mm

BOLT - hex, 14 - 2 x 120 mm

24шт.

33

33-1513T1

CAPSCREW,M14 x 1.5 x 100mm

BOLT - hex, 14 - 2 x 110 mm

24шт.

34

90-7328T1

RING, SNAP

RING - snap

2шт.

38

426-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 8

16шт.

39

19-5723

WASHER

- flat, 3/4 x 1-1/2 x 5/32 inch

16шт.

40

90-6041T2

AXLE

MOUNT - axle, front

2шт.

41

26-1664

BOLT,Hex, 1" - 8 x 4", Gr 8

- hex, 1 NC x 4 inch, grade 8

8шт.

42

496-21106

WASHER,1 1/16" x 2" x .209", HDN

- flat, 1-1/16 x 2 x 13/64 inch, Hardened

8шт.

43

232-41116

LOCK NUT,1"-8, GC

NUT, LOCK, 1"-8, GC

8шт.
