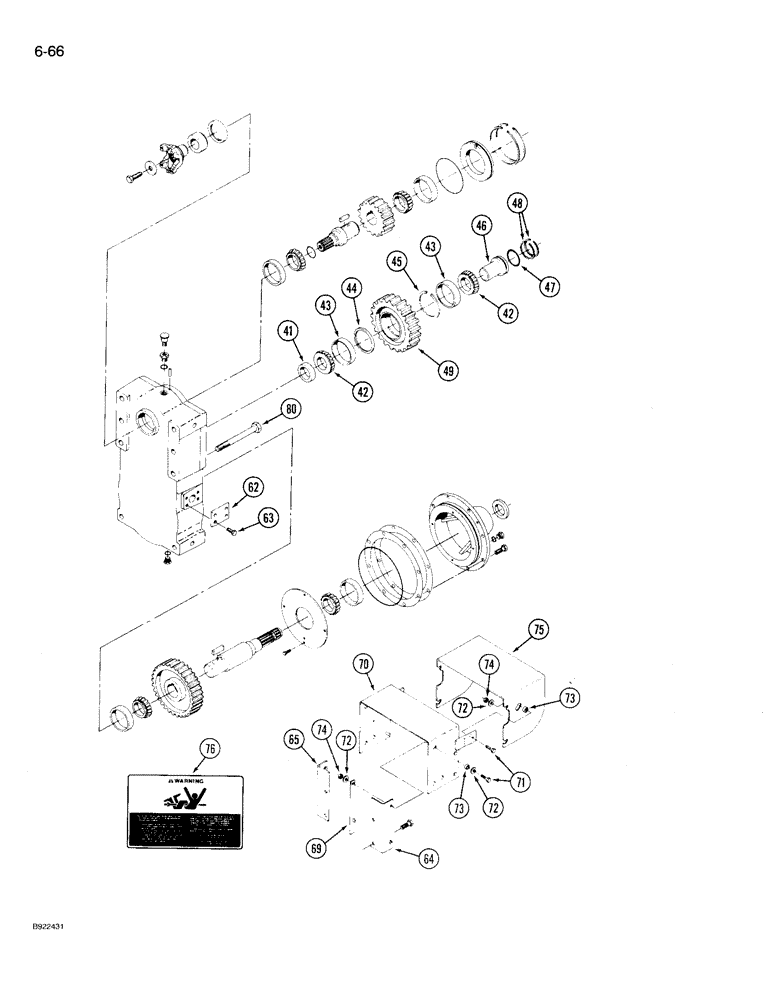

Запчасти Case IH 9210 (6-066) - PTO TRANSFER CASE ASSEMBLY (CONTD) (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
90-6951T91
BOX
CASE ASSEMBLY - transfer, PTO, Includes: Ref. 41 - 65 and 1 - 38 on Figure 6-064
1шт.
41
90-4425T2
BUSHING
- spacer, center shaft
1шт.
42
90-3580T1
BEARING, ROLLER,50.8mm ID x 24.61mm W
BEARING - tapered roller bearing
2шт.
43
90-3581T1
BEARING CUP,96.86mm OD x 19.45mm W
CUP - bearing
2шт.
44
90-3577T1
SPACER
- gear, center shaft
1шт.
45
19-6058
RING, SNAP
RING - snap
1шт.
46
90-4418T1
PIN
- center shaft
1шт.
47
90-4424T1
O-RING,2.359" ID x 2.637" OD x 0.139"
- seal, 2-3/8 x 2-5/8 inch
1шт.
48
90-5743T1
RING, SNAP
RING - snap, 0.093 inch thick
1шт.
48
90-5744T1
RING, SNAP
RING - snap, 0.089 inch thick
1шт.
48
90-5745T1
RING, SNAP
RING - snap, 0.085 inch thick
1шт.
48
90-5746T1
RING, SNAP
RING - snap, 0.081 inch thick
1шт.
48
90-5747T1
RING, SNAP
RING - snap, 0.077 inch thick
1шт.
48
90-5748T1
RING, SNAP
RING - snap, 0.073 inch thick
1шт.
48
90-5749T1
RING, SNAP
RING - snap, 0.069 inch thick
1шт.
48
90-5750T1
RING, SNAP
RING - snap, 0.065 inch thick
1шт.
49
90-6939T1
GEAR
- center, 49 Tooth
1шт.
62
90-6212T1
LARGE PLATE
PLATE - cover
1шт.
63
413-716
BOLT,Hex, 7/16" - 14 x 1", Gr 5
4шт.
64
90-5870T1
ANGLE BAR
MOUNT - shield, left
1шт.
65
90-5869T1
ANGLE BAR
MOUNT - shield, right
1шт.
69
90-5866T1
RETAINER
- bracket
2шт.
70
90-5868T1
SUPPORT
BRACKET - mounting, shield
1шт.
71
413-620
BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5
- hex, 3/8 NC x 1-1/4 inch
4шт.
72
495-11041
WASHER,0.406" ID x 0.812" OD x 0.065" W
(Flat, 13/32 x 13/16 x 1/16") 3/8", SAE
6шт.
73
19-6013
SPACER
- pivot
4шт.
74
231-1446
NUT,3/8" - 16, Gr 5
NUT - hex lock, 3/8 inch NC
4шт.
75
90-3484T1
SHIELD
- PT0
1шт.
76
2-7125T1
DECAL
- Warning, rotating driveline
1шт.
80
413-12112
BOLT,Hex, 3/4" - 10 x 7", Gr 5
- hex, 3/4 NC x 7 inch (Without three point hitch)
6шт.
80
413-12136
BOLT,Hex, 3/4" - 10 x 8-1/2", Gr 5
- hex, 3/4 NC x 8-1/2 inch, grade 8 (Top holes) (With three point hitch system)
6шт.
80
413-12112
BOLT,Hex, 3/4" - 10 x 7", Gr 5
- hex, 3/4 NC x 7 inch, grade 8 (Bottom holes) (With three point hitch system)
2шт.
Выбрано товаров: 32
