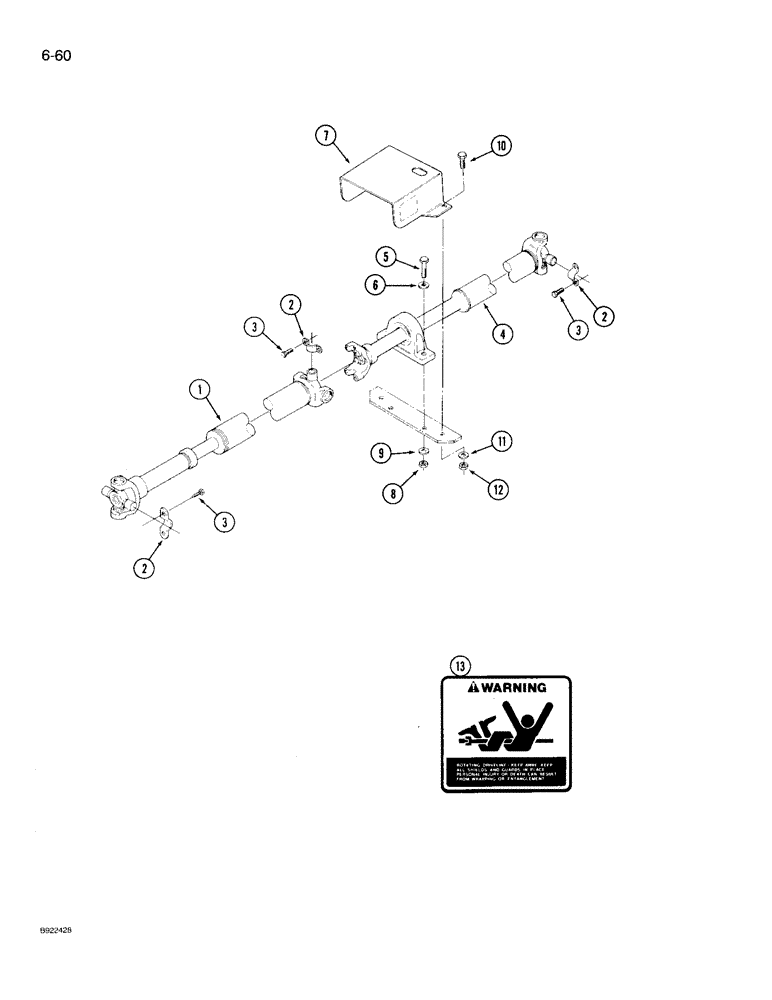

Запчасти Case IH 9210 (6-060) - PTO DRIVE SHAFT MOUNTING (06) - POWER TRAIN

1

90-7003T92

DRIVE SHAFT

- PTO front, clutch to rear PTO shaft, See Figure 6-062

1шт.

2

90-6682T1

CLAMP

RETAINER - drive shaft

6шт.

3

D137627

BOLT,Hex Flg, 5/16" - 24 x 19.05mm

- special

12шт.

4

90-6641T93

DRIVE SHAFT

- PTO rear, front PTO shaft to transfer case, See Figure 6-062

1шт.

5

413-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- hex, 5/8 NC x 2-3/4 inch

2шт.

6

25711R1

WASHER

- flat, 21/32 x 1-5/16 x 5/32 inch

2шт.

7

90-7451T2

SHIELD

- drive shaft

1шт.

8

425-1010

NUT,5/8"-11, G5

2шт.

9

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

2шт.

10

413-1020

BOLT,Hex, 5/8" - 11 x 1-1/4", Gr 5

2шт.

11

495-11066

WASHER,5/8", SAE

- flat, 21/32 x 1-5/16 x 3/32 inch

2шт.

12

425-1010

NUT,5/8"-11, G5

2шт.

13

2-7126T1

DECAL

- Warning, rotating driveline

2шт.
