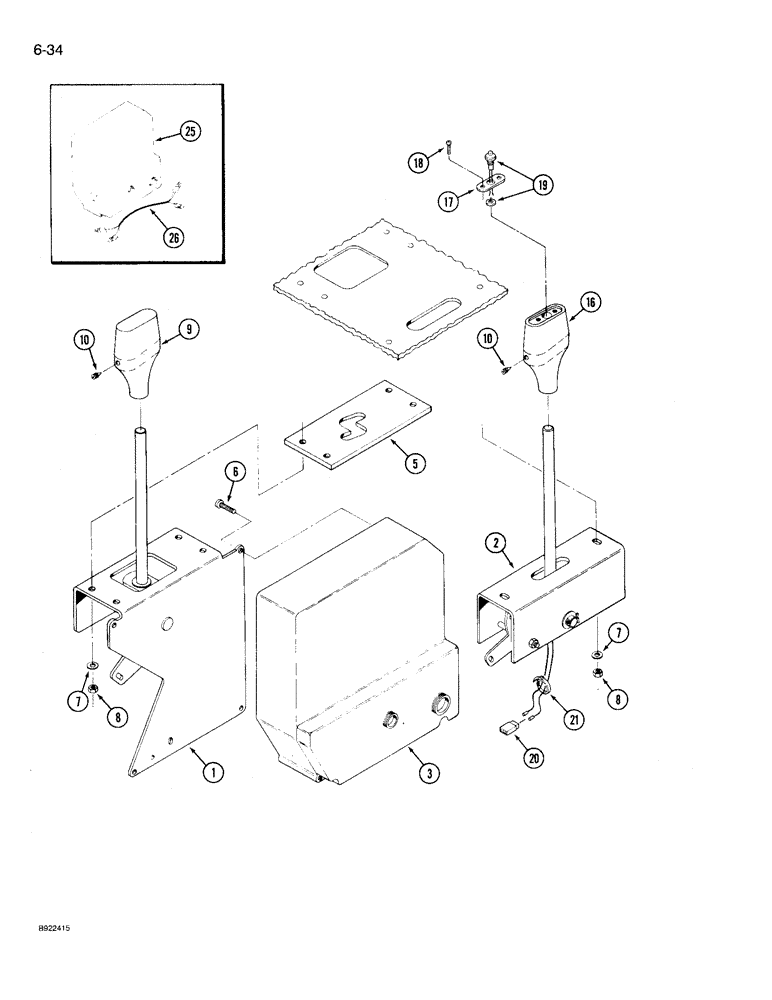

Запчасти Case IH 9210 (6-034) - TRANSMISSION SHIFT CONTROLS (06) - POWER TRAIN

1

60-6060T91

CONTROL

ASSEMBLY - mode, See Figure 6-036

1шт.

2

60-6483T92

CONTROL

ASSEMBLY - pulser, See Figure 6-038

1шт.

3

60-6478T2

CONTROL

LER - transmission, electronic

1шт.

Ref #3 - The new box has a hidden hourmeter

1шт.

3

60-6478T2R

REMAN ELECT CONTROL

9210, 9230, Both CASE IH STEIGER 4WD TRACTOR, LER - transmission, electronic

1шт.

3

60-6478T2C

CORE-ELECTRONIC CONT

Return Number

1шт.

5

60-6140T1

LARGE PLATE

PLATE - wear, mode

1шт.

6

19-1018

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - pan head tap, No. 10 NS x 3/4 inch

4шт.

7

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

6шт.

8

19-6082

JAM NUT

- hex lock, 1/4 inch NC

6шт.

9

60-6036T1

KNOB

KNOB - shift handle

1шт.

10

19-5798

SET SCREW

SCREW - set, No. 8 NC

2шт.

16

60-6488T1

BUTTON

KNOB - shift handle

1шт.

17

60-6480T1

LARGE PLATE

PLATE - retainer, switch

1шт.

18

260-1338

SELF-TAP SCREW,Cross Pan Hd, #6 x 1/2"

SCREW - pan head tap, No. 6-20 x 1/2 inch

2шт.

19

60-6482T2

IGNITION SWITCH

SWITCH - skip-shift

1шт.

20

60-6479T1

CONNECTION,ELECTRIC

CONNECTOR - wire

1шт.

21

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - nylon

2шт.

35-1918T91

KIT

- modulation, clutch (Prior to P.I.N. JCB0028400), order components, Includes: Ref. 25 & 26

1шт.

25

60-6798T1

BOX

CONTROLLER - transmission, electronic

1шт.

26

60-6801T1

CABLE

- adapter, solenoid

1шт.
