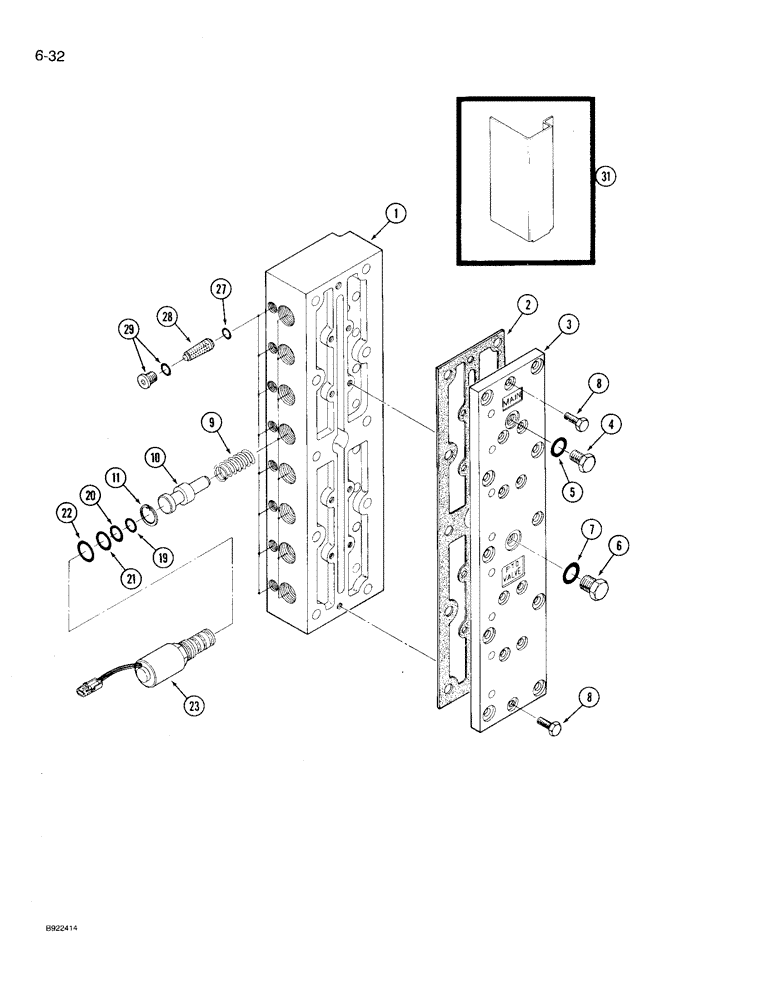

Запчасти Case IH 9210 (6-032) - TRANSMISSION ASSEMBLY, RANGE SELECTOR VALVE, WITH STEEL ENCASED SOLENOID COILS (CONTD) (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
90-7014T91
TRANSMISSION
TRANSMISSION ASSEMBLY - tractor
1шт.
Includes: Ref. 1 - 40 on Figure 6-004, 1 - 15 on Figure 6-006, 1 - 24 on Figure 6-008, 25 - 39 on Figure 6-010, 1 - 31 on Figure 6-012, 1 - 7 on Figure 6-014, 1 - 23 on Figure 6-016, 1 - 21 on Figure 6-018, 1 - 26 on Figure 6-020, 1 - 32 on Figure 6-022, 1 - 25 on Figure 6-024, 1 - 14 on Figure 6-026, 1 - 30 on Figure 6-030, and 1 - 31 on Figure 6-032.
1шт.
313686A1R
REMAN-TRANSMISSION
Remanufactured Transmission 4WD Powershift
1шт.
313686A1C
CORE-TRANSMISSION
Return Part Number
1шт.
33-1525T91
VALVE
VALVE ASSEMBLY - range selector, Includes: Ref. 1 - 31
1шт.
1
33-1529T1
VALVE BODY
BODY - valve, range selector
1шт.
2
33-1530T1
GASKET
GASKET - valve cover
1шт.
3
33-1531T1
COVER
COVER - body
1шт.
4
S1030S00F
PLUG
PLUG - oil ports, Includes: Ref. 5
1шт.
5
S1040S00F
O-RING
O-RING - plug
1шт.
6
S1390S00F
PLUG
PLUG - oil port, Includes: Ref. 7
1шт.
7
S1320S00F
O-RING
O-RING - plug
1шт.
8
413-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
BOLT - hex, 5/16 NC x 3/4 inch
10шт.
9
33-1532T1
SPRING
SPRING - spool
8шт.
10
33-1533T1
SPOOL
SPOOL - valve selector
8шт.
11
33-1534T1
RING, SNAP
RING SNAP RING - snap
8шт.
33-1535T1
SOLENOID
VALVE ASSEMBLY - solenoid, Includes: Ref. 19 - 23
8шт.
371737A1R
REMAN-SOLENOID
Reman for New PN 33-1535T1
8шт.
371737A1C
CORE-SOLENOID
Return Part Number
8шт.
33-1536T1
SEAL PACKAGE
KIT - seal, solenoid valve, Includes: Ref. 19 - 22
1шт.
19
NSS
NOT SOLD SEPARAT
O-RING - solenoid
1шт.
20
NSS
NOT SOLD SEPARAT
O-RING - solenoid
1шт.
21
NSS
NOT SOLD SEPARAT
O-RING - solenoid
1шт.
22
NSS
NOT SOLD SEPARAT
O-RING - solenoid
1шт.
23
NSS
NOT SOLD SEPARAT
VALVE - solenoid
1шт.
27
33-1537T1
O-RING
O-RING - seal, filter
8шт.
28
33-1538T1
FILTER
SCREEN - filter, conical
8шт.
29
33-1539T1
PLUG
PLUG - socket head, screen retainer
8шт.
31
50-3322T2
SHIELD
COVER - protective, harness
1шт.
Выбрано товаров: 29
