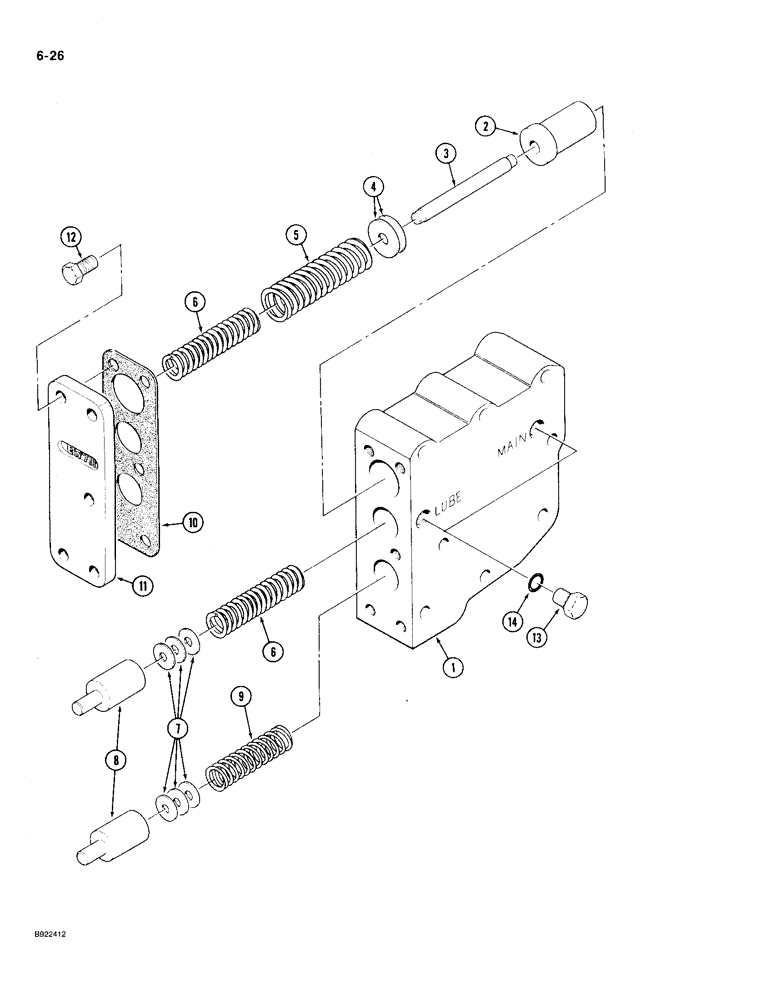

Запчасти Case IH 9210 (6-026) - TRANSMISSION ASSEMBLY, REGULATOR VALVE (CONTD) (06) - POWER TRAIN

90-7014T91

TRANSMISSION

TRANSMISSION ASSEMBLY - tractor

1шт.

Includes: Ref. 1 - 40 on Figure 6-004, 1 - 15 on Figure 6-006, 1 - 24 on Figure 6-008, 25 - 39 on Figure 6-010, 1 - 31 on Figure 6-012, 1 - 7 on Figure 6-014, 1 - 23 on Figure 6-016, 1 - 21 on Figure 6-018, 1 - 26 on Figure 6-020, 1 - 32 on Figure 6-022, 1 - 25 on Figure 6-024, 1 - 14 on Figure 6-026, 1 - 30 on Figure 6-030, and 1 - 31 on Figure 6-032.

1шт.

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift;

1шт.

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.

S7000S01F

VALVE

VALVE ASSEMBLY - regulator, Includes: Ref. 1 - 14

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - regulator valve

1шт.

2

S7030S01F

VALVE

VALVE - regulator

1шт.

Part of transmission rebuild kit P/N 35-1930T91.

1шт.

3

S7020S00F

STEM

ROD - pressure

1шт.

4

S7010S00F

SHIM,.039" Thk

SHIM, .039" Thk

1шт.

5

S7120S00F

SPRING

SPRING - compression

1шт.

6

S7050S00F

SPRING

SPRING - compression

2шт.

7

S7080S00F

SHIM,.031" Thk

SHIM, .031" Thk

1шт.

8

S7060S00F

VALVE

VALVE - lube

2шт.

9

S7070S00F

SPRING

SPRING - compression

1шт.

10

S7090S00F

GASKET

GASKET - regulator valve cover

1шт.

11

S7110S00F

COVER

COVER - valve body

1шт.

12

SM8120820

BOLT

BOLT - hex, 8 - 1.25 x 20 mm

5шт.

13

S1030S00F

PLUG

PLUG - oil ports, Includes: Ref. 14

2шт.

14

S1040S00F

O-RING

O-RING - plug

1шт.

35-1930T91

KIT

KIT rebuild, transmission, Includes: Ref. 2 and parts on Figures 6-016, 6-018, 6-020, 6-022 and all parts of 33-1559T1 gasket kit on Figure 6-028

1шт.
