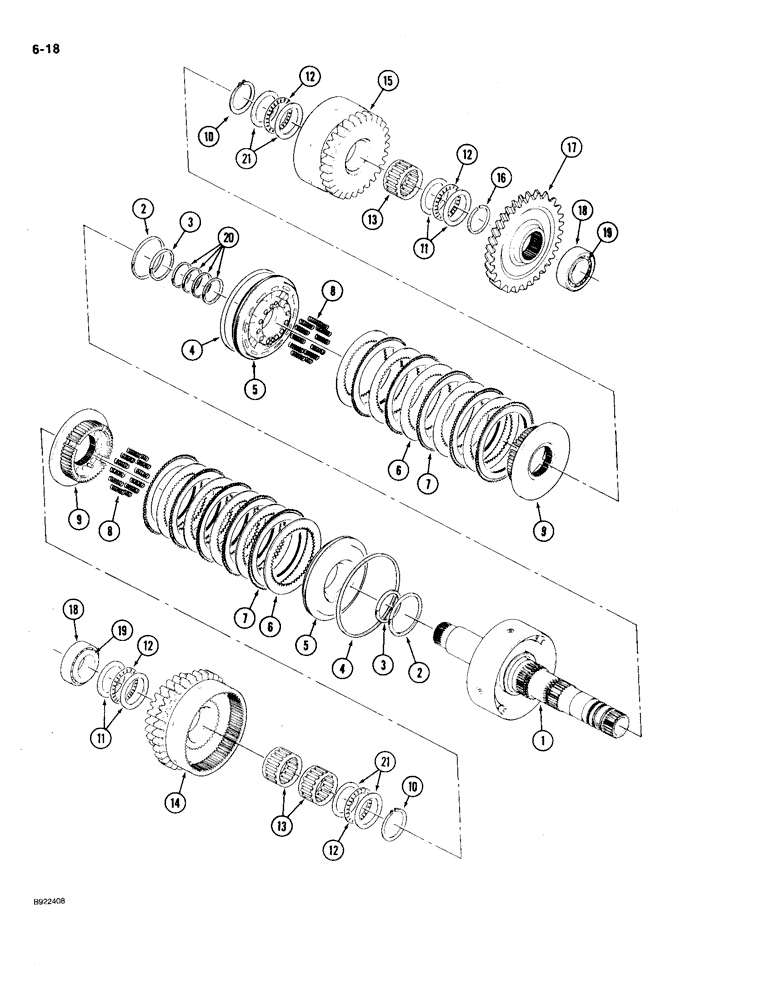

Запчасти Case IH 9210 (6-018) - TRANSMISSION ASSEMBLY, 7 INCH SECOND CLUTCH PACK (CONTD) (06) - POWER TRAIN

90-7014T91

TRANSMISSION

TRANSMISSION ASSEMBLY - tractor

1шт.

Includes: Ref. 1 - 40 on Figure 6-004, 1 - 15 on Figure 6-006, 1 - 24 on Figure 6-008, 25 - 39 on Figure 6-010, 1 - 31 on Figure 6-012, 1 - 7 on Figure 6-014, 1 - 23 on Figure 6-016, 1 - 21 on Figure 6-018, 1 - 26 on Figure 6-020, 1 - 32 on Figure 6-022, 1 - 25 on Figure 6-024, 1 - 14 on Figure 6-026, 1 - 30 on Figure 6-030, and 1 - 31 on Figure 6-032.

1шт.

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift;

1шт.

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.

S3000S01H

CLUTCH

CLUTCH PACK ASSEMBLY - 7 inch, second, Includes: Ref. 1 - 21

1шт.

1

S3900S01F

SHAFT ASSY.

SHAFT - drum

1шт.

Part of transmission rebuild kit P/N 35-1930T91.

1шт.

2

S2620S00F

RING

RING - piston

2шт.

3

S2610S00F

RING

RING - piston

2шт.

4

S2630S00F

RING

RING - sealing

2шт.

5

33-1521T1

PISTON

PISTON - clutch

2шт.

6

S2080S00F

CLUTCH DISC,2.4mm Thk

CLUTCH DISK PLATE - flat steel, 2.4 mm thick

1шт.

A total of six steel plates, Ref. 6, must be used.

1шт.

6

S2090S00F

CLUTCH DISC,2.1mm Thk

CLUTCH DISK PLATE - flat steel, 2.1 mm thick

1шт.

A total of six steel plates, Ref. 6, must be used.

1шт.

7

33-1518T1

NOTCHED DISK

PLATE - faced

6шт.

8

S2640S00F

SPRING

SPRING - return, piston

24шт.

9

S2850S00H

HUB

HUB - clutch

2шт.

Part of transmission rebuild kit P/N 35-1930T91.

1шт.

10

S2100S00F

RING, SNAP

RING SNAP RING - snap

2шт.

Part of transmission rebuild kit P/N 35-1930T91.

1шт.

11

S2200S00F

BEARING WASHER

WASHER - thrust, bearing (3.2 mm thick)

4шт.

12

S2230S00F

BEARING

BEARING - thrust

4шт.

13

S2210S00F

BEARING, ROLLER

BEARING - roller

3шт.

14

S3040S00F

PINION

GEAR - counter (34 Tooth/26 Tooth)

1шт.

15

S2280S00F

PINION

GEAR - drive (29 Tooth)

1шт.

16

S2240S00F

RING, SNAP

RING SNAP RING - retaining

1шт.

17

S3030S01F

PINION

GEAR - pump driven (31 Tooth)

1шт.

Part of transmission rebuild kit P/N 35-1930T91.

1шт.

18

529208R1

BEARING ASSY,2.1648" ID x 3.7402" OD

CUP - bearing

2шт.

19

529207R91

BEARING ASSY,54.99mm ID x 29mm W

CONE - bearing

2шт.

20

S3070S00F

RING

RING - sealing

4шт.

21

S2220S00F

THRUST WASHER

WASHER - thrust, bearing (2.4 mm thick)

4шт.

Part of transmission rebuild kit P/N 35-1930T91.

1шт.

35-1930T91

KIT

KIT - rebuild, transmission, Includes: Ref. 1, 9, 10, 17 and 21 and parts on Figures 6-016, 6-020, 6-022, 6-026 and all parts of 33-1559T1 gasket kit on Figure 6-028

1шт.
