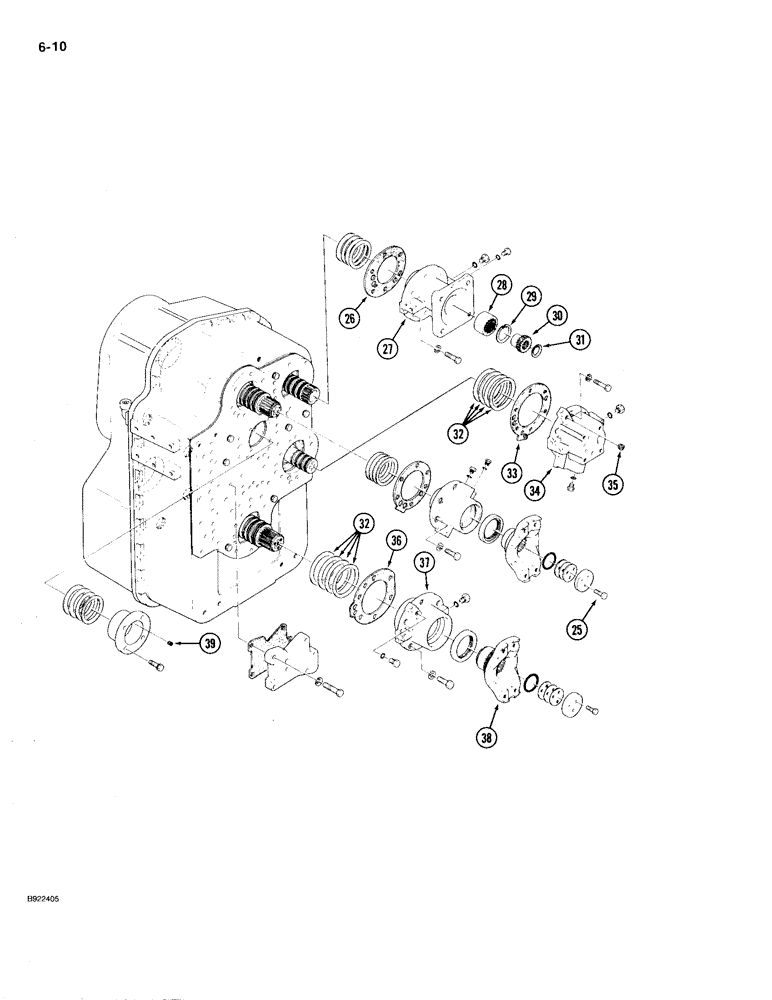

Запчасти Case IH 9210 (6-010) - TRANSMISSION ASSEMBLY (CONTD) (06) - POWER TRAIN

90-7014T91

TRANSMISSION

TRANSMISSION ASSEMBLY - tractor

1шт.

Includes: Ref. 1 - 40 on Figure 6-004, 1 - 15 on Figure 6-006, 1 - 24 on Figure 6-008, 25 - 39 on Figure 6-010, 1 - 31 on Figure 6-012, 1 - 7 on Figure 6-014, 1 - 23 on Figure 6-016, 1 - 21 on Figure 6-018, 1 - 26 on Figure 6-020, 1 - 32 on Figure 6-022, 1 - 25 on Figure 6-024, 1 - 14 on Figure 6-026, 1 - 30 on Figure 6-030, and 1 - 31 on Figure 6-032.

1шт.

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift;

1шт.

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.

25

SM8134035

BOLT

BOLT - hex, 10 - 1.25 x 35 mm, class 10.9

3шт.

26

33-1468T1

GASKET

GASKET - support, pump

1шт.

27

33-1514T1

HOLDER

SUPPORT - oil pump

1шт.

28

33-1444T1

COUPLING

COUPLING - pump adapter

1шт.

29

33-1445T1

RING, SNAP

RING SNAP RING - snap

1шт.

30

33-1515T1

ADAPTER

ADAPTER - pump drive

1шт.

31

33-1517T1

RING, SNAP

RING SNAP RING - snap

1шт.

32

33-1460T1

SHIM

SHIM - bearing, 0.10 mm thick

1шт.

32

33-1461T1

SHIM

SHIM - bearing, 0.30 mm thick

1шт.

32

33-1462T1

SHIM

SHIM - bearing, 0.50 mm thick

1шт.

32

33-1463T1

SHIM

SHIM - bearing, 0.70 mm thick

1шт.

32

33-1475T1

SHIM

SHIM - bearing, 0.15 mm thick

1шт.

33

33-1433T1

GASKET

GASKET - clutch collector

1шт.

34

33-1438T1

CLUTCH

COLLECTOR - clutch

1шт.

35

STX99700F

PLUG

PLUG - socket head

1шт.

36

33-1426T1

GASKET

GASKET - bearing retainer

1шт.

37

33-1427T1

BEARING CARRIER

RETAINER - bearing

1шт.

38

33-1430T1

FORK

YOKE - output, front, 6C

1шт.

39

33-1439T1

PLUG

PLUG - orifice

2шт.
