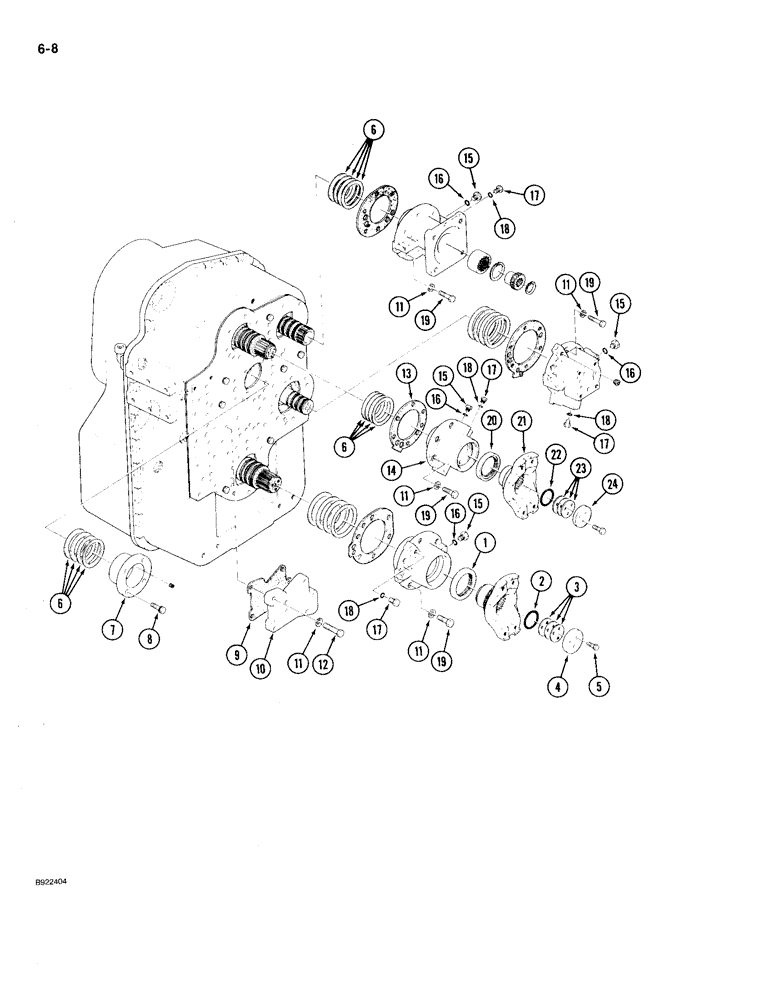

Запчасти Case IH 9210 (6-008) - TRANSMISSION ASSEMBLY (CONTD) (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
90-7014T91
TRANSMISSION
TRANSMISSION ASSEMBLY - tractor
1шт.
Includes: Ref. 1 - 40 on Figure 6-004, 1 - 15 on Figure 6-006, 1 - 24 on Figure 6-008, 25 - 39 on Figure 6-010, 1 - 31 on Figure 6-012, 1 - 7 on Figure 6-014, 1 - 23 on Figure 6-016, 1 - 21 on Figure 6-018, 1 - 26 on Figure 6-020, 1 - 32 on Figure 6-022, 1 - 25 on Figure 6-024, 1 - 14 on Figure 6-026, 1 - 30 on Figure 6-030, and 1 - 31 on Figure 6-032.
1шт.
313686A1R
REMAN-TRANSMISSION
Remanufactured Transmission 4WD Powershift;
1шт.
313686A1C
CORE-TRANSMISSION
Return Part Number
1шт.
1
33-1428T1
OIL SEAL
SEAL - output shaft
1шт.
2
33-1422T1
O-RING
O-RING - yoke sealing
1шт.
3
33-1450T1
SHIM
SHIM - yoke, 0.10 mm thick
1шт.
3
33-1451T1
SHIM
SHIM - yoke, 0.30 mm thick
1шт.
4
33-1432T1
WASHER
WASHER - yoke retainer
1шт.
5
SM8134235
BOLT
BOLT - hex, 12 mm - 1.25 x 35 mm
3шт.
6
33-1456T1
SHIM
SHIM - bearing, 0.10 mm thick
1шт.
6
33-1457T1
SHIM
SHIM - bearing, 0.30 mm thick
1шт.
6
33-1458T1
SHIM
SHIM - bearing, 0.50 mm thick
1шт.
6
33-1459T1
SHIM
SHIM - bearing, 0.70 mm thick
1шт.
6
33-1474T1
SHIM
SHIM - bearing, 0.15 mm thick
1шт.
7
33-1437T1
RETAINER
RETAINER - bearing
1шт.
8
SM8124050
BOLT
BOLT - hex, 10 - 1.25 x 50 mm
4шт.
9
S1610S00F
GASKET
GASKET - oil supply plate
1шт.
10
S1600S00F
LARGE PLATE
PLATE, LARGE PLATE - oil supply
1шт.
11
892-11010
LOCK WASHER,M10
LOCK WASHER, M10
31шт.
12
SM8124070
BOLT
BOLT - hex, 10 - 1.25 x 70 mm
7шт.
13
33-1440T1
GASKET
GASKET - cover, oil supply
1шт.
14
33-1441T1
HOUSING
COVER - oil supply
1шт.
15
S1390S00F
PLUG
PLUG - oil port, Includes: Ref. 16
8шт.
16
S1320S00F
O-RING
O-RING - plug
1шт.
17
S1030S00F
PLUG
PLUG - oil ports, Includes: Ref. 18
5шт.
18
S1040S00F
O-RING
O-RING - plug
1шт.
19
SM8124060
BOLT
BOLT - hex, 10 - 1.25 x 60 mm
24шт.
20
33-1412T1
OIL SEAL
SEAL - input yoke
1шт.
21
33-1409T1
LINKAGE YOKE
YOKE - input
1шт.
22
33-1414T1
O-RING,0.21" Thk x 1.725" ID, -327, Cl 5, 75 Duro
O-RING - yoke sealing
1шт.
23
33-1464T1
SHIM
SHIM - bearing, 0.10 mm thick
1шт.
23
33-1465T1
SHIM
SHIM - bearing, 0.30 mm thick
1шт.
23
33-1466T1
SHIM
SHIM - bearing, 0.70 mm thick
1шт.
24
33-1413T1
WASHER
WASHER - yoke retainer
1шт.
Выбрано товаров: 35
