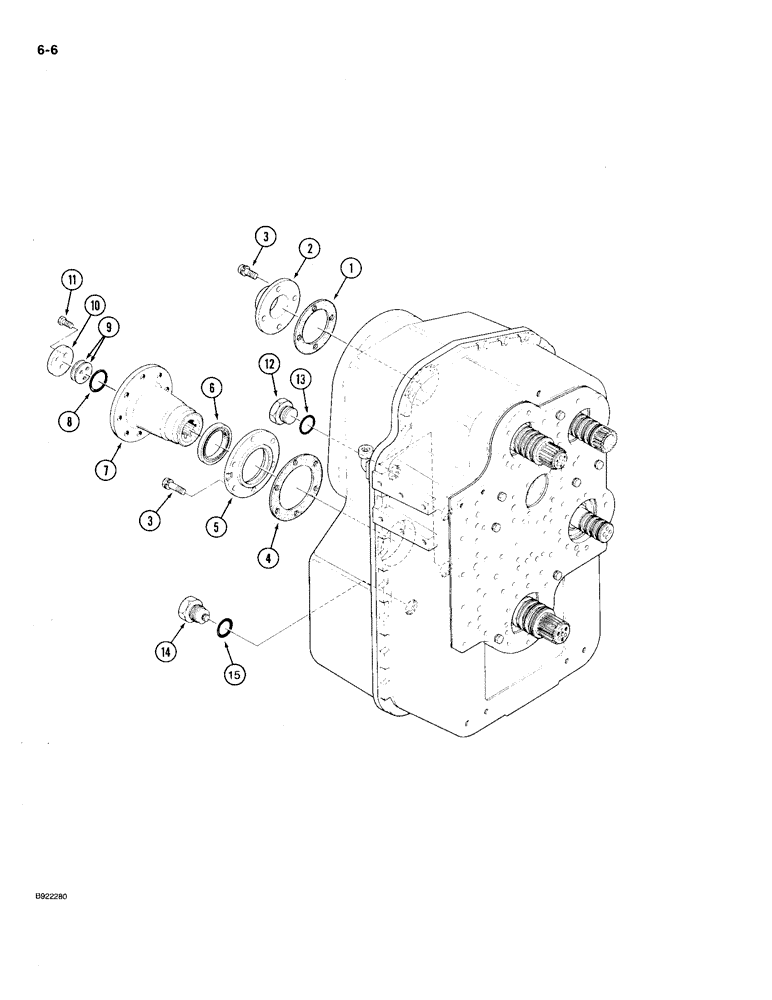

Запчасти Case IH 9210 (6-006) - TRANSMISSION ASSEMBLY (CONTD) (06) - POWER TRAIN

90-7014T91

TRANSMISSION

TRANSMISSION ASSEMBLY - tractor

1шт.

Includes: Ref. 1 - 40 on Figure 6-004, 1 - 15 on Figure 6-006, 1 - 24 on Figure 6-008, 25 - 39 on Figure 6-010, 1 - 31 on Figure 6-012, 1 - 7 on Figure 6-014, 1 - 23 on Figure 6-016, 1 - 21 on Figure 6-018, 1 - 26 on Figure 6-020, 1 - 32 on Figure 6-022, 1 - 25 on Figure 6-024, 1 - 14 on Figure 6-026, 1 - 30 on Figure 6-030, and 1 - 31 on Figure 6-032.

1шт.

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift;

1шт.

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.

1

33-1470T1

GASKET

GASKET - cover, PTO shaft

1шт.

2

33-1442T1

COVER

COVER - PTO shaft (Without PTO)

1шт.

3

SM8124230

BOLT

BOLT - hex, 12 - 1.25 x 30 mm

10шт.

4

33-1417T1

GASKET

GASKET - bearing retainer

1шт.

5

33-1418T1

RETAINER

RETAINER - bearing

1шт.

6

33-1428T1

OIL SEAL

SEAL - output shaft

1шт.

7

33-1419T1

YOKE

UNIVERSAL JOINT YOKE YOKE - output, rear

1шт.

8

33-1422T1

O-RING

O-RING - yoke sealing

1шт.

9

33-1450T1

SHIM

SHIM - yoke, 0.10 mm thick

1шт.

9

33-1451T1

SHIM

SHIM - yoke, 0.30 mm thick

1шт.

10

33-1432T1

WASHER

WASHER - yoke retainer

1шт.

11

SM8134235

BOLT

BOLT - hex, 12 - 1.25 x 35 mm

3шт.

12

S1010S00F

PLUG, DRAIN

PLUG - hex, housing, Includes: Ref. 13

3шт.

13

S1080S00F

O-RING

O-RING - plug

1шт.

14

S1090S00F

PLUG

PLUG - magnetic, Includes: Ref. 15

1шт.

15

S1080S00F

O-RING

O-RING - plug

1шт.
