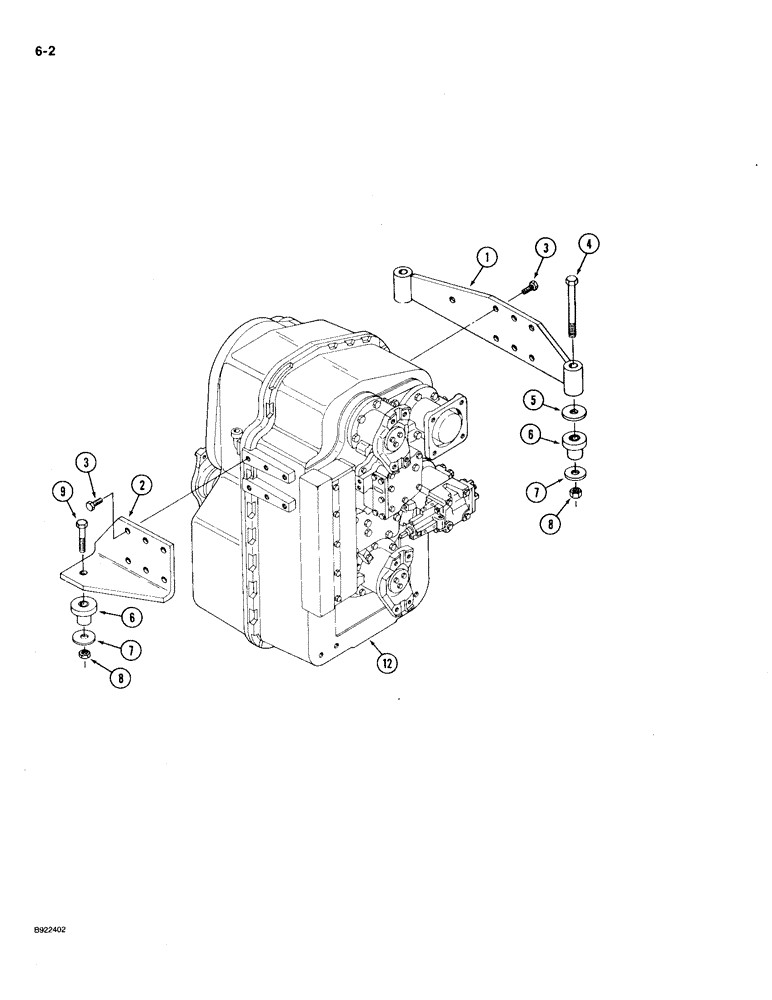

Запчасти Case IH 9210 (6-002) - TRANSMISSION MOUNTING (06) - POWER TRAIN

1

90-7087T1

SUPPORT

MOUNT - transmission, left

1шт.

2

90-6527T1

ANCHOR

MOUNT - transmission, right

1шт.

3

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

BOLT, Hex, 5/8"-11 x 1 1/2", G5, Full Thd

12шт.

4

413-12104

BOLT,Hex, 3/4" - 10 x 6-1/2", Gr 5

BOLT - hex, 3/4 NC x 6-1/2 inch

2шт.

5

19-6150

WASHER,19.84mm ID x 95.25mm OD x 4.78mm Thk

WASHER - flat, 3/4 x 3-3/4 x 3/16 inch

2шт.

6

47-4172

SHOCK ABSORBER

MOUNT - rubber, isolator

3шт.

7

19-5781

WASHER

WASHER - flat, 3/4 x 2-3/4 x 5/16 inch

3шт.

8

131-1205

LOCK NUT,3/4"-10, GC

NUT, LOCK, 3/4"-10, GC

3шт.

9

413-1264

BOLT,Hex, 3/4" - 10 x 4", Gr 5

BOLT - hex, 3/4 NC x 4 inch

1шт.

12

90-7014T91

TRANSMISSION

TRANSMISSION ASSEMBLY - tractor, See Figures 6-004 - 6-030

1шт.

12

313686A1R

REMAN-TRANSMISSION

Remanufactured Transmission 4WD Powershift;

1шт.

12

313686A1C

CORE-TRANSMISSION

Return Part Number

1шт.
