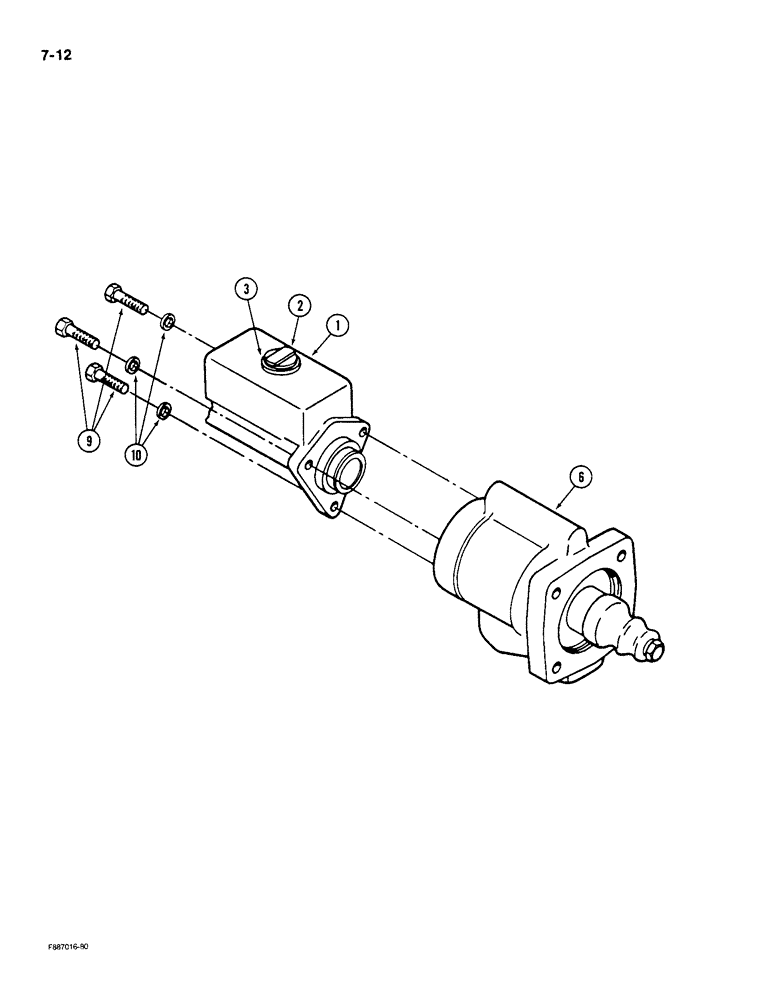

Запчасти Case IH 9190 (7-12) - MASTER CYLINDER ASSEMBLY (07) - BRAKES

90-2252T91

VALVE, BRAKE

CYLINDER ASSEMBLY - master, with power assist, Includes: Ref. 1 - 10

1шт.

1

2-4004T1

CYLINDER

ASSEMBLY - master, Includes: Ref. 1 - 3

1шт.

1

2-3824T1

VALVE

KIT - repair, master cylinder

1шт.

2

2-1210T1

FILLER CAP

CAP - cylinder

1шт.

3

2-1206

GASKET

- filler cap

1шт.

6

2-4003T1

UNIT

POWER ASSIST ASSEMBLY - brake, Includes: kit

1шт.

2-3823T1

SEAL KIT

KIT - repair, power assist

1шт.

9

19-799

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 8

- hex, 3/8 NC x 1-1/4 inch, Grade 8

3шт.

10

492-11038

LOCK WASHER,3/8"

3шт.
