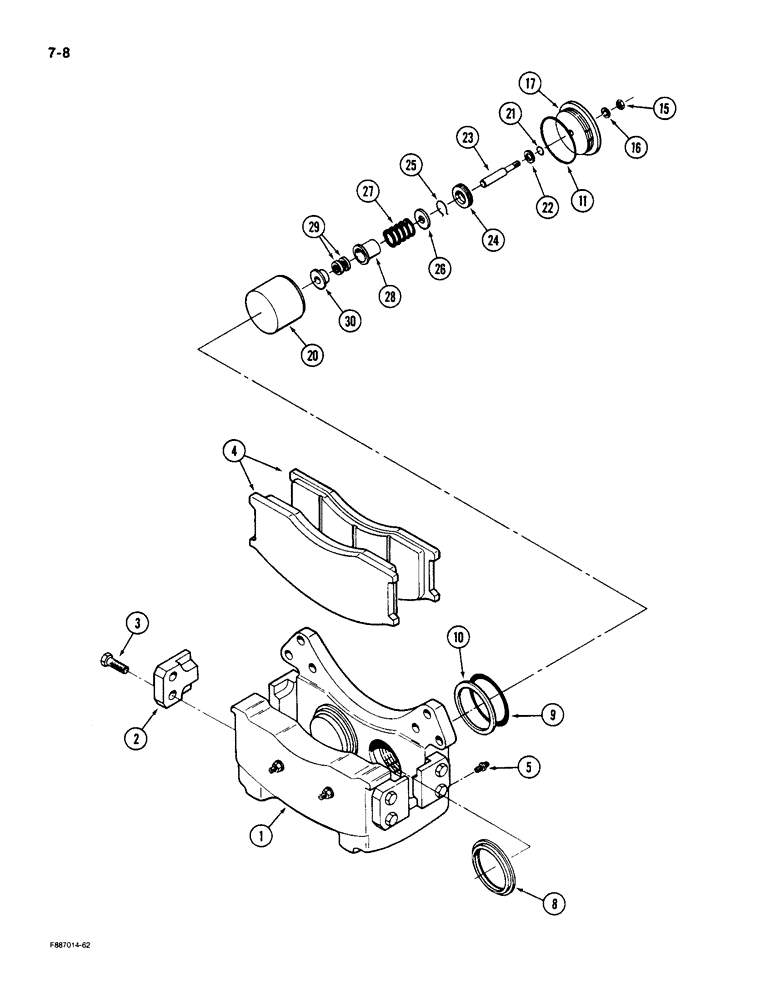

Запчасти Case IH 9190 (7-08) - CALIPER ASSEMBLY (07) - BRAKES

90-2350T91

BRAKE ASSY.

CALIPER ASSEMBLY - brake, Includes: Ref. 1 - 30

1шт.

1

NSS

NOT SOLD SEPARAT

CALIPER - brake

1шт.

2

N7962

PLATE

- retainer, brake pad

4шт.

3

19-822

BOLT,Hex, 5/8" - 11 x 1 1/2", Gr 8, Full Thd

- hex, 5/8 NC x 1-1/2 inch Grade 8

8шт.

4

47-4734T1

PAD

- brake

2шт.

5

47-4742

SCREW

- bleeder, brake

2шт.

90-2404T1

SEAL KIT

KIT - seal, brake caliper, Includes: Ref. 8 - 11

4шт.

8

NSS

NOT SOLD SEPARAT

BOOT - dust, piston

4шт.

9

NSS

NOT SOLD SEPARAT

O-RING - seal

4шт.

10

NSS

NOT SOLD SEPARAT

RING - backup

4шт.

11

NSS

NOT SOLD SEPARAT

O-RING - seal

4шт.

15

19-88

NUT,5/16"-24, G5

- hex, 5/16 inch NC

4шт.

16

193-67

LOCK WASHER,Int Tooth, 5/16"

WASHER, LOCK, Int Tooth, 5/16"

4шт.

17

90-1776T1

HEAD

- cylinder

2шт.

90-2402T91

PISTON

ASSEMBLY - brake, Includes: Ref. 20 - 30

4шт.

20

NSS

NOT SOLD SEPARAT

PISTON - brake

4шт.

21

90-2403T1

O-RING

- seal, return pin

4шт.

22

90-2401T1

WASHER

- retaining

4шт.

23

90-2394T1

PIN

- return

4шт.

24

90-2393T1

OIL SEAL

RING - threaded

4шт.

25

90-2392T1

OIL SEAL

RING - retainer

4шт.

26

90-2395T1

RETAINER

- spring

4шт.

27

90-2391T1

SPRING

- return

4шт.

28

90-2396T1

GUIDE

- spring

4шт.

29

90-2399T1

GRIP

- pin

8шт.

30

90-2390T1

GUIDE

- spring

4шт.
